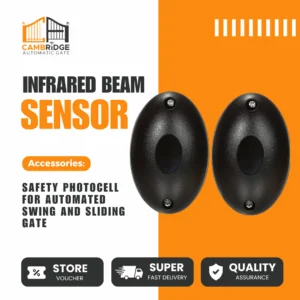

Cambridge Infrared Beam Sensor (HW-01)

The Cambridge Infrared Beam Sensor (HW-01) is a high-precision, active infrared safety sensor designed to provide a critical layer of protection for automated gate and door systems. Known as a “Photocell,” this device acts as a non-contact safety barrier that detects any obstruction in the gate’s path. Whether it is a vehicle, a pedestrian, a child, or a pet, the Cambridge Infrared Beam Sensor (HW-01) ensures that the gate stops or reverses immediately upon detecting an object, preventing costly property damage and serious personal injury. It is an indispensable accessory for any professional sliding or swing gate installation, bridging the gap between automation convenience and essential safety.

High-Accuracy Infrared Detection Technology

The Cambridge Infrared Beam Sensor (HW-01) operates using a point-to-point infrared (IR) beam system consisting of two main units: a transmitter and a receiver. The transmitter emits a continuous, invisible infrared beam that is captured by the receiver located on the opposite side of the gate opening. When this beam is “broken” or interrupted by an object, the receiver instantly triggers a signal to the gate’s control board to halt operation. This technology is designed to be highly responsive, with a millisecond reaction time, ensuring that the safety mechanism is activated the moment an obstruction enters the danger zone.

Extended Range and Signal Reliability

Engineered for versatility, the Cambridge Infrared Beam Sensor (HW-01) offers a reliable operating range of up to 15 to 20 meters. This makes it suitable for various applications, from standard residential driveways to wide industrial entrances. To ensure consistent performance, the sensor features an advanced optical lens and high-frequency modulation. This allows the beam to remain stable and avoid “false triggers” caused by heavy sunlight, reflections, or interference from other electronic devices. Even at its maximum distance, the Cambridge Infrared Beam Sensor (HW-01) maintains a sharp, focused beam for 24/7 monitoring.

All-Weather Waterproof Construction

As safety sensors are installed outdoors and often near ground level, durability is a primary focus. The Cambridge Infrared Beam Sensor (HW-01) is housed in a rugged, UV-stabilized casing with an IP55 weather protection rating. This ensures that the internal delicate electronics are fully shielded against heavy rain, dust, windborne debris, and intense sun exposure. The housing is designed to prevent moisture buildup and fogging on the internal lens, which can sometimes plague lower-quality sensors during temperature shifts. This robust build guarantees that your gate’s safety system remains operational in all seasons and climates.

Intelligent Design and Easy Alignment

One of the key advantages for installers is the user-friendly design of the Cambridge Infrared Beam Sensor (HW-01). Achieving perfect alignment between the transmitter and receiver is essential for a stable signal. The Cambridge Infrared Beam Sensor (HW-01) features an internal adjustment mechanism that allows the lens to be fine-tuned to compensate for uneven mounting surfaces or slightly misaligned pillars. It also includes a clear LED status indicator that provides visual feedback: a steady light confirms a successful link, while a flashing or off state indicates a blockage or misalignment. This simplifies the installation process and makes future maintenance checks quick and easy.

Essential Safety Compliance and Reliability

Integrating the Cambridge Infrared Beam Sensor (HW-01) into an automation system is often a legal or insurance requirement in many regions to prevent accidents. The sensor acts as a fail-safe mechanism; it is designed with a Normally Closed (NC) and Normally Open (NO) relay output, making it compatible with almost all gate motor brands. If the power to the sensors is cut or the wire is damaged, the gate will default to a safe mode, preventing movement until the safety circuit is restored. This ensures that the property owner is protected from liability and that the entrance remains safe for all users.

📌 KEY FEATURES

• Active Infrared Point-to-Point System: Reliable and invisible safety barrier.

• 15-20 Meter Operating Range: Suitable for narrow and wide gate openings.

• IP55 Waterproof Rating: Durable protection against rain, dust, and environmental stress.

• Universal Compatibility: Works with 12V-24V AC/DC power inputs from any control board.

• Internal Alignment Assistance: Adjustable lens for easier setup on various pillars.

• Low Power Consumption: Minimal drain on the gate motor’s power supply.

• Anti-Sunlight Interference: Optical filters to prevent false signals from bright light.

• Compact and Discrete Design: Small black housing that blends into the gate architecture.

📌 BENEFITS The Cambridge Infrared Beam Sensor (HW-01) provides the ultimate peace of mind for homeowners and business managers. Its primary benefit is the prevention of accidents, which can be life-saving in environments with children or pets. For vehicle owners, it prevents the gate from closing on a car’s bodywork, saving thousands in repair costs. The high-quality construction means the sensors require very little attention once installed, providing years of invisible, consistent protection. It is a cost-effective safety investment that completes any high-end gate automation project.

📌 APPLICATIONS

• Residential Sliding Gates: Protecting family vehicles and pedestrians.

• Commercial Entry Points: Safety monitoring for high-traffic office park gates.

• Industrial Warehouse Entrances: Managing safe passage for trucks and forklifts.

• Garage Door Safety: Preventing the door from closing on a vehicle’s hood.

• Public Parking Barriers: Ensuring the boom arm doesn’t descend on a car.

• Security Alarms: Can be used as a simple perimeter “trip-wire” alert system.

📌 CONCLUSION The Cambridge Infrared Beam Sensor (HW-01) is a fundamental safety component for the modern automated world. By combining advanced infrared precision with a rugged, weatherproof design, it ensures that your gate operates intelligently and safely at all times. Whether you are installing a new system or upgrading an existing one, the Cambridge Infrared Beam Sensor (HW-01) offers the reliability and performance needed to protect your assets and loved ones. It is a professional-grade accessory that makes every gate cycle a safe and secure experience.
