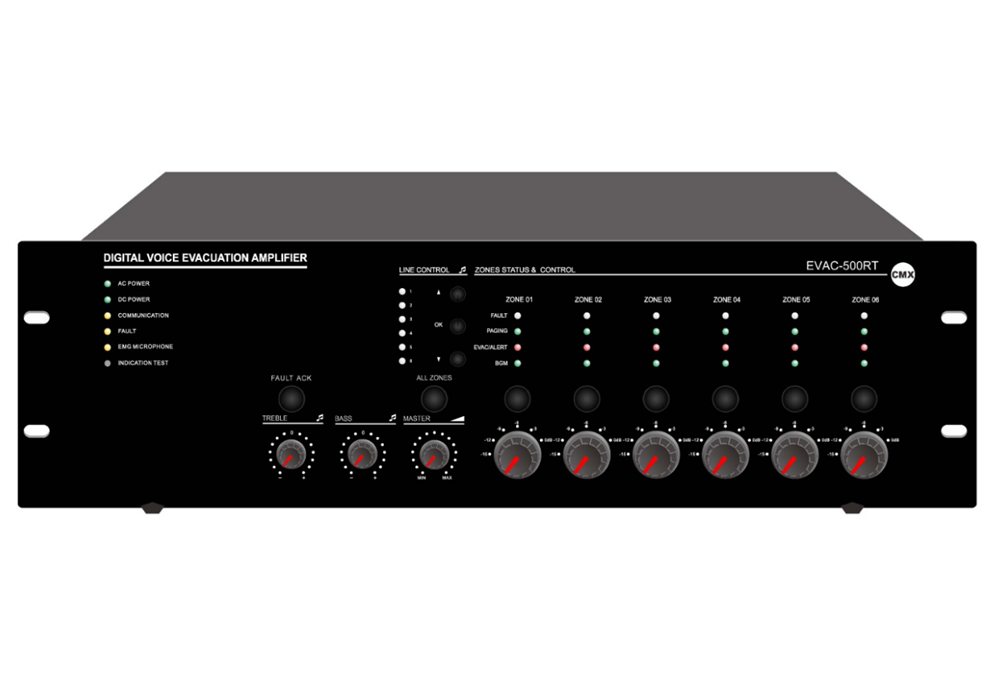

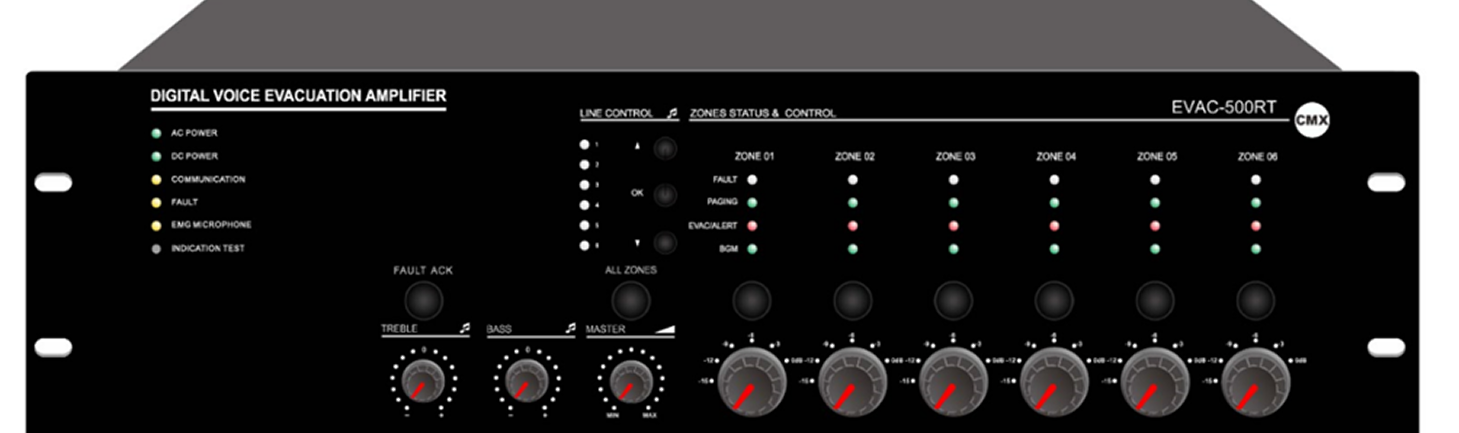

The CMX EVAC-500RT is a professional 6-zone voice evacuation router featuring a built-in 500W Class-D amplifier, engineered for life safety and emergency communication systems compliant with EN54-16 standards. Designed for mission-critical applications, it delivers reliable emergency voice broadcasting, intelligent zone management, and seamless integration with fire alarm systems.

The unit provides 6 independent speaker zone outputs with individual volume control, allowing emergency announcements and live paging to be directed to specific zones or broadcast throughout the entire building. It receives audio sources and emergency fire alarm messages directly from the master controller, ensuring fast and dependable emergency communication during critical situations.

To maximize system reliability, the EVAC-500RT features A/B speaker line low-impedance supervision, continuously monitoring speaker circuits for faults. If the internal amplifier experiences a fault, the system automatically switches to a standby amplifier, ensuring uninterrupted emergency operation. An extension amplifier connector allows future system expansion, while AC mains and DC battery operation provide continuous functionality during power failures.

Certified to EN54-16, the CMX EVAC-500RT is ideal for airports, hospitals, hotels, shopping malls, office buildings, educational institutions, factories, transportation terminals, stadiums, and other commercial or public facilities requiring dependable emergency voice evacuation and public address systems.

Key Features

• EN54-16 certified voice evacuation router
• Built-in 500W high-efficiency Class-D amplifier
• 6 independent speaker zone outputs
• Individual zone volume control
• Receives audio sources and fire alarm messages from the master controller
• A/B speaker line low-impedance supervision
• Automatic standby amplifier changeover during faults
• Extension amplifier connector for system expansion
• Supports emergency voice evacuation and public address
• AC mains and DC battery operation
• High speech intelligibility for emergency announcements
• Ideal for commercial and life safety applications
