The CMX PA-6000WP is a professional 6-zone remote control panel designed for CMX PA-6000 series matrix amplifiers. It allows users to conveniently control zone volume and select different audio sources from a remote location.

The panel features dedicated Line and Microphone inputs, along with audio source selection and volume control. It communicates with the matrix amplifier through CAT6 cable and receives power directly from the amplifier, making installation simple and efficient.

With support for up to 6 remote control panels per matrix amplifier, the PA-6000WP is suitable for multi-zone public address and background music systems in hotels, restaurants, offices, schools, retail spaces, conference rooms, and other commercial environments.

Key Features

• Supports control of up to 6 audio zones
• Remote volume control and audio source selection

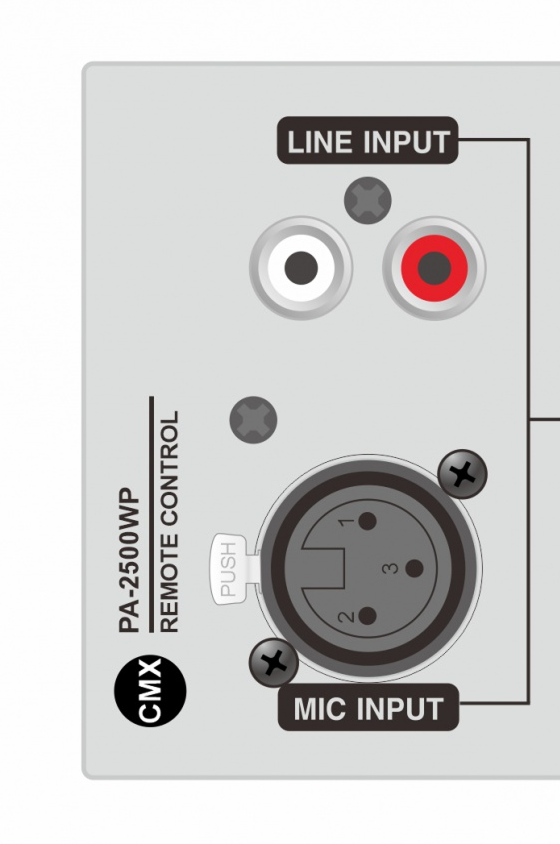

• Built-in Line input – 200 mV / 15 kΩ
• Built-in Microphone input – 30 mV / 1 kΩ
• 20 Hz–20 kHz frequency response
• >70 dB signal-to-noise ratio
• <1% THD at RMS, 1 kHz
• CAT6 communication with transmission distance up to 999 m
• Supports up to 6 remote panels per matrix amplifier
• 24V DC power supplied directly from the amplifier
