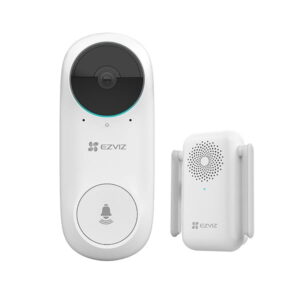

Ezviz CS-DB2C Kit Wire-Free Video Doorbell with Chime

DB2C

Installation Parameters

• Supported Hole Diameter16.5 to 50 mm (0.65 to 1.97 inch)
• Supported Door Diameter35 to 105 mm (1.38 to 4.13 inch)

Camera Parameters

• Sensor1/3″ Progressive Scan CMOS
• Lens2.0 mm @ F2.2, visual angle (diagonal):155°
• Day/Night SwitchICR infrared filter
• IR DistanceMax. 5m
• Max. Resolution1080p / 2MP
• Video Frame Rate15fps

PIR Detection

• Angle110°
• DistanceMax. 6m (20 ft)
• SensitivityAdjustable

Interface

• Storage InterfaceMicroSD card slot (max. 256 GB)
• Audio InputBuilt-in high sensitivity microphone
• Audio OutputBuilt-in high-power speaker
• ButtonsDoorbell button, power button, Screen wake up button

Network

• Face DetectionDoes not support
• Intelligence AlarmPIR motion detection
• ProtocolEZVIZ Cloud Proprietary Protocol
• Video IntercomLocal and remote video intercom
• General FunctionCloud video encryption and image encryption

Wireless

• Wi-Fi StandardIEEE802.11b, 802.11g, 802.11n
• Frequency Range2.4 GHz ~ 2.4835 GHz
• Channel BandwidthSupports 20 MHz
• Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Transmission Rate11b: 11Mbps, 11g :54Mbps, 11n :150Mbps
