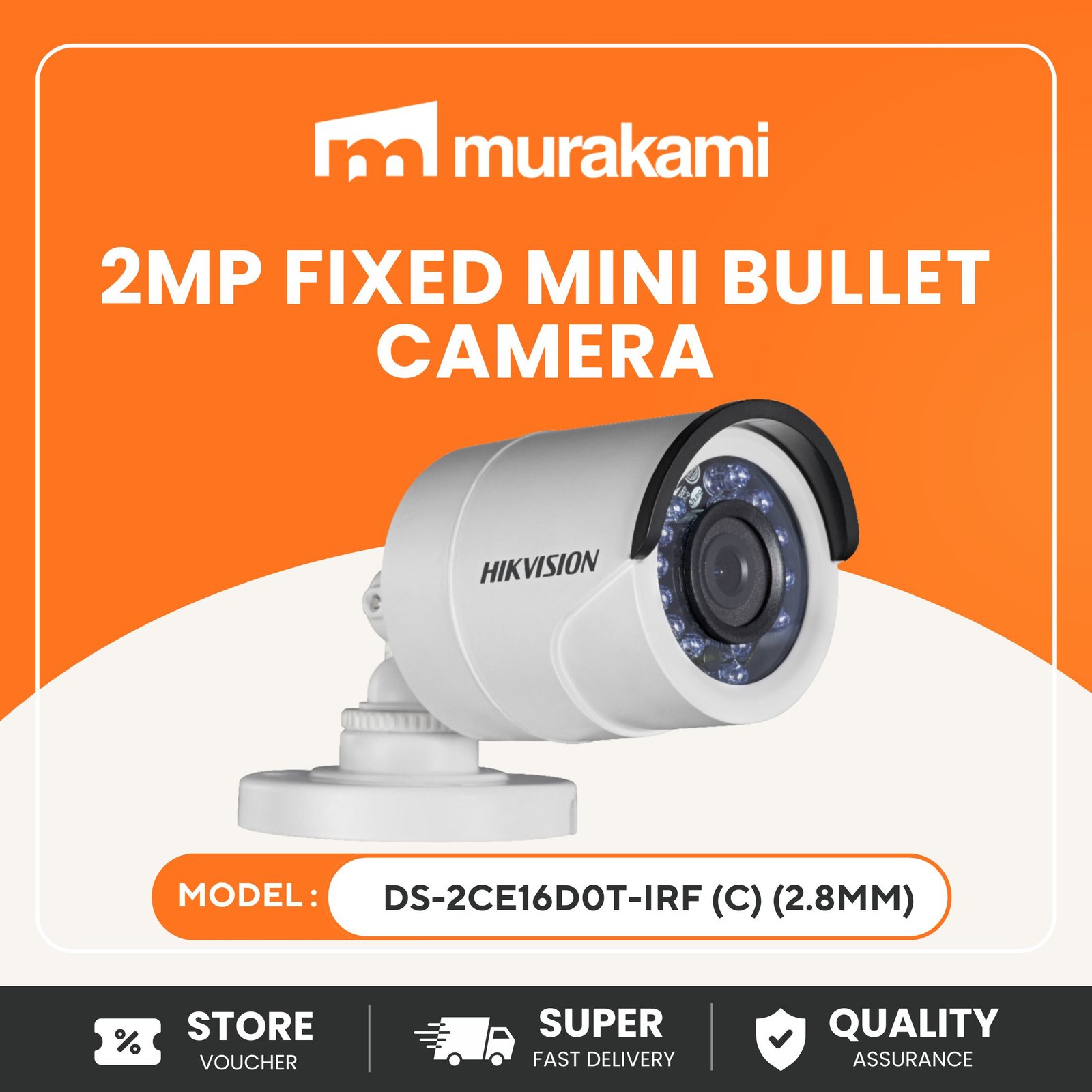

The Hikvision DS-2CE16D0T-IRF (C) (2.8mm) is a reliable and cost-effective 2MP Full HD analog bullet camera designed for entry-level surveillance applications. It delivers clear 1080p video quality, strong infrared night vision, and durable weatherproof protection, making it an ideal solution for homes, small businesses, retail shops, and general outdoor monitoring.
Built with Hikvision’s proven imaging technology, this camera provides stable performance and simple installation while maintaining essential security features needed for everyday surveillance systems.
Clear 2MP Full HD Video Quality
The Hikvision DS-2CE16D0T-IRF camera is equipped with a 2MP CMOS image sensor, delivering sharp and detailed video output at Full HD resolution.
Imaging Specifications:
- Maximum resolution: 1920 × 1080 (Full HD 1080p)
- Low-light performance: 0.01 Lux @ F2.0 (AGC ON)
- 0 Lux with IR illumination
- Fast shutter speed up to 1/50,000s
- Day & Night mode with IR Cut Filter (ICR)
This ensures clear visibility of people, objects, and movements in both day and night conditions.
Wide-Angle 2.8mm Lens for Better Coverage
The Hikvision DS-2CE16D0T-IRF 2.8mm fixed lens provides a wide field of view, making it suitable for monitoring open areas such as entrances, corridors, and small outdoor spaces.
Field of View (2.8mm lens):
- Horizontal FOV: 101°
- Vertical FOV: 60°
- Diagonal FOV: 122°
This wide coverage helps reduce blind spots and allows effective monitoring of larger areas with a single camera.
Reliable Infrared Night Vision – Up to 25 Meters
The Hikvision DS-2CE16D0T-IRF is equipped with powerful infrared LEDs that enable clear surveillance even in complete darkness.
Night Vision Features:
- IR range up to 25 meters
- 0 Lux visibility in total darkness
- Smart IR adjustment for balanced brightness
- Automatic day/night switching
This ensures uninterrupted security monitoring 24/7, even in low-light or nighttime environments.
Durable IP67 Weatherproof Design
Hikvision DS-2CE16D0T-IRF designed for outdoor use, the camera features a rugged IP67-rated metal housing that protects it from harsh environmental conditions.
Protection Features:
- IP67-rated dust and water resistance
- Fully sealed metal body construction
- Suitable for extreme weather conditions
- Operating temperature: -40°C to 60°C
This makes it ideal for outdoor installation in areas exposed to rain, dust, and heat such as building exteriors, parking areas, and entrances.
Flexible Video Output Compatibility
The Hikvision DS-2CE16D0T-IRF camera supports multiple analog video output formats, making it highly compatible with various DVR systems.
Supported Signal Formats:
- TVI (Turbo HD)
- AHD
- CVI
- CVBS (Analog)
This 4-in-1 compatibility ensures easy integration with both new and existing surveillance setups without requiring major system upgrades.
Enhanced Image Processing Features
The Hikvision DS-2CE16D0T-IRF includes essential image enhancement technologies that improve clarity in different lighting conditions.
Image Enhancement Features:
- Digital Wide Dynamic Range (DWDR)
- Backlight Compensation (BLC)
- Highlight Compensation (HLC)
- Smart IR technology
- Adjustable brightness and sharpness
These features help improve visibility in challenging environments such as strong backlight or low-light scenes.
Smooth Video Performance
The Hikvision DS-2CE16D0T-IRF camera delivers stable and smooth video output suitable for real-time monitoring and recording.
Frame Rate Support:
- 1080p @ 25fps / 30fps (TVI/AHD/CVI)
- Compatible with PAL/NTSC systems
- Auto switching day/night mode
This ensures consistent video playback without lag or distortion.
Energy-Efficient and Reliable Operation
The Hikvision DS-2CE16D0T-IRF is designed for low power consumption while maintaining strong performance.
Power Specifications:
- Power supply: 12V DC ± 25%
- Maximum power consumption: 3W
- Efficient energy usage for continuous operation
This makes it suitable for long-term surveillance installations with minimal energy costs.
Easy Installation and Compact Design
The Hikvision DS-2CE16D0T-IRF camera features a compact bullet-style design that allows quick and flexible installation.
Physical Specifications:
- Dimensions: Φ70 mm × 137.8 mm
- Weight: Approx. 260 g
- Adjustable mounting angles: Pan 360°, Tilt 90°, Rotation 360°
Its lightweight structure and adjustable mounting system make it easy to install on walls, ceilings, and poles.
Wide Range of Applications
The Hikvision DS-2CE16D0T-IRF is suitable for various entry-level surveillance applications where reliable monitoring is required.
Common Applications:
- Residential home security
- Small offices and commercial shops
- Retail stores and supermarkets
- Building entrances and exits
- Parking areas and driveways
- Warehouses and storage rooms
Its simplicity and reliability make it ideal for basic yet effective security setups.
Key Features Summary
- 2MP Full HD (1080p) resolution
- 2.8mm wide-angle lens for better coverage
- Up to 25 meters IR night vision
- IP67 weatherproof metal housing
- 4-in-1 video output (TVI/AHD/CVI/CVBS)
- Smart IR and image enhancement features
- Low power consumption (max 3W)
- Extreme temperature tolerance (-40°C to 60°C)
- Easy installation and flexible mounting
Conclusion
The Hikvision DS-2CE16D0T-IRF (C) 2MP Bullet Camera is a dependable and budget-friendly surveillance solution designed for basic security needs. With its Full HD imaging, wide-angle lens, strong night vision, and durable IP67 metal body, it provides consistent and reliable monitoring in both indoor and outdoor environments.
Its simple installation, low power usage, and multi-format compatibility make it an excellent choice for entry-level CCTV systems requiring effective and long-lasting security performance.
