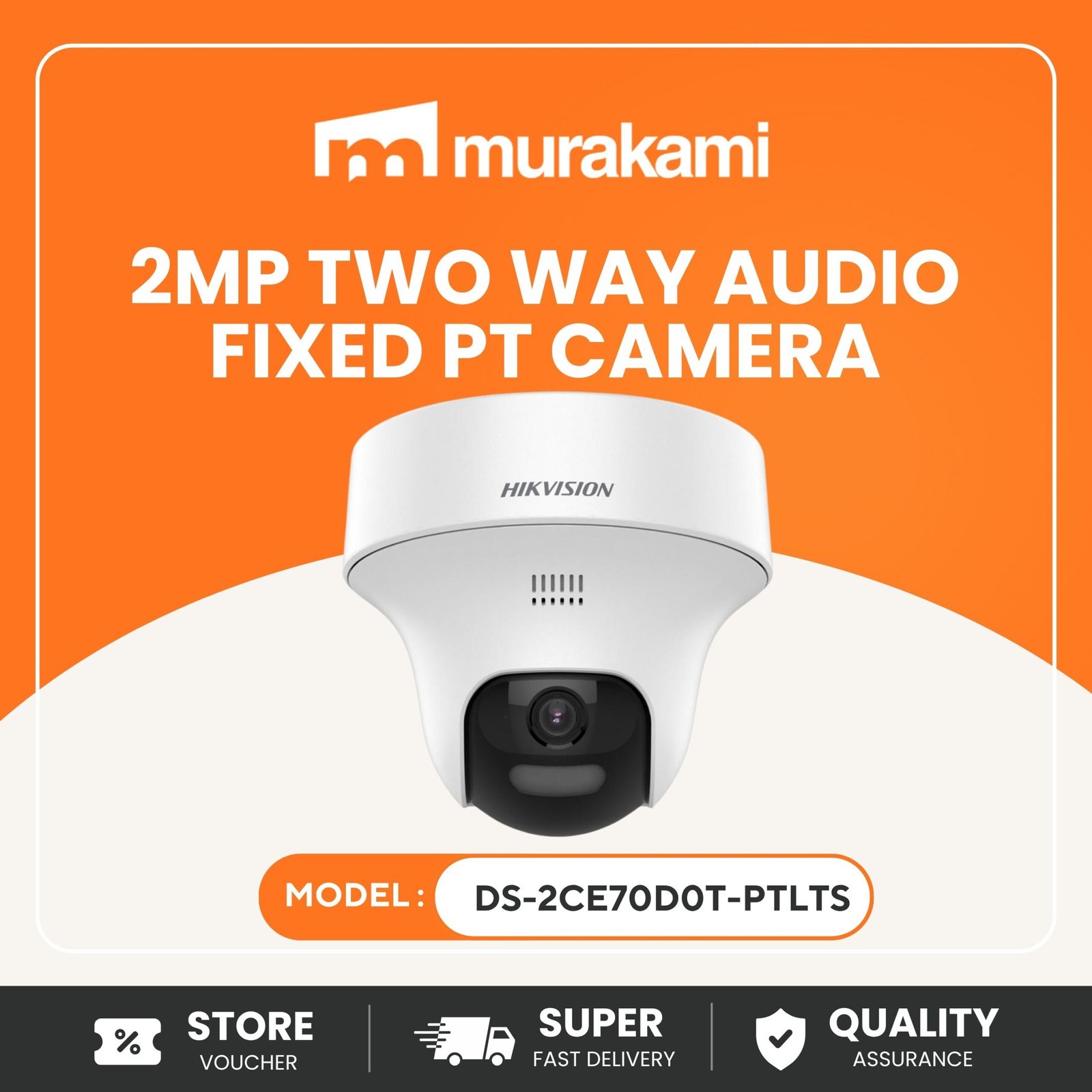

Hikvision (DS-2CE70D0T-PTLTS)

The Hikvision (DS-2CE70D0T-PTLTS) is a revolutionary 2-megapixel analog camera that challenges the traditional boundaries of coaxial surveillance. As a member of the Turbo HD lineup, this “Fixed PT” (Pan-Tilt) camera provides a unique hybrid solution: the durability and cost-effectiveness of an analog system combined with the flexible movement and interactive features typically found only in high-end IP cameras. Featuring Smart Hybrid Light and Two-Way Audio, it is engineered for users who require comprehensive, interactive oversight of their property.

---

Motorized Flexibility: The Pan-Tilt Advantage

Unlike standard fixed cameras that leave permanent blind spots, the Hikvision (DS-2CE70D0T-PTLTS) features a motorized pan and tilt mechanism. This allows users to remotely adjust the camera’s orientation via the Hik-Connect app or a compatible DVR:

• Pan Range: 0° to 350°

• Tilt Range: 0° to 75°

This capability is a game-changer for monitoring large, open spaces. Instead of installing multiple fixed cameras to cover different angles, a single PT camera can be rotated to inspect specific areas of interest—such as moving from a driveway to a front gate—providing dynamic control over your security environment.

---

Interactive Security: Two-Way Audio Over Coax

Hikvision (DS-2CE70D0T-PTLTS) One of the most advanced features of this model is the integrated Two-Way Audio capability, which functions seamlessly over a single coaxial cable.

• Built-in Mic & Speaker: The camera is equipped with a high-sensitivity microphone to capture ambient sounds and a built-in speaker for voice broadcasting.

• Real-Time Communication: Through your smartphone or DVR, you can listen to the environment and speak directly to people on-site. This is an essential tool for greeting visitors, giving instructions to delivery personnel, or issuing a verbal warning to deter suspicious individuals.

• Simplified Infrastructure: By transmitting audio over the same BNC cable used for video, the DS-2CE70D0T-PTLTS eliminates the need for extra wiring, making it an easy upgrade for existing analog systems.

---

Smart Hybrid Light: Intelligent Night Vision

The Hikvision (DS-2CE70D0T-PTLTS) ensures that your nighttime surveillance is as detailed as your daytime footage through Smart Hybrid Light technology. This system offers three versatile modes:

1. IR Mode: Provides discreet, long-range black-and-white night vision using infrared light.

2. White Light Mode: Activates the warm supplemental light for 24/7 full-color imaging, which also serves as a visible deterrent.

3. Smart Mode: The camera monitors in IR mode until a human or vehicle is detected by the DVR. At that moment, it instantly switches to white light to capture the event in vivid full color, providing the best possible evidence for identification.

---

Optics and Image Enhancement

Hikvision (DS-2CE70D0T-PTLTS) Equipped with a 2.8mm wide-angle lens, the camera offers a horizontal field of view of approximately 101°. This ensures that even before you use the Pan-Tilt function, you have a massive perspective of the scene.

To ensure clarity in all conditions, the camera includes:

• 1080p Full HD Resolution: Delivering crisp 1920 × 1080 video for reliable identification.

• Digital WDR: Balances exposure in scenes with bright backgrounds and dark shadows (such as a camera facing a sunlit window).

• HLC/BLC: Enhances image quality by compensating for strong backlighting or bright headlights that might otherwise wash out the video.

---

📌 KEY FEATURES AT A GLANCE

Feature	Specification
Max. Resolution	1920 × 1080 (2 Megapixel)
Movement	Pan: 0° to 350°; Tilt: 0° to 75°
Lens	2.8mm Fixed Lens (101° Horizontal FOV)
Audio	Built-in Mic & Speaker (Two-Way Audio)
Illumination	Smart Hybrid Light (IR & White Light)
Illumination Range	Up to 40m (IR) / 40m (White Light)
Signal System	TVI / AHD / CVI / CVBS
Durability	IP66 Water and Dust Resistant
Interface	HIKVISION-C (Coaxial Control)

---

📌 IDEAL APPLICATIONS

• Residential Driveways & Yards: Pan the camera to follow a vehicle or person and use the white light to illuminate the area when movement is detected.

• Retail Storefronts: Monitor the entire sales floor and use the two-way audio to communicate with staff or customers.

• Warehouse Entrances: Use the PT function to check different loading docks and the two-way audio to coordinate with drivers.

• Home Porches: Interact with visitors and couriers in real-time while maintaining a wide-angle view of the property.

---

📌 CONCLUSION

The Hikvision (DS-2CE70D0T-PTLTS) is a sophisticated, versatile security solution that brings modern interactivity to the analog market. By combining motorized Pan-Tilt movement, Two-Way Audio, and Smart Hybrid Light into a single unit, it provides a level of situational awareness that traditional fixed cameras cannot match. For those looking to upgrade their BNC system with high-definition, interactive, and flexible surveillance, this Hikvision (DS-2CE70D0T-PTLTS) camera is a top-tier choice that offers exceptional value and performance.

---
