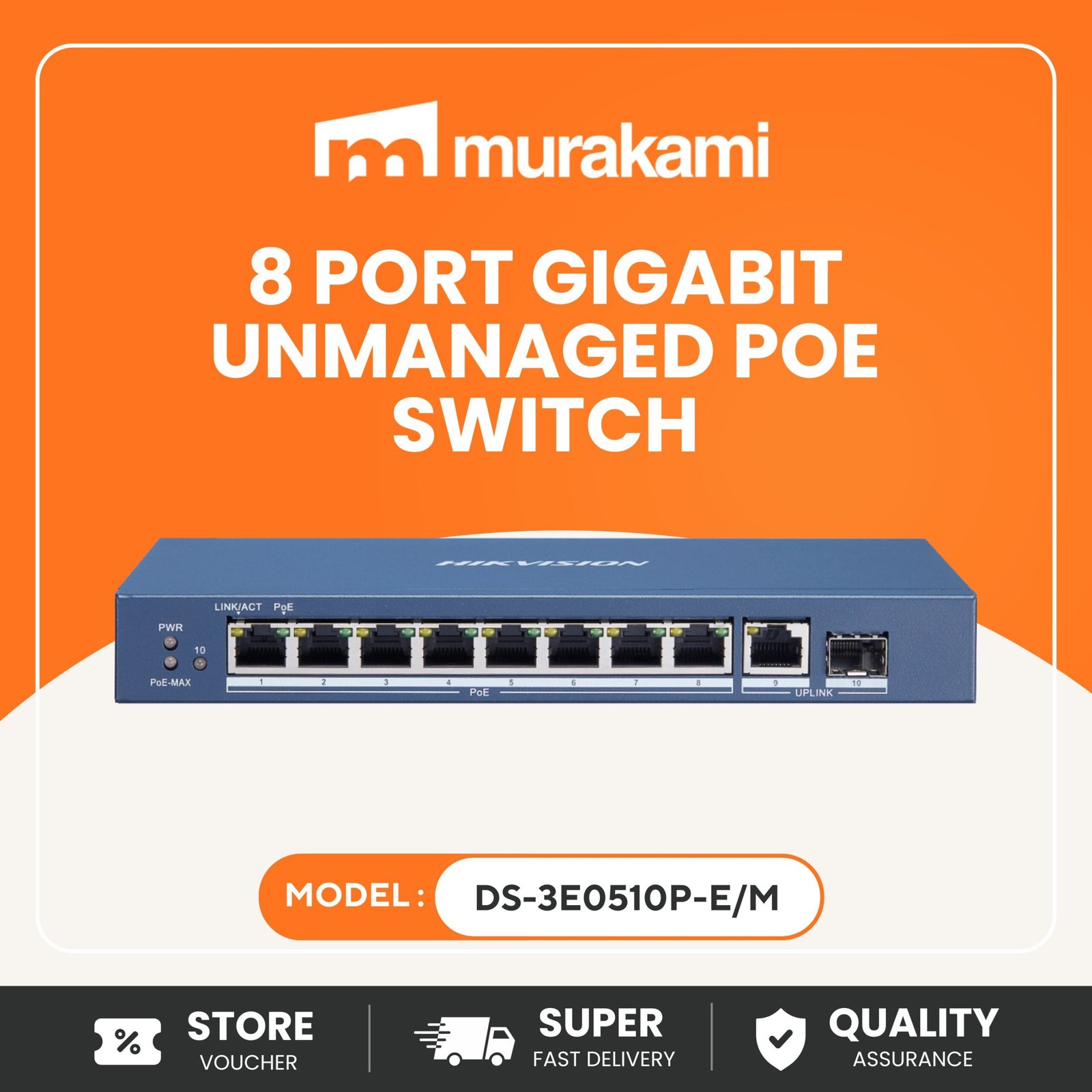

The Hikvision DS-3E0510P-E/M 8-Port Gigabit PoE Switch is a powerful and efficient networking device designed to support modern surveillance systems, enterprise networks, and high-bandwidth applications. With full Gigabit connectivity, PoE capability, and fiber uplink support, this switch ensures fast, stable, and scalable network performance for demanding environments.
Built with a durable metal housing and fan-free design, this switch is ideal for continuous operation in offices, commercial buildings, CCTV installations, and industrial setups. It simplifies deployment by combining power and data transmission into a single cable, making it a practical solution for both professional installers and system integrators.
Full Gigabit Connectivity for High-Speed Performance
The Hikvision DS-3E0510P-E/M is equipped with:
- 8 × Gigabit PoE ports
- 1 × Gigabit RJ45 uplink port
- 1 × Gigabit SFP fiber optical port
This configuration allows for high-speed data transfer across all connected devices, ensuring smooth performance even in bandwidth-intensive applications such as HD video surveillance and large network environments.
With a switching capacity of 20 Gbps and a packet forwarding rate of 14.88 Mpps, the switch delivers wire-speed forwarding and non-blocking data transmission, preventing lag or bottlenecks.
Efficient Power over Ethernet (PoE) Support
Supporting IEEE 802.3af and IEEE 802.3at standards, the Hikvision DS-3E0510P-E/M switch can deliver power directly to connected devices such as IP cameras, wireless access points, and VoIP phones.
Key PoE features include:
- Up to 30 W per port
- Total PoE power budget of 58 W
- Stable power supply through Ethernet cables
- Reduced need for additional power infrastructure
This simplifies installation and reduces overall system cost, especially in large deployments.
Fiber Optical Uplink for Extended Network Reach
The inclusion of a Gigabit SFP fiber port allows the Hikvision DS-3E0510P-E/M switch to connect to long-distance fiber networks. This is particularly useful for:
- Linking buildings or remote sites
- Expanding enterprise networks
- Integrating with backbone infrastructure
Fiber connectivity ensures minimal signal loss and high-speed data transmission over long distances, making it ideal for campus or industrial applications.
Reliable and Stable Network Performance
The Hikvision DS-3E0510P-E/M switch uses a store-and-forward switching method, which verifies data packets before forwarding them. This improves accuracy and prevents corrupted data from spreading across the network.
Additional performance features include:
- 4K MAC address table for efficient device management
- 1.5 Mbit internal cache for smooth data handling
- Support for multiple IEEE networking standards
These features ensure consistent and reliable operation in both small and large network environments.
Durable Metal Design with Surge Protection
Constructed with a solid high-strength metal shell, the Hikvision DS-3E0510P-E/M switch is built for durability and long-term use. It provides protection against physical damage and helps dissipate heat efficiently.
The device also features 6 KV surge protection, which safeguards connected equipment from electrical spikes and lightning surges. This is especially important in outdoor or industrial installations where power fluctuations may occur.
Silent Fan-Free Operation
The fanless design ensures completely silent operation, making the switch suitable for noise-sensitive environments such as offices, control rooms, and residential areas.
Additionally, the absence of moving parts reduces maintenance requirements and enhances overall reliability.
Energy-Efficient and Cost-Effective
The Hikvision DS-3E0510P-E/M switch is designed for efficient energy usage with:
- Maximum power consumption: 65 W
- Idle power consumption: 7 W
This helps reduce operational costs while maintaining optimal performance, especially in systems that run 24/7.
Flexible Installation Options
The Hikvision DS-3E0510P-E/M supports both:
- Desk-mounted installation
- Wall-mounted installation
Its compact size and lightweight design make it easy to deploy in various environments, including network cabinets and small spaces.
Ideal Applications
This Hikvision DS-3E0510P-E/M switch is suitable for a wide range of applications, including:
- CCTV surveillance systems with high-resolution IP cameras
- Enterprise and office networks
- Retail stores and commercial establishments
- Industrial monitoring systems
- Campus and building network expansions
Its Gigabit performance and fiber support make it especially ideal for projects requiring high-speed data transfer and long-distance connectivity.
Conclusion
The Hikvision DS-3E0510P-E/M is a robust and high-performance networking solution designed for modern digital infrastructure. With 8 Gigabit PoE ports, fiber uplink capability, strong surge protection, and efficient power management, it delivers the speed, reliability, and flexibility needed for advanced network deployments.
Whether you are building a CCTV system, upgrading your office network, or expanding connectivity across multiple locations, this switch provides a dependable and scalable solution for professional-grade performance.
