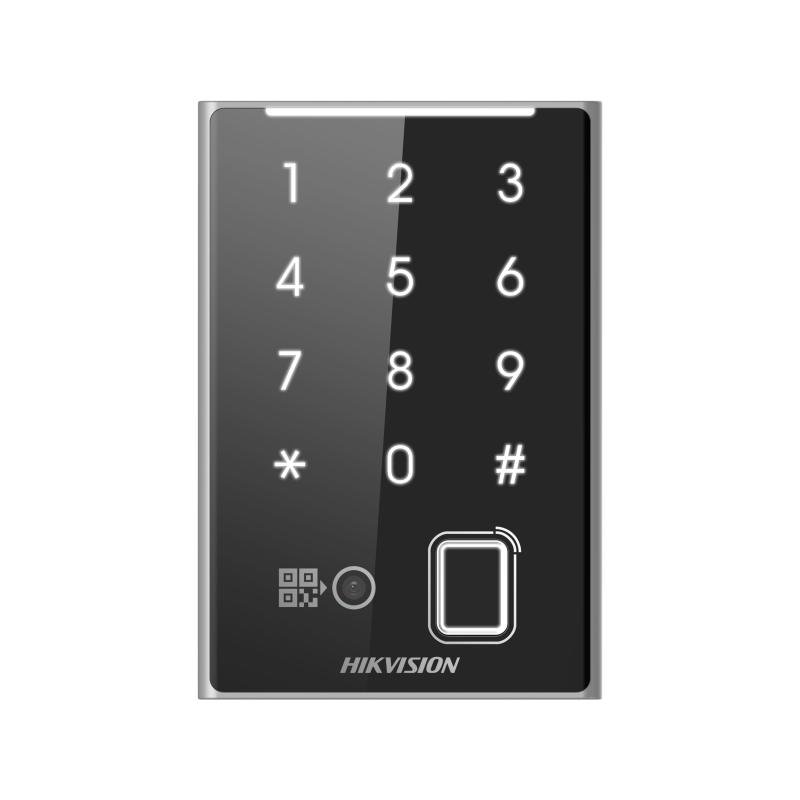

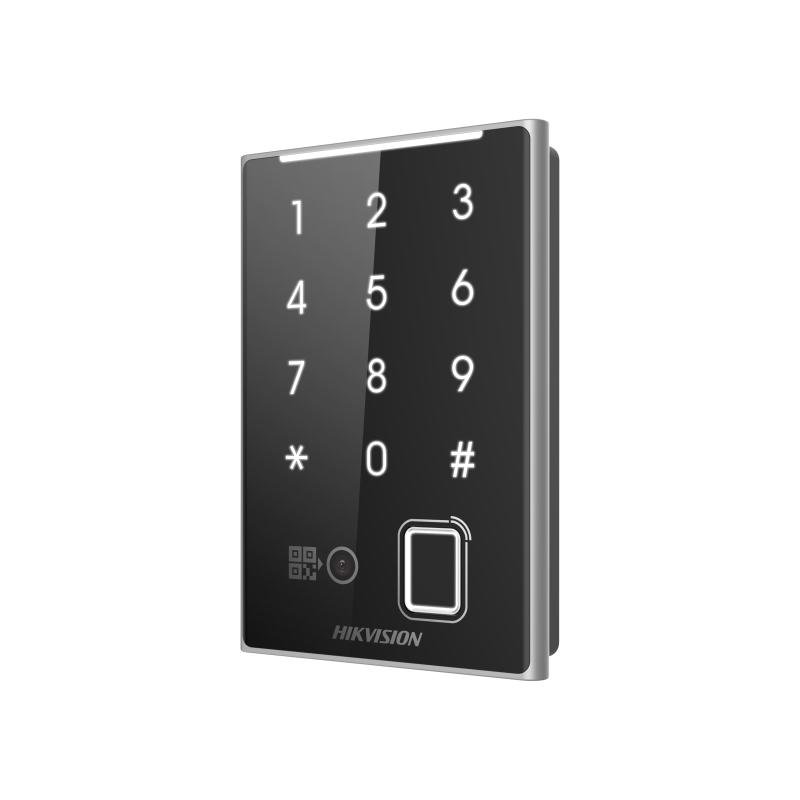

The Hikvision DS-K1109EKFB-QR is a professional outdoor access control reader that combines EM card authentication, fingerprint recognition, QR code scanning, and PIN code verification in a single device. Designed for secure and flexible access management, it is ideal for office buildings, factories, schools, residential communities, and commercial facilities where multiple authentication methods are required. It supports RS-485 and Wiegand (W26/W34) communication protocols for seamless integration with Hikvision and third-party access control systems.

The reader features a built-in fingerprint sensor with a capacity of up to 5,000 fingerprints, along with support for EM (125 kHz) cards, QR codes, barcodes, and PIN authentication. QR code recognition is available when connected via RS-485, making it an excellent choice for visitor management and temporary access applications. It also supports an optional Bluetooth module for enhanced authentication flexibility.

Built for demanding indoor and outdoor environments, the IP65-rated housing protects against dust and water, while the integrated tamper alarm, buzzer, and wall-mounted design ensure reliable operation and enhanced security. Its durable construction and multiple authentication options make it a versatile solution for modern access control installations.

Key Features

• Supports EM (125 kHz) card authentication
• Built-in fingerprint scanner with capacity for up to 5,000 fingerprints
• QR code and barcode recognition (via RS-485)
• PIN code authentication through integrated keypad
• Multiple authentication methods: card, fingerprint, PIN, and QR code
• Supports RS-485 and Wiegand (W26/W34) communication
• Optional Bluetooth module support (RS-485 connection)
• Built-in tamper protection
• Integrated buzzer for status indication
• IP65-rated weatherproof housing
• Wall-mounted design for indoor and outdoor installation
• 12 VDC power supply
• Operating temperature: -40°C to 65°C
