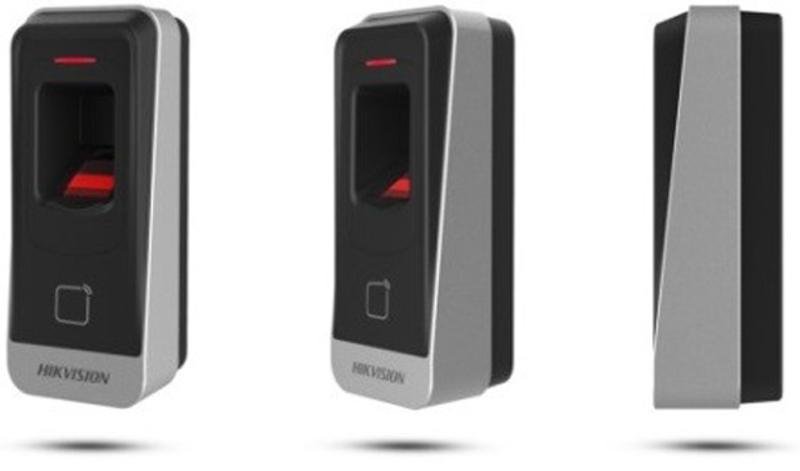

The Hikvision DS-K1201AMF is a professional fingerprint and MIFARE card reader designed for secure and efficient access control applications. It supports multiple authentication methods, including fingerprint, MIFARE card, and card + fingerprint verification, providing enhanced security for offices, commercial buildings, factories, schools, and other restricted areas.

Equipped with an optical CMOS fingerprint sensor, the reader supports both 1:1 and 1:N fingerprint comparison modes for fast and accurate user verification. It can store up to 5,000 fingerprints and communicates with compatible Hikvision access controllers via an RS-485 interface. The device features encrypted fingerprint data storage, built-in tamper protection, and a buzzer for status indication. Its IP65-rated weatherproof housing allows reliable operation in both indoor and outdoor environments.

Key Features

• Supports fingerprint, MIFARE card, and card + fingerprint authentication
• Optical CMOS fingerprint sensor
• Stores up to 5,000 fingerprints
• 1:1 and 1:N fingerprint comparison modes
• Fast fingerprint recognition (≤1 second)
• Supports MIFARE (M1) card reading
• RS-485 communication interface
• Encrypted fingerprint data storage for enhanced security
• Built-in tamper alarm and buzzer
• IP65-rated weatherproof design for indoor and outdoor installation
• Surface-mounted installation
• Operating temperature: -40°C to 70°C
