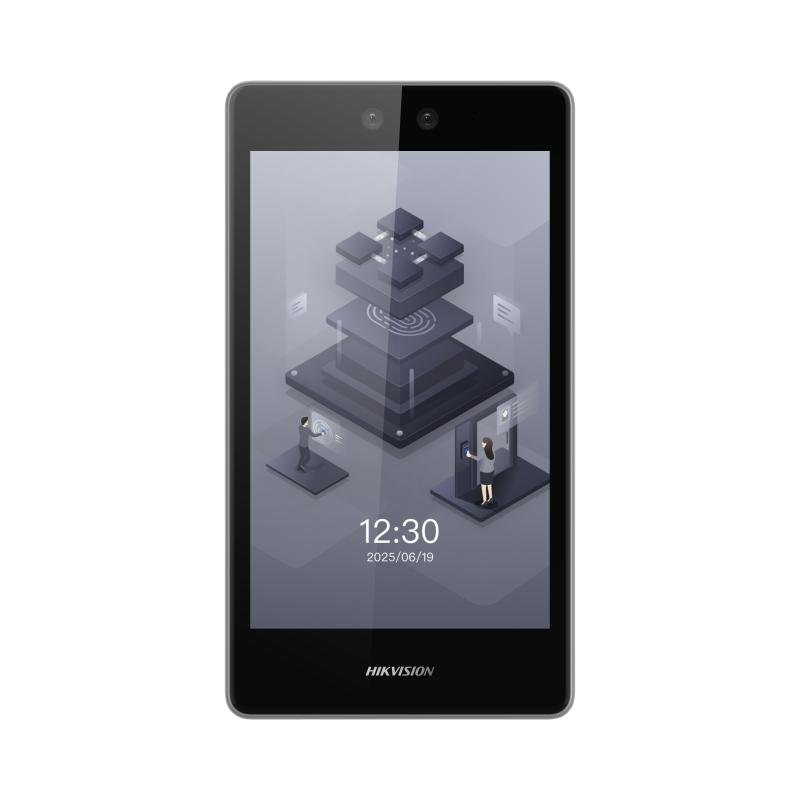

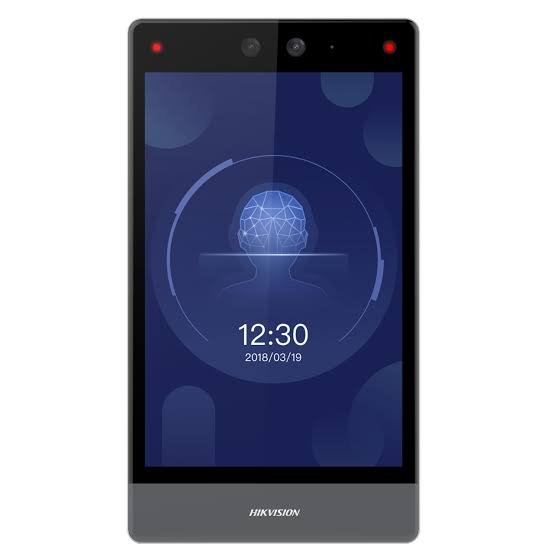

The Hikvision DS-K1T680DG is an Ultra Series Face Recognition Access Terminal designed for advanced access control and time attendance applications in offices, factories, airports, logistics centers, schools, and commercial facilities. Equipped with an 8-inch bezel-less capacitive touchscreen and dual 2MP cameras, it delivers fast, accurate face recognition with a recognition speed of less than 0.2 seconds per user and an accuracy rate of 99% or higher. It supports face recognition from 0.3 to 3 meters, ensuring quick and contactless authentication.

Unlike the Wi-Fi model, the DS-K1T680DG features built-in 3G/4G cellular connectivity, enabling flexible deployment in locations where wired or Wi-Fi networks are unavailable. It also includes MIFARE (M1), DESFire, and Felica card readers, advanced face anti-spoofing, QR code recognition, and two-way audio. With support for 100,000 face templates, 100,000 cards, and 150,000 event records, the terminal provides a scalable and secure access control solution for medium to large enterprises. It supports TCP/IP, ISAPI, ISUP 5.0, RS-485, Wiegand, and web/mobile client management.

Key Features

• Ultra Series face recognition access terminal
• 8-inch bezel-less capacitive touchscreen
• Dual 2MP cameras with face anti-spoofing technology
• Built-in MIFARE (M1), DESFire, and Felica card reader
• Built-in 3G/4G cellular connectivity
• Face recognition distance: 0.3 m to 3 m
• Recognition speed: < 0.2 seconds per user
• Face recognition accuracy: ≥ 99%

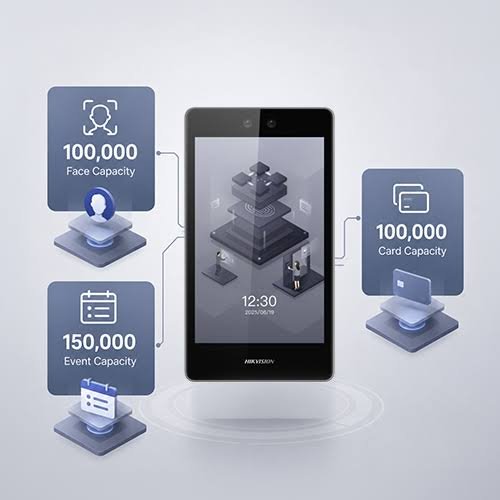

• Supports 100,000 face templates, 100,000 cards, and 150,000 event records
• Supports QR code recognition
• Two-way audio communication
• Supports TCP/IP, ISAPI, ISUP 5.0, RS-485, Wiegand, and USB
• IP65-rated weather-resistant design
• Compatible with Hikvision access management platforms and mobile/web configuration.
