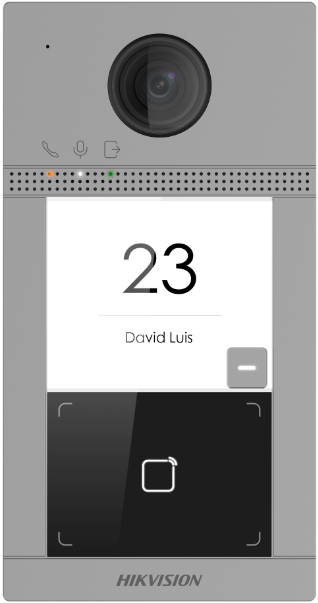

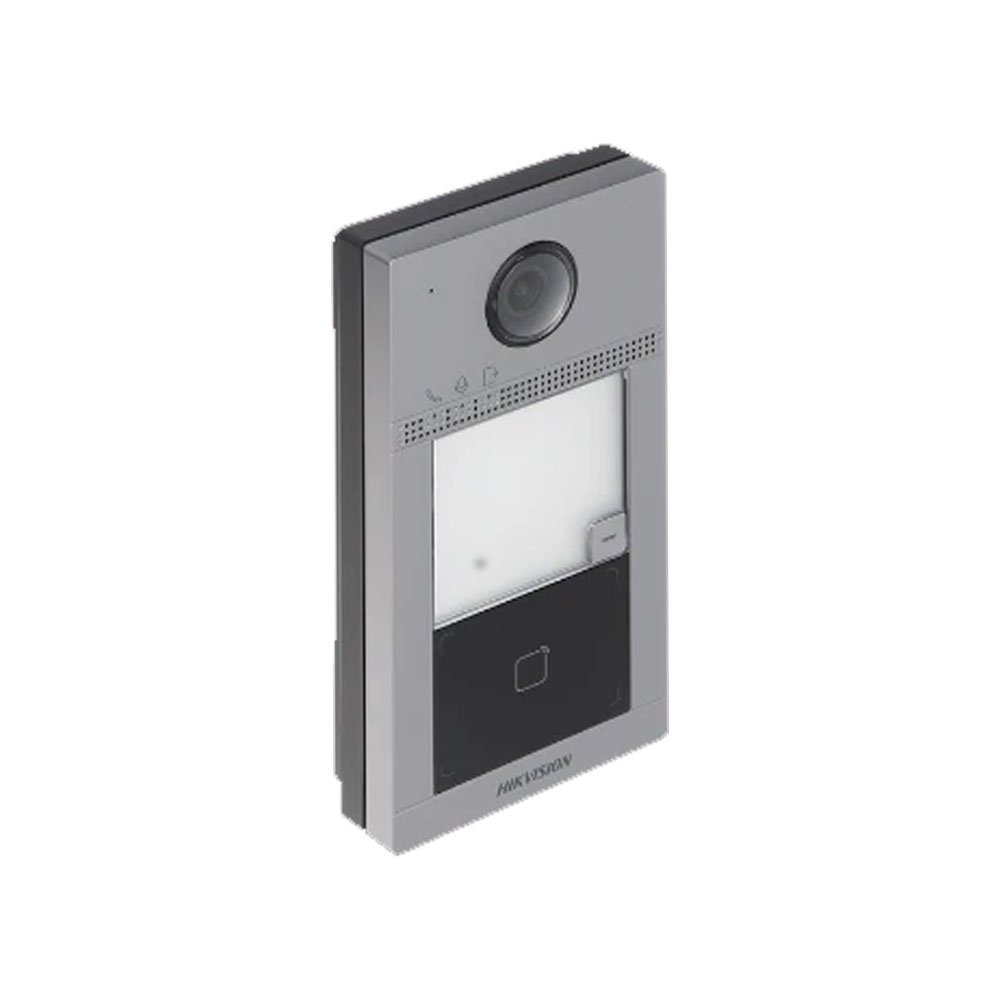

The Hikvision DS-KD8003-IME1/Surface is an IP Modular Video Intercom Door Station designed as the main unit of Hikvision’s modular intercom system for residential, commercial, and multi-tenant applications. Featuring a 2MP HD fisheye camera with a 180° horizontal viewing angle, it provides high-quality video monitoring and reliable visitor communication. Its modular architecture supports the addition of up to 8 expansion modules, including keypads, card readers, information display modules, and nameplates, allowing flexible and scalable access control solutions.

Designed for surface mounting, the door station offers two-way audio with noise suppression and echo cancellation for clear communication. It supports Standard PoE (IEEE 802.3af) or 12 VDC power for simplified installation and integrates seamlessly with Hikvision indoor stations, client software, and the Hik-Connect mobile platform. Equipped with IR night vision, Wide Dynamic Range (WDR), dual lock relays, alarm inputs, and an IP65-rated weather-resistant housing, it delivers dependable performance for outdoor installations.

Key Features

• IP modular video intercom main door station
• Surface-mount installation
• 2MP HD fisheye camera with 180° horizontal viewing angle
• IR night vision for low-light environments
• Single physical call button with customizable nameplate
• Supports up to 8 modular expansion units
• Two-way audio with noise suppression and echo cancellation
• H.264 video compression
• Wide Dynamic Range (WDR) for improved image quality
• Supports Standard PoE (IEEE 802.3af) and 12 VDC power
• 10/100 Mbps self-adaptive Ethernet
• Two relay outputs for door lock control
• Four alarm inputs and tamper alarm
• Compatible with Hik-Connect for remote visitor management
• IP65-rated weather-resistant design for outdoor use.
