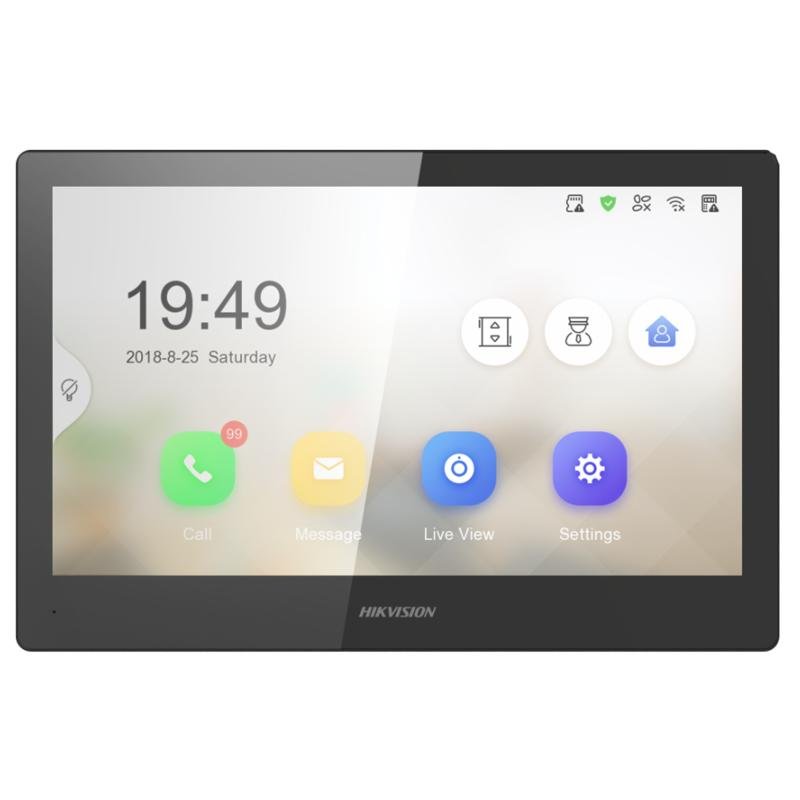

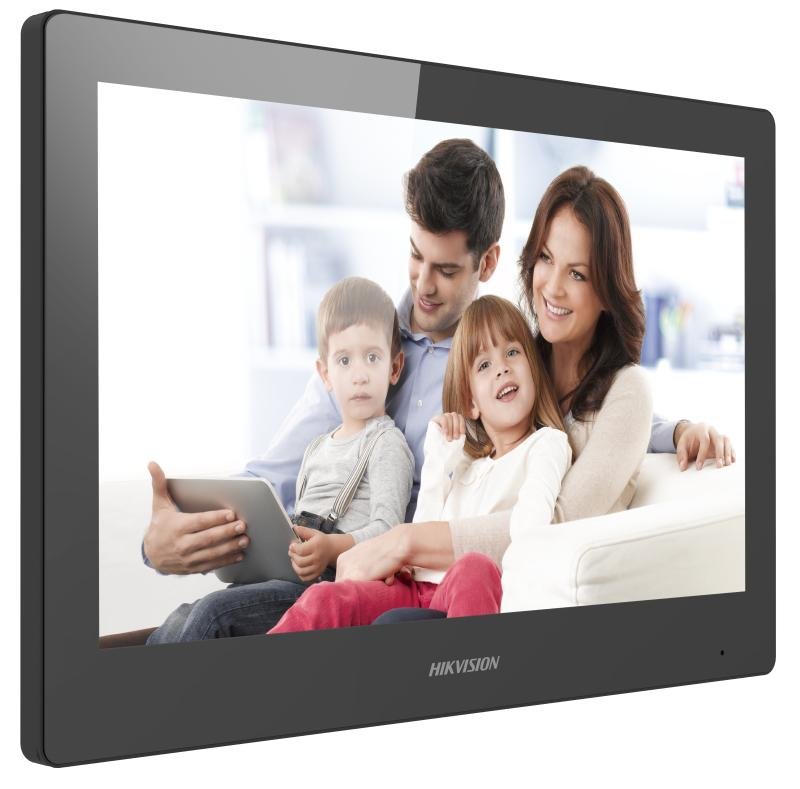

The Hikvision DS-KH8520-WTE1 is a premium 10.1-inch IP Video Intercom Indoor Station designed to provide convenient communication, remote access control, and real-time video monitoring for residential and commercial properties. Featuring a 10.1-inch capacitive TFT touch screen with 1024 × 600 resolution, the indoor station offers an intuitive user interface for answering calls, unlocking doors, viewing live video, and managing the entire video intercom system.

Equipped with Wi-Fi and PoE (Power over Ethernet) support, the DS-KH8520-WTE1 offers flexible installation and seamless network connectivity. Users can remotely answer calls, unlock doors, and monitor connected door stations through the Hik-Connect mobile app. The indoor station also supports live viewing of connected door stations and IP cameras, making it an excellent central monitoring device for homes, apartments, offices, and commercial buildings.

Built on an Embedded Linux operating system, the unit features a built-in microphone and loudspeaker with noise suppression and echo cancellation for clear two-way communication. It supports up to 16 linked IP cameras, 16 indoor extensions, 17 door stations, 8 alarm inputs, 2 relay outputs, RS-485 communication, and microSD/TF card storage up to 128 GB for messages and captured images.

Key Features

• 10.1-inch TFT capacitive touch screen
• 1024 × 600 display resolution
• Built-in Wi-Fi (802.11 b/g/n) and 10/100 Mbps Ethernet
• Supports PoE (IEEE 802.3af) and 12 VDC power
• Remote door unlocking via Hik-Connect mobile app
• Live view of connected door stations and IP cameras
• Built-in microphone and loudspeaker with noise suppression and echo cancellation
• Supports up to 16 IP cameras
• Supports up to 17 door stations
• Supports up to 16 indoor extensions
• 8 alarm inputs and 2 relay outputs
• RS-485 interface for system integration
• Supports TF/microSD card up to 128 GB
• Embedded Linux operating system
• Ideal for homes, apartments, villas, offices, and commercial buildings
