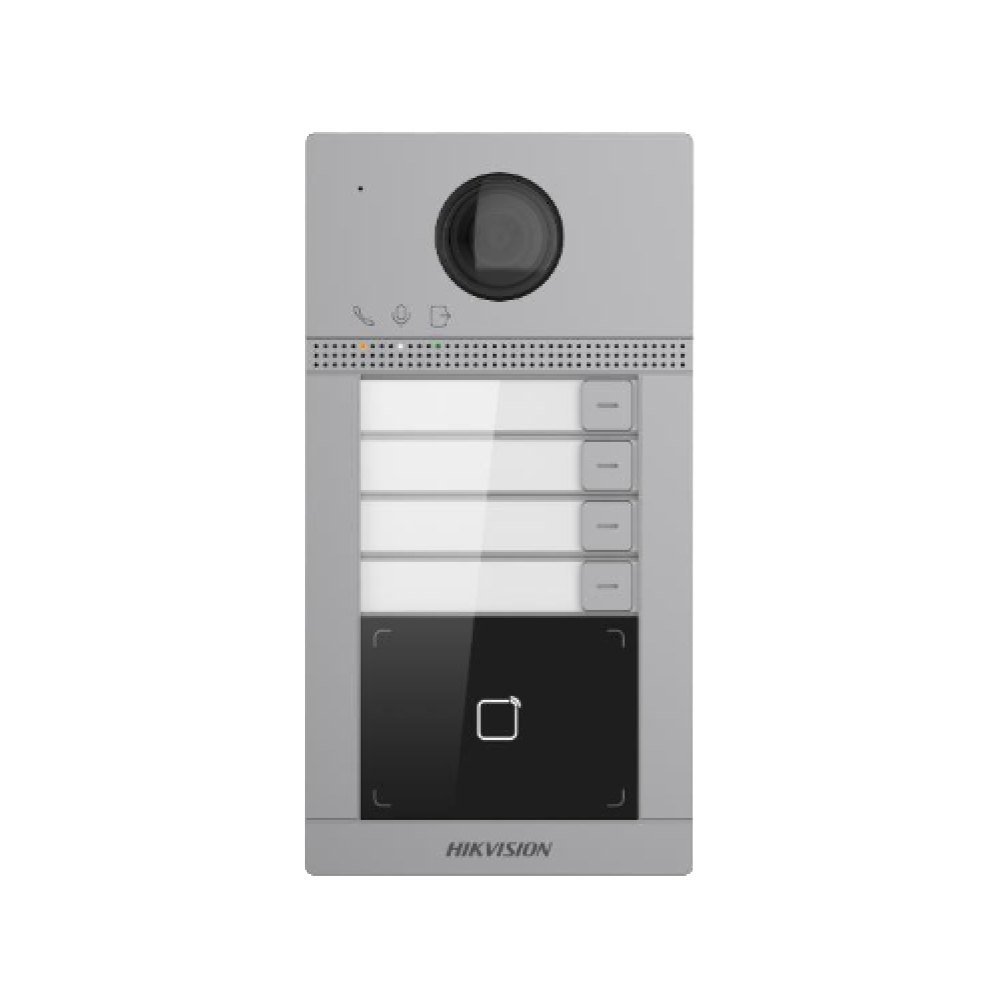

The Hikvision DS-KV8413-WME1(C) is an IP Villa Video Door Station designed for multi-unit residential buildings, villas, apartments, and small commercial properties. Featuring four physical call buttons, it allows communication with up to four independent residences or offices from a single outdoor station. Equipped with a 2MP HD camera, IR night vision, and True WDR, it delivers clear video and reliable visitor identification in both daytime and low-light environments. Built on an embedded Linux operating system, it also provides two-way audio with noise suppression and echo cancellation for crystal-clear communication.

The DS-KV8413-WME1(C) includes a built-in 13.56 MHz MIFARE card reader for secure card-based access control and supports Standard PoE (IEEE 802.3af) or 12 VDC power for flexible installation. With integrated 2.4 GHz Wi-Fi, TCP/IP networking, dual relay outputs for door lock control, and compatibility with Hik-Connect, it enables convenient remote visitor management and door unlocking. Its durable IP65-rated weatherproof and IK08-rated vandal-resistant aluminum alloy housing ensures reliable outdoor performance in demanding environments.

Key Features

• IP villa video door station
• Four physical call buttons for up to four residences or units
• 2MP HD camera with 1920 × 1080 resolution
• 124° horizontal and 75° vertical field of view
• IR night vision up to 3 m
• True WDR for improved image quality
• Built-in 13.56 MHz MIFARE (M1) card reader
• Two-way audio with noise suppression and echo cancellation
• Built-in 2.4 GHz Wi-Fi and 10/100 Mbps Ethernet
• Supports Standard PoE (IEEE 802.3af) and 12 VDC power
• Supports up to 2,000 users and 10,000 access cards
• Dual relay outputs for door lock control
• RS-485 interface and 4 alarm inputs
• Compatible with Hik-Connect for remote monitoring and door unlocking
• IP65 weatherproof and IK08 vandal-resistant aluminum alloy housing
• Surface-mount installation.
