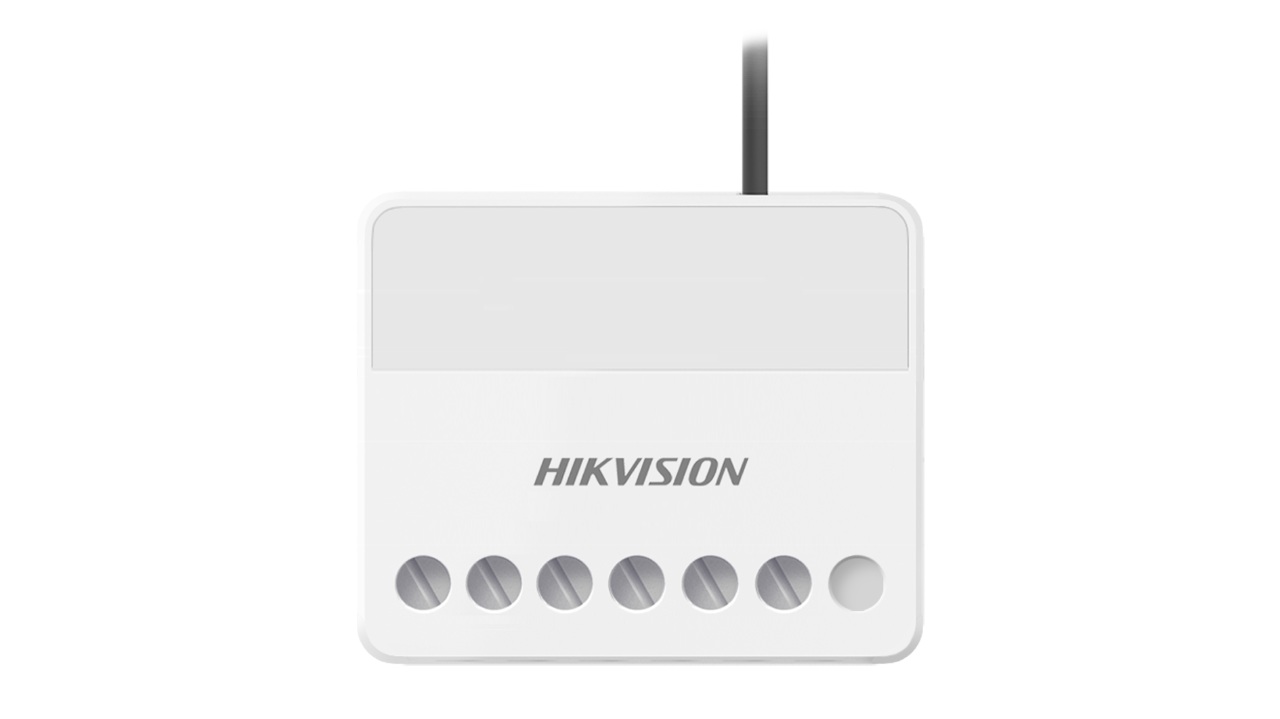

Hikvision (DS-PM1-O1L-WB) AX PRO Wireless Relay Module

The Hikvision DS-PM1-O1L-WB is a compact AX PRO Wireless Relay Module designed to remotely control low-voltage electrical devices as part of a Hikvision AX PRO intrusion alarm system. It enables users to switch connected devices on or off manually through the Hik-Connect App, keypad, or keyfob, or automatically based on predefined alarm events and automation scenarios.

Operating on 433 MHz two-way wireless communication with AES-128 encryption, the module ensures secure and reliable signal transmission. It supports a 7 to 24 VDC power supply and features a NO/NC relay output capable of switching loads up to 36 VDC, 5A, making it suitable for controlling gates, lights, electronic locks, sirens, and other low-voltage devices.

Its compact housing allows discreet installation in concealed locations, while the built-in LED indicators provide clear status feedback. The module also includes a tamper alarm input (NO/NC) for enhanced system security and can be integrated into custom automation scenarios for smart security management.

Key Features

• 433 MHz two-way wireless communication
• AES-128 encrypted wireless transmission
• Remote control via Hik-Connect App, keypad, or keyfob
• Supports automation based on alarms, schedules, and system events
• 7 to 24 VDC power supply
• 1 NO/NC relay output (up to 36 VDC, 5A)
• 1 tamper alarm input (NO/NC)
• LED indicators for power, signal, and relay status
• Compact design for concealed installation
• Compatible with Hikvision AX PRO wireless alarm systems
• Ideal for controlling lights, gates, electronic locks, sirens, and other low-voltage devices
