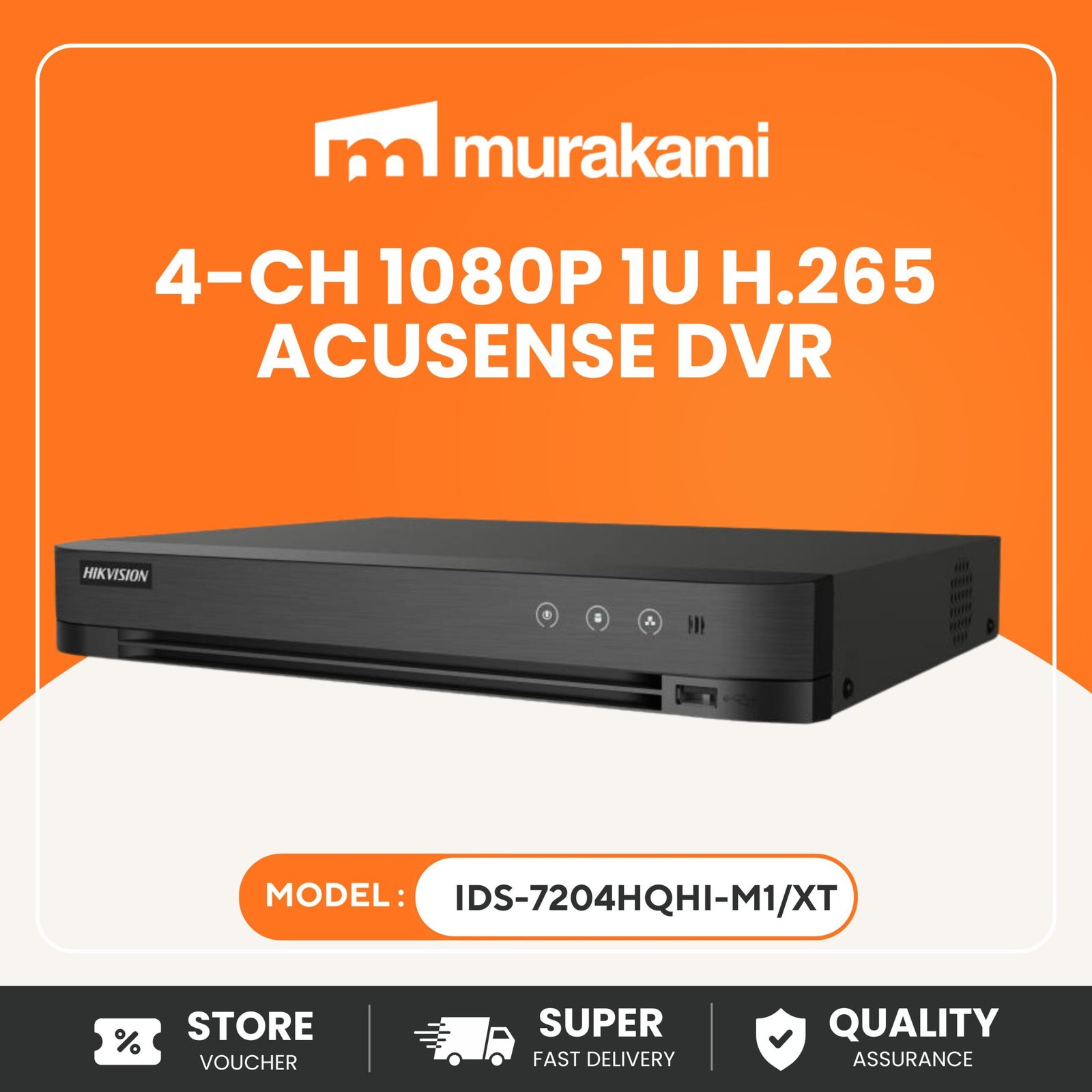

The Hikvision iDS-7204HQHI-M1/XT 4-Channel AcuSense DVR is an advanced digital video recorder designed for smart surveillance systems that require higher accuracy, reduced false alarms, and efficient video storage. Built with deep learning-based AcuSense technology, this DVR enhances traditional analog security systems by adding intelligent human and vehicle detection, facial recognition capabilities, and improved motion analysis.
It is ideal for homes, small businesses, retail stores, and offices that require reliable monitoring with smart analytics and flexible camera compatibility.
Advanced AcuSense AI Technology
The Hikvision iDS-7204HQHI-M1/XT uses Motion Detection 2.0 powered by deep learning, which significantly improves surveillance accuracy.
Key AI features include:
- Human and vehicle classification
- Reduced false alarms from objects like leaves, rain, or lighting changes
- Quick event search by object type or activity
- Intelligent motion filtering for precise alerts
This ensures that security personnel or homeowners receive only relevant alerts, improving response efficiency and reducing unnecessary notifications.
Facial Recognition and Smart Search
One of the most powerful features of this DVR is its facial recognition capability. It supports:
- Face picture comparison
- Face search and identification
- Up to 16 face picture libraries
- Face detection alarm on HD analog channels
This allows users to build a structured database of known individuals, making it useful for access control, attendance tracking, or security monitoring in sensitive areas.
Flexible Video Input Support
The Hikvision iDS-7204HQHI-M1/XT 4 DVR supports multiple video formats, making it highly compatible with existing surveillance systems.
Analog Support:
- 4 × BNC analog channels
- Supports HDTVI, AHD, HDCVI, and CVBS formats
- Up to 5MP resolution input
IP Camera Expansion:
- Up to 6 IP camera channels
- Supports up to 6MP IP resolution
- Hybrid system compatibility (analog + IP mix)
This flexibility allows users to upgrade their system gradually without replacing all existing cameras.
High-Quality Video Output
The Hikvision iDS-7204HQHI-M1/XT 4 DVR provides multiple display outputs for monitoring:
- HDMI output up to 1080p Full HD
- VGA output up to 1080p
- CVBS output for legacy displays
- Simultaneous HDMI and VGA output support
This ensures smooth viewing on monitors, TVs, and control room displays.
Efficient H.265+ Video Compression
The Hikvision iDS-7204HQHI-M1/XT 4 system uses H.265 Pro+ compression technology, which significantly reduces storage usage while maintaining high video quality.
Benefits include:
- Up to 70% lower storage requirements
- Reduced bandwidth consumption
- Longer recording retention on the same HDD
- Optimized streaming performance
The DVR supports up to 1 SATA HDD (up to 10TB capacity), providing sufficient storage for continuous recording.
Smart Motion Detection 2.0
The Hikvision iDS-7204HQHI-M1/XT 4 DVR includes AI-powered motion detection across all channels, which improves surveillance accuracy.
Features include:
- Human and vehicle classification
- Smart filtering of irrelevant motion
- Event-based recording and alerts
- Faster video search and playback
This ensures better security monitoring, especially in outdoor environments where false alarms are common.
Audio and Two-Way Communication
The Hikvision iDS-7204HQHI-M1/XT 4 DVR supports:
- Up to 4 audio inputs (RCA/coaxial)
- One audio output channel
- Two-way audio communication
This allows users to listen and communicate through compatible cameras or intercom systems, enhancing real-time interaction and security response.
Strong Network and Remote Access
The Hikvision iDS-7204HQHI-M1/XT 4 DVR supports modern networking features for remote monitoring:
- Hik-Connect mobile app support
- Up to 32 remote connections
- ONVIF compatibility
- HTTPS and secure protocols
- DDNS and cloud access
Users can monitor live footage or playback recordings from anywhere using smartphones or computers.
Reliable Performance and Design
Built for continuous operation, the Hikvision iDS-7204HQHI-M1/XT 4 DVR features:
- Compact 1U design
- Low power consumption (≤ 18 W)
- Operating temperature: -10°C to 55°C
- Durable industrial-grade hardware
Its stable design ensures long-term use in demanding environments.
Flexible Connectivity Options
The Hikvision iDS-7204HQHI-M1/XT 4 DVR includes multiple connectivity features:
- 1 × RJ45 Ethernet port (10/100 Mbps)
- USB ports for backup and updates
- RS-485 support for PTZ camera control
- Optional Wi-Fi via USB dongle
This makes it adaptable for various installation setups.
Ideal Applications
The Hikvision iDS-7204HQHI-M1/XT 4 is suitable for:
- Home security systems
- Small business surveillance
- Retail shops and supermarkets
- Offices and warehouses
- Educational institutions
Its AI capabilities make it especially effective in environments requiring accurate monitoring and reduced false alarms.
Conclusion
The Hikvision iDS-7204HQHI-M1/XT 4 is a smart and efficient surveillance solution that combines deep learning AI, facial recognition, H.265+ compression, and flexible camera support in one compact system.
With its ability to intelligently detect humans and vehicles, reduce false alarms, and support hybrid camera setups, it is a powerful upgrade for any modern CCTV installation. It delivers reliable performance, smart analytics, and long-term storage efficiency—making it an excellent choice for intelligent security systems.
