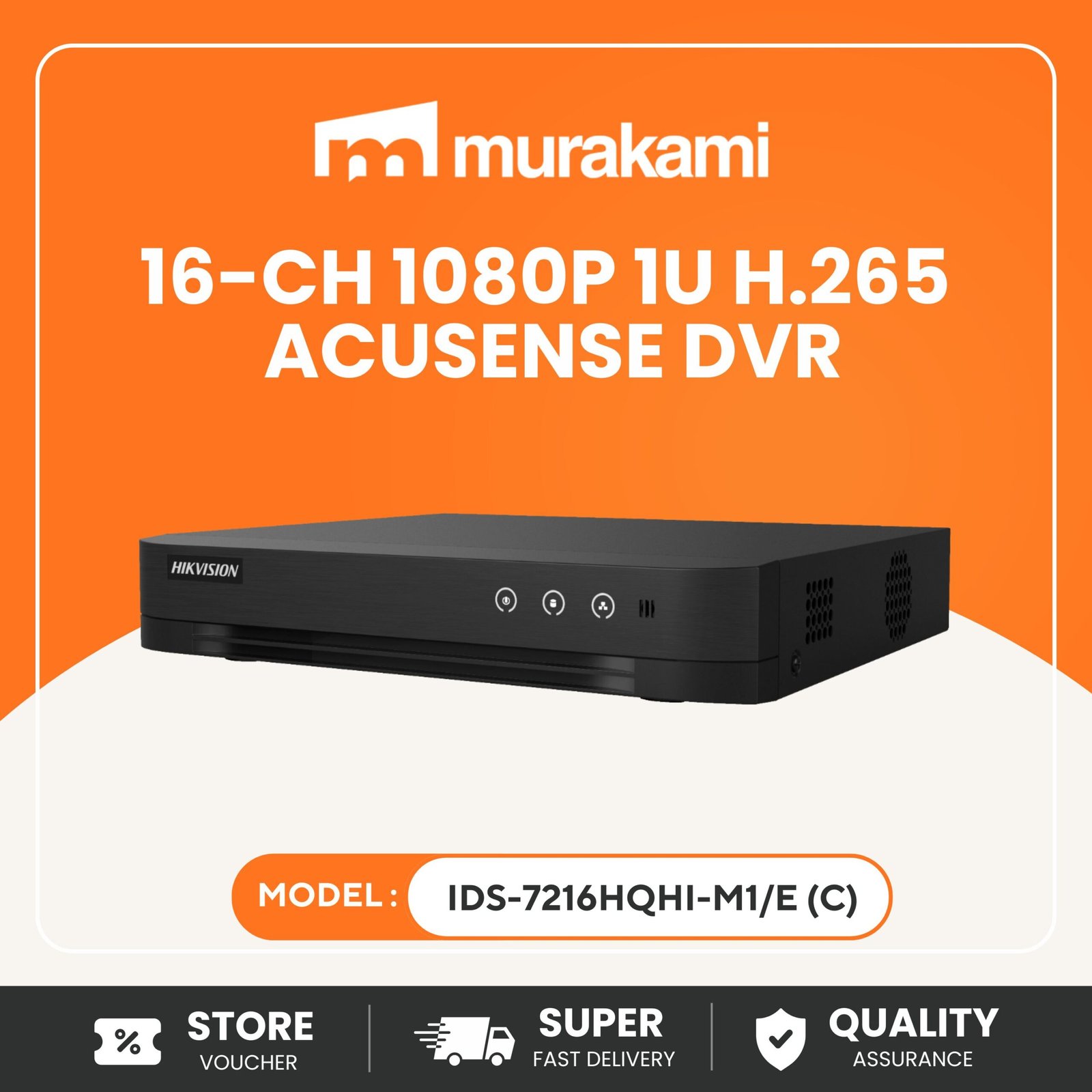

Hikvision (iDS-7216HQHI-M1/E) (C)

The Hikvision (iDS-7216HQHI-M1/E) (C) is an advanced, high-efficiency 16-channel Digital Video Recorder (DVR) that brings professional-grade artificial intelligence to the world of analog surveillance. As a key entry in the AcuSense family, this DVR is designed to maximize security effectiveness by focusing on what truly matters: human and vehicle activity. By utilizing deep-learning algorithms, it transforms traditional CCTV into a smart monitoring system, making it an ideal choice for residential estates, retail centers, and medium-sized business offices seeking to upgrade their security without a full IP overhaul.

---

Intelligent Analytics: AcuSense and Motion Detection 2.0

The “iDS” series is defined by its intelligence. The Hikvision (iDS-7216HQHI-M1/E) (C) features Motion Detection 2.0, which is enabled by default across all 16 analog channels. This technology is a significant departure from standard motion sensing:

• Target Classification: The DVR uses deep-learning models to distinguish the specific shapes of humans and vehicles from other moving objects.

• False Alarm Reduction: Environmental triggers—such as heavy rain, falling leaves, pets, or rapid light changes—are filtered out. This ensures that the user only receives notifications for genuine security events, preventing “alert fatigue.”

• Smart Search: When reviewing hours of recorded footage, users can quickly filter the timeline for “Human” or “Vehicle” events. This turns a task that used to take hours into one that takes seconds, allowing for rapid incident response.

---

High-Definition Performance and Pentabrid Flexibility

This Hikvision (iDS-7216HQHI-M1/E) (C) DVR is built on Pentabrid technology, ensuring it is compatible with almost any analog camera on the market. This versatility makes it the perfect hub for hybrid systems:

• Multi-Signal Support: It seamlessly accepts HDTVI, AHD, CVI, CVBS, and IP video inputs.

• Resolution Mastery: It supports recording at 1080p resolution and 4MP Lite. This ensures that the video output is sharp enough to capture critical forensic evidence, such as facial features and clothing patterns.

• Expanded IP Capacity: Beyond the 16 analog channels, the DVR can support up to 2 additional IP cameras (totaling 18 channels) or up to 24 channels if all analog ports are converted to IP. It supports IP resolutions up to 6MP.

---

Storage Optimization: H.265 Pro+ Compression

One of the biggest challenges of 16-channel recording is the massive amount of data generated. The Hikvision (iDS-7216HQHI-M1/E) (C) utilizes H.265 Pro+, Hikvision’s most efficient compression codec:

• Bitrate Efficiency: H.265 Pro+ analyzes the scene and reduces the bitrate for static backgrounds while maintaining high quality for moving targets.

• Drastic Savings: This results in a reduction of up to 75-80% in storage and bandwidth requirements compared to older H.264 systems.

• HDD Capacity: The DVR features a single SATA interface supporting a hard drive of up to 10 TB, which, combined with H.265 Pro+, allows for extensive historical recording retention.

---

Advanced Audio and Connectivity

The Hikvision (iDS-7216HQHI-M1/E) (C) simplifies the installation of comprehensive security through Audio over Coaxial Cable.

• Integrated Sound: When used with compatible Hikvision cameras, audio is transmitted over the same BNC cable as the video. This eliminates the cost and labor of running separate audio lines for all 16 channels.

• High-Resolution Output: The rear panel features an HDMI output supporting up to 4K (3840 × 2160) resolution. This ensures that when viewing all 16 channels at once on a large monitor, the image remains crisp and clear.

• Remote Access: Full integration with the Hik-Connect app allows users to view live streams, receive AcuSense alerts, and playback footage from anywhere in the world.

---

📌 TECHNICAL SPECIFICATIONS TABLE

Feature	Specification
Analog Video Input	16-ch BNC (HDTVI/AHD/CVI/CVBS)
IP Video Input	2-ch (up to 18-ch) up to 6MP
Encoding Resolution	4MP Lite / 1080p / 720p / WD1 / 4CIF
Compression Standard	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Storage	1 SATA Interface (up to 10 TB)
HDMI Output	1-ch, 4K (3840 × 2160)/30Hz
Network Interface	1, RJ45 10/100/1000 Mbps self-adaptive
Smart Analytics	Human/Vehicle Classification (MD 2.0)
Audio	Audio via Coaxial Cable (Supported on all 16 channels)

---

📌 IDEAL APPLICATIONS

• Medium-to-Large Retail: Monitor multiple aisles and cash wraps while utilizing AcuSense to ignore customer foot traffic in specific “No-Go” zones after hours.

• Corporate Offices: Centralize 16 cameras across hallways, server rooms, and lobbies. Use Smart Search to quickly find when a specific vehicle entered the parking lot.

• Residential Compounds: Provide a 360-degree perimeter defense. The high-resolution HDMI output is perfect for a dedicated security guard station.

• Warehouses: Keep track of loading docks and inventory. The Audio over Coax feature provides essential context during package handling or logistics disputes.

---

📌 CONCLUSION

The Hikvision (iDS-7216HQHI-M1/E) (C) is a powerful, future-ready DVR that proves analog systems can be just as smart as IP-based ones. By merging AcuSense (MD 2.0) with 4K output and H.265 Pro+ efficiency, it offers a sophisticated security hub that is both easy to install and highly effective. For those looking to manage 16 channels of high-definition surveillance with the added benefit of intelligent target filtering, this Hikvision (iDS-7216HQHI-M1/E) (C) model stands as a premier industry solution.

---
