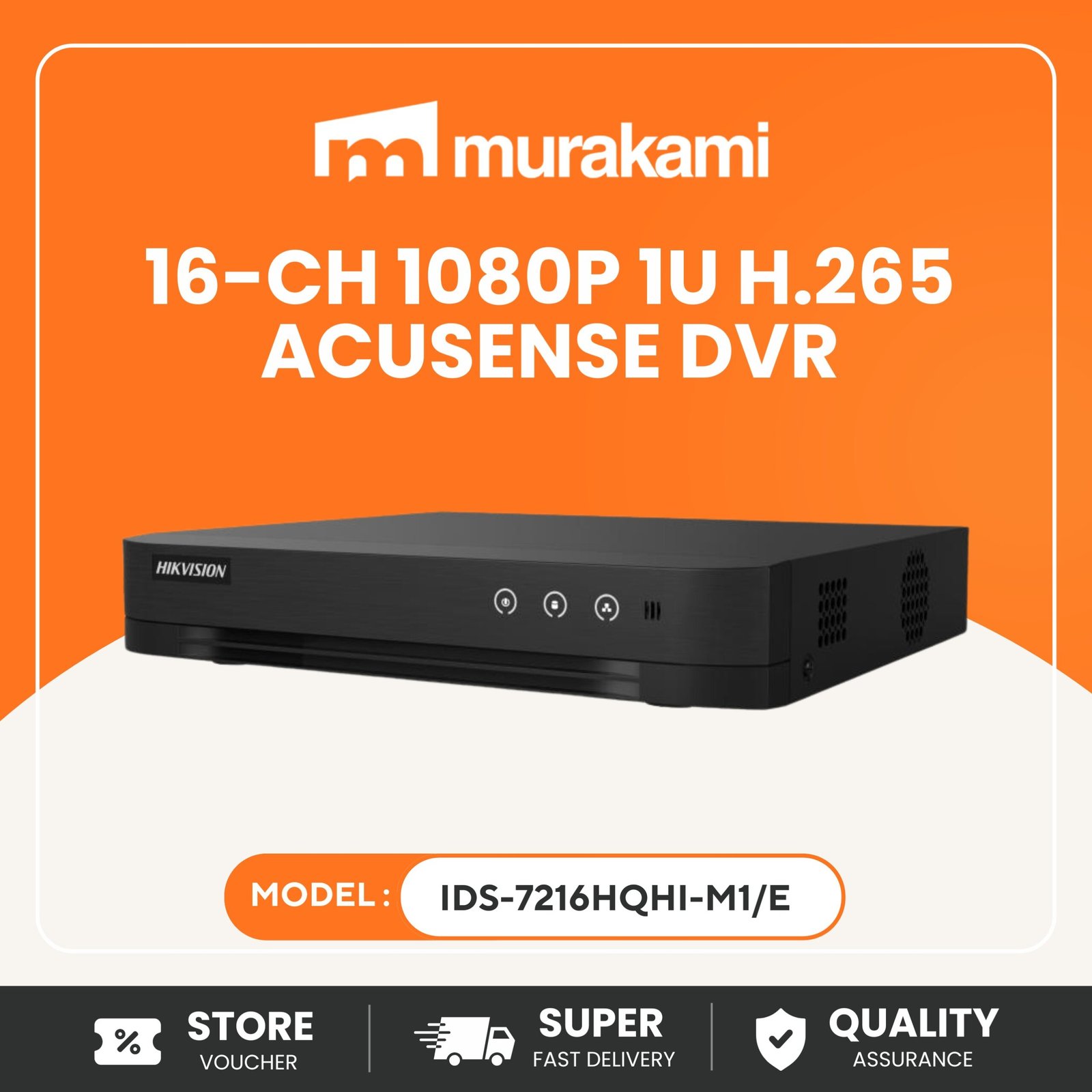

The Hikvision iDS-7216HQHI-M1/E is a powerful 16-channel 4MP Lite AcuSense DVR designed for advanced analog and IP video surveillance systems. It combines deep learning-based analytics, multi-format video input compatibility, and high-efficiency recording technology to deliver reliable and intelligent security management for homes, offices, commercial buildings, and industrial facilities.
With its AcuSense AI engine, Motion Detection 2.0, and perimeter protection features, this DVR significantly reduces false alarms while improving detection accuracy for human and vehicle targets.
Intelligent AcuSense AI Technology
At the heart of the Hikvision iDS-7216HQHI-M1/E is deep learning-based AcuSense technology, which enhances traditional motion detection systems by classifying objects intelligently.
AI Detection Benefits:
- Human and vehicle classification
- Reduced false alarms from rain, shadows, or moving objects
- Faster event search and playback
- Improved security efficiency
This ensures that users only receive meaningful alerts, making surveillance more effective and less time-consuming.
Advanced Motion Detection 2.0
The Hikvision iDS-7216HQHI-M1/E DVR features Motion Detection 2.0, which is enabled by default across all analog channels. It uses AI-based analysis to differentiate between real threats and irrelevant motion.
Key Advantages:
- Detects human and vehicle movement accurately
- Filters out non-relevant triggers like leaves or light changes
- Supports quick event-based searching
- Reduces unnecessary recording and alerts
This improves system reliability and reduces storage consumption.
Perimeter Protection for Enhanced Security
The Hikvision iDS-7216HQHI-M1/E supports deep learning-based perimeter protection, providing intelligent surveillance for restricted areas.
Perimeter Features:
- Line crossing detection
- Intrusion detection (up to 4 channels)
- Real-time alert notifications
- AI-based target classification
This makes it ideal for monitoring boundaries, fences, and entry points.
Flexible 16-Channel Video Input System
Hikvision iDS-7216HQHI-M1/E DVR supports a wide range of analog and IP camera formats, making it highly versatile for different security setups.
Video Input Support:
- 16-channel analog BNC input
- HDTVI, AHD, HDCVI, and CVBS compatibility
- IP camera support up to 24 channels (enhanced IP mode)
- Up to 6MP IP resolution support
This flexibility allows users to upgrade or mix existing surveillance systems easily.
High-Quality Video Output and Display
The Hikvision iDS-7216HQHI-M1/E DVR supports high-resolution display output for clear monitoring.
Display Features:
- HDMI output up to 4K resolution (3840 × 2160)
- VGA output up to 1080p
- Multiple resolution options for monitors
- Smooth live view and playback
This ensures clear and detailed monitoring of all connected cameras.
Efficient H.265+ Video Compression
To optimize storage and network usage, the Hikvision iDS-7216HQHI-M1/E DVR supports H.265 Pro+ compression technology.
Compression Benefits:
- Reduced storage requirements
- Lower bandwidth usage
- Longer recording duration
- High-quality video retention
This makes the system more cost-effective for long-term surveillance.
Powerful Recording and Playback Capability
The Hikvision iDS-7216HQHI-M1/E DVR supports synchronous playback of up to 16 channels, making it easy to review multiple camera feeds simultaneously.
Recording Features:
- Supports multiple resolution modes (up to 5MP Lite / 3K Lite)
- Flexible frame rate options
- Dual-stream recording support
- Smooth playback for incident review
This enhances investigation efficiency and evidence retrieval.
Audio Support via Coaxial Cable
The system supports audio transmission over coaxial cable, allowing synchronized video and audio recording.
Audio Features:
- RCA audio input/output
- 16-channel audio via coaxial cable
- Two-way audio support
- Clear sound recording
This provides better situational awareness and evidence quality.
Network and Remote Access
The Hikvision iDS-7216HQHI-M1/E DVR supports advanced network connectivity for remote monitoring and management.
Network Features:
- Up to 128 Mbps incoming bandwidth
- Remote connection support (up to 128 users)
- Hik-Connect mobile app compatibility
- ONVIF support for third-party integration
- Gigabit Ethernet interface
Users can monitor live footage or playback recordings from anywhere.
Storage and Expansion Capability
The Hikvision iDS-7216HQHI-M1/E offers flexible storage options for extended recording needs.
Storage Features:
- 1 SATA interface
- Supports up to 10TB per HDD
- USB backup via 2 × USB 2.0 ports
- Efficient storage management system
This ensures long-term video retention for security analysis.
Reliable Design and Performance
Built with durability and stability in mind, the DVR is suitable for continuous operation in demanding environments.
General Specifications:
- Operating temperature: -10°C to +55°C
- Compact metal housing design
- Low power consumption (≤24W)
- Stable 24/7 performance
This ensures dependable operation for professional surveillance systems.
Wide Application Use Cases
The Hikvision iDS-7216HQHI-M1/Eis suitable for a variety of security environments.
Common Applications:
- Residential CCTV systems
- Office buildings and corporate security
- Retail stores and shopping centers
- Warehouses and industrial facilities
- Parking lots and perimeter surveillance
Its flexibility makes it ideal for both small and large-scale security setups.
Key Features Summary
- 16-channel 4MP Lite AcuSense DVR
- Motion Detection 2.0 with human/vehicle classification
- Deep learning-based perimeter protection
- H.265 Pro+/H.265 compression support
- Up to 24 IP camera inputs (6MP max)
- HDMI 4K output support
- Audio via coaxial cable
- 128 Mbps bandwidth capacity
- 1 SATA HDD support up to 10TB
- Hik-Connect remote access support
Conclusion
The Hikvision iDS-7216HQHI-M1/E is a highly intelligent and versatile DVR designed for modern surveillance systems. With AcuSense AI technology, Motion Detection 2.0, perimeter protection, and hybrid camera support, it delivers accurate monitoring and efficient security management.
Whether used in homes, offices, or large commercial environments, this DVR provides reliable performance, reduced false alarms, and advanced video analytics—making it a powerful solution for professional security applications.
