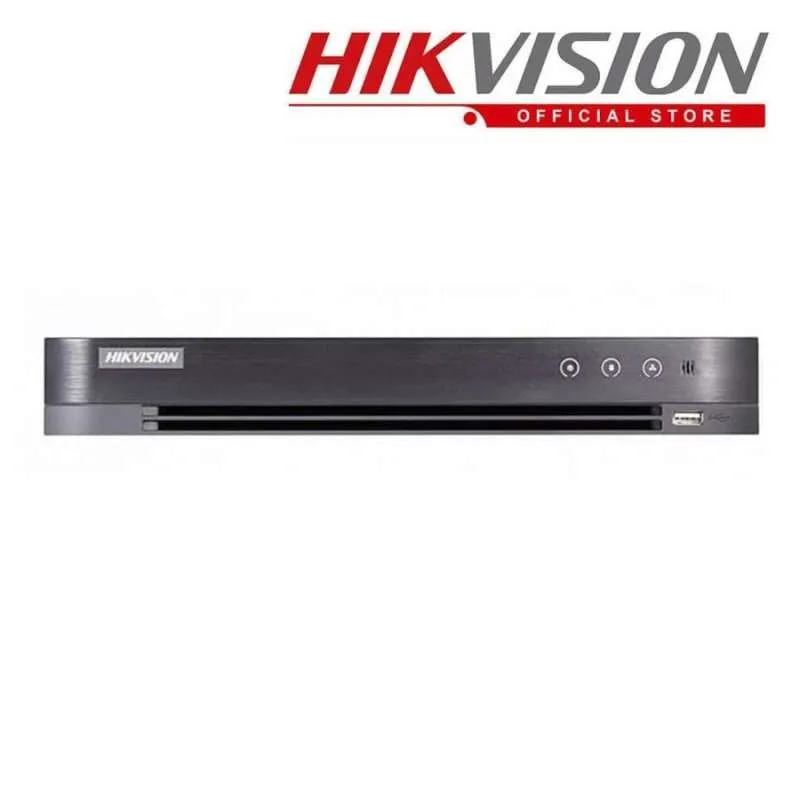

HIKVISION iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR - Image 1

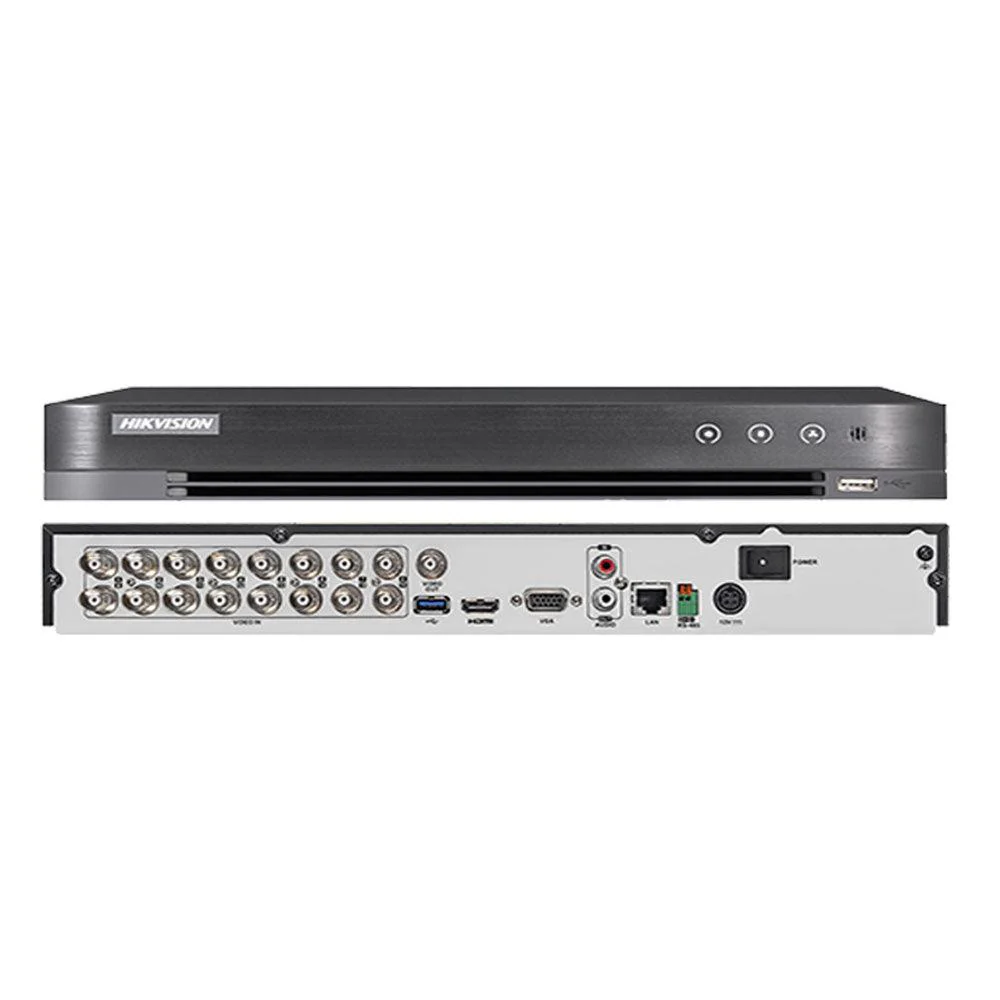

HIKVISION iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR - Image 2
HIKVISION iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR - Image 3
HIKVISION iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR - Image 1HIKVISION iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR - Image 2HIKVISION iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR - Image 3
1 in stock

HIKVISION iDS-7216HQHI-M1/S 16-ch 1080p 1U H.265 AcuSense DVR

Tags: , ,

Rating: 4 out of 5.
Original price was: ₱32,780.70.Current price is: ₱8,515.00.

Inclusive of VAT

  • Recording
    • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Encoding Resolution: 4MP
    • Video Bitrate: 32 Kbps to 6 Mbps
    • Dual-Stream: Support
    • Stream Type: Video, Video & Audio
    • Audio Compression: G.711u
    • Audio Bitrate: 64 Kbps
  • Video And Audio
    • P Video Input: 8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
    • Analog Video Input: 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    • HDMI Output: Yes
    • CVBS Input: PAL/NTSC
    • CVBS Output
    • 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
    • Synchronous Playback: 16-ch
    • AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
    • HDCVI Input
    • 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
    • *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.
    • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
    • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Decoding
    • Recording Resolution
    • Main stream:
    • When 1080p lite mode not enabled:
    • For 4 MP stream access:
    • 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    • For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
    • For 1080p stream access:
    • 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • When 1080p Lite mode enabled:
    • 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • Sub-stream:
    • WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
  • Network
    • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    • Remote Connection: 128
    • Network Interface
    • 1,RJ45 10M/100M/1000M self-adaptive
    • Ethernet interface
  • Auxiliary Interface
    • SATA: 1 SATA interface
    • Capacity: Up to 10 TB capacity for each disk
    • Serial Interface: RS-485 (half-duplex)
    • USB Interface
    • 1 × USB 2.0；
    • 1 × USB 3.0
    • Alarm In/Out: No
  • General
    • Power Supply: 12 VDC
    • Consumption: ≤ 24 W
    • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
    • Working Humidity: ≤ 24 W
    • Chassis: 1U(315mm)
    • Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
    • ≤ 2 kg (4.4 lb)

  • Recording
    • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    • Encoding Resolution: 4MP
    • Video Bitrate: 32 Kbps to 6 Mbps
    • Dual-Stream: Support
    • Stream Type: Video, Video & Audio
    • Audio Compression: G.711u
    • Audio Bitrate: 64 Kbps
  • Video And Audio
    • P Video Input: 8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
    • Analog Video Input: 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    • HDMI Output: Yes
    • CVBS Input: PAL/NTSC
    • CVBS Output
    • 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
    • Synchronous Playback: 16-ch
    • AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
    • HDCVI Input
    • 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
    • *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.
    • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
    • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Decoding
    • Recording Resolution
    • Main stream:
    • When 1080p lite mode not enabled:
    • For 4 MP stream access:
    • 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    • For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
    • For 1080p stream access:
    • 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • When 1080p Lite mode enabled:
    • 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • Sub-stream:
    • WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
  • Network
    • Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    • Remote Connection: 128
    • Network Interface
    • 1,RJ45 10M/100M/1000M self-adaptive
    • Ethernet interface
  • Auxiliary Interface
    • SATA: 1 SATA interface
    • Capacity: Up to 10 TB capacity for each disk
    • Serial Interface: RS-485 (half-duplex)
    • USB Interface
    • 1 × USB 2.0；
    • 1 × USB 3.0
    • Alarm In/Out: No
  • General
    • Power Supply: 12 VDC
    • Consumption: ≤ 24 W
    • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
    • Working Humidity: ≤ 24 W
    • Chassis: 1U(315mm)
    • Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
    • ≤ 2 kg (4.4 lb)

Attributes Value
Weight 2000 kg
Dimensions 0.242 × 0.315 × 0.045 cm
