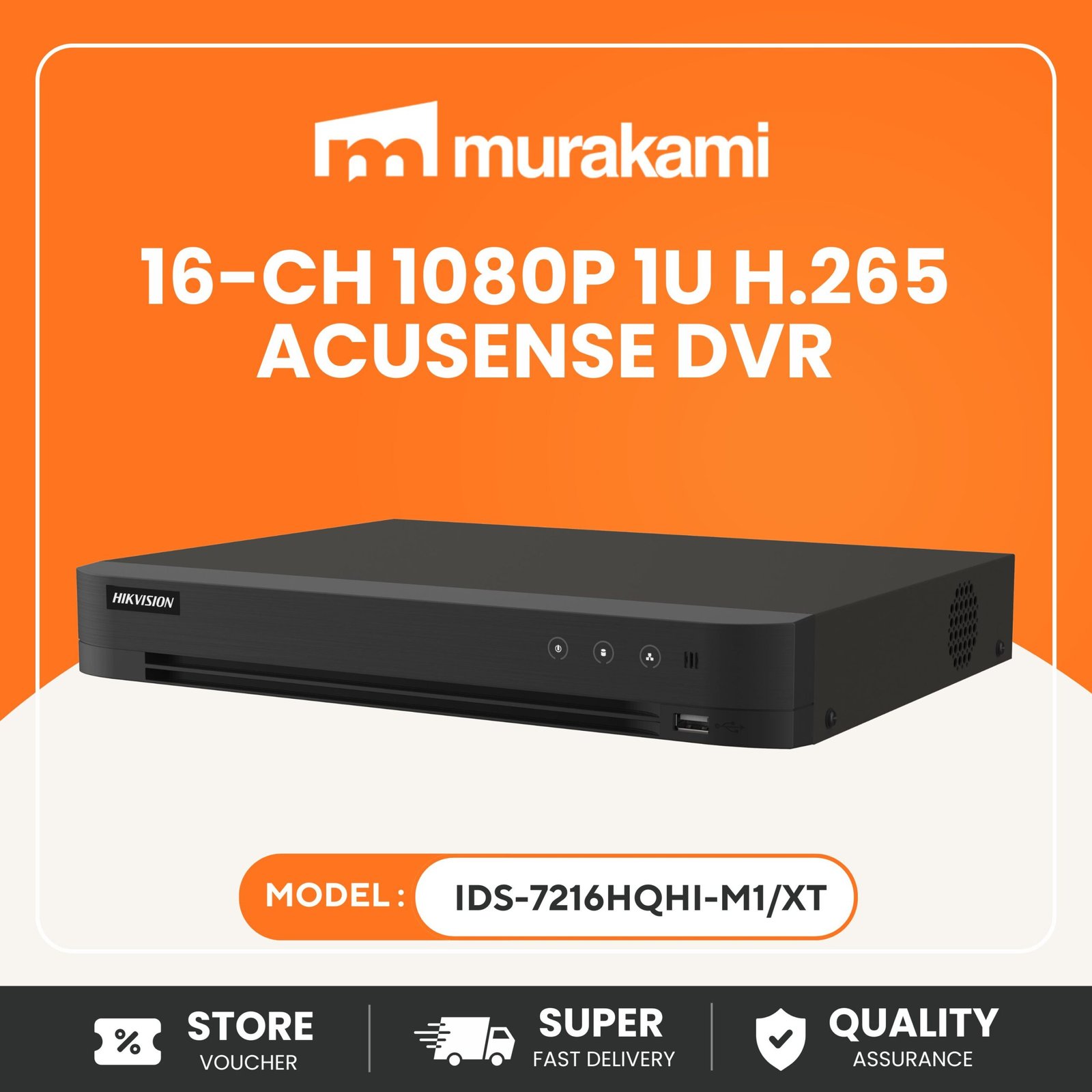

Hikvision (iDS-7216HQHI-M1/XT)

The Hikvision (iDS-7216HQHI-M1/XT) is a high-performance, intelligent Digital Video Recorder (DVR) designed to bring advanced deep-learning capabilities to traditional analog surveillance infrastructures. As part of the AcuSense family, this 16-channel DVR is engineered for users who need to manage a larger number of cameras while significantly reducing the workload of manual monitoring. By utilizing artificial intelligence to distinguish between human/vehicle targets and environmental noise, it provides a proactive security solution for medium-to-large residential estates, commercial office buildings, and retail environments.

---

Intelligence Powered by AcuSense: Motion Detection 2.0

The Hikvision (iDS-7216HQHI-M1/XT) “iDS” prefix identifies this as an intelligent series DVR, featuring Hikvision’s flagship AcuSense technology. The primary challenge with standard motion detection is “false alarms” triggered by pets, moving trees, or heavy rain. The iDS-7216HQHI-M1/XT solves this through:

• Human and Vehicle Classification: Deep-learning algorithms analyze the video stream in real-time to identify the specific shapes of humans and vehicles. This ensures that security alerts are only triggered by relevant threats.

• Motion Detection 2.0: This feature is enabled for all 16 analog channels by default. It allows users to quickly search through hours of recorded footage by filtering for human or vehicle activity, drastically reducing the time required for post-event investigations.

• Perimeter Protection: On specific channels, the DVR can support advanced line-crossing and intrusion detection, creating a virtual “fence” around a property that is far more reliable than traditional motion-sensing technology.

---

High-Resolution Performance and Pentabrid Versatility

The Hikvision (iDS-7216HQHI-M1/XT) is a Pentabrid recorder, offering extreme flexibility for system integration. It can accept signals from five different sources, making it the perfect hub for both legacy and modern cameras:

• HDTVI: Supports up to 4MP Lite resolution (at 15fps) and 1080p.

• AHD & CVI: Compatible with high-definition signals from other manufacturers.

• CVBS: Supports standard analog cameras.

• IP Cameras: In addition to the 16 analog channels, this DVR can connect up to 8 additional IP cameras (or up to 24-ch if analog channels are disabled), supporting resolutions up to 6MP.

The unit supports 1080p resolution for recording, providing the sharp clarity required to identify faces, clothing patterns, and vehicle details across all 16 channels.

---

Efficiency and Storage: H.265 Pro+ Technology

Managing the data from 16 high-definition cameras requires efficient storage management.  Hikvision (iDS-7216HQHI-M1/XT) utilizes H.265 Pro+ compression, which is the most advanced codec in the industry:

• Maximized Storage: H.265 Pro+ reduces the bitrate of the video based on the complexity of the scene. In a typical surveillance environment, this can result in up to a 75-80% reduction in storage consumption compared to H.264.

• Bandwidth Optimization: Lower bitrates mean smoother remote viewing on the Hik-Connect app, even in areas with limited upload speeds.

• HDD Support: The DVR features a single SATA interface that supports a hard drive with a capacity of up to 10 TB, providing ample space for long-term video retention.

---

Advanced Connectivity and Audio Over Coax

To simplify installation, the Hikvision (iDS-7216HQHI-M1/XT) supports Audio over Coaxial Cable. Historically, capturing audio required running extra cables for every camera. With this DVR and compatible Hikvision (iDS-7216HQHI-M1/XT) cameras, both the video and the audio signals are transmitted over the same BNC cable. This reduces material costs and labor time while providing a complete audio-visual record of every event.

The rear panel includes:

• HDMI/VGA Output: Simultaneous output with HDMI supporting up to 4K (3840 × 2160) resolution to ensure that even on large monitors, the 16-split screen remains clear.

• Dual USB Ports: Conveniently located for mouse control and quick data backup to external drives.

---

📌 TECHNICAL SPECIFICATIONS TABLE

Feature	Specification
Analog Video Input	16-ch BNC Interface
IP Video Input	8-ch (up to 24-ch) up to 6MP Resolution
Encoding Resolution	4MP Lite / 1080p / 720p / WD1 / 4CIF
Compression	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Storage	1 SATA Interface (up to 10 TB)
Display Output	HDMI (4K) and VGA (1080p)
Intelligent Analytics	Deep Learning-based Motion Detection 2.0
Audio Input	1-ch RCA (and 16-ch via Coaxial Cable)
Network Interface	1, RJ45 10/100/1000 Mbps self-adaptive

---

📌 STRATEGIC APPLICATIONS

• Commercial Offices: Monitor multiple hallways, entrances, and parking zones. Use AcuSense to ignore movement from elevators or automatic doors while focusing on human intrusion.

• Large Residential Properties: Cover the entire perimeter of a home and garden. The 16-channel capacity allows for comprehensive coverage of every blind spot.

• Retail Management: Monitor multiple aisles and point-of-sale terminals. The Audio over Coax feature is vital for resolving disputes at the register.

• Warehouse Logistics: Keep an eye on loading docks and inventory shelves. 1080p clarity ensures that package labels and vehicle movements are clearly documented.

---

📌 CONCLUSION

The Hikvision (iDS-7216HQHI-M1/XT) is a powerful and reliable solution for those who require high-density surveillance without the complexity of a full IP migration. By integrating Motion Detection 2.0, 4K display output, and H.265 Pro+ efficiency, it offers a professional-grade experience that is both smart and cost-effective. For any facility looking to upgrade to 16 channels of intelligent, high-definition recording, this AcuSense DVR stands as a definitive choice.

---
