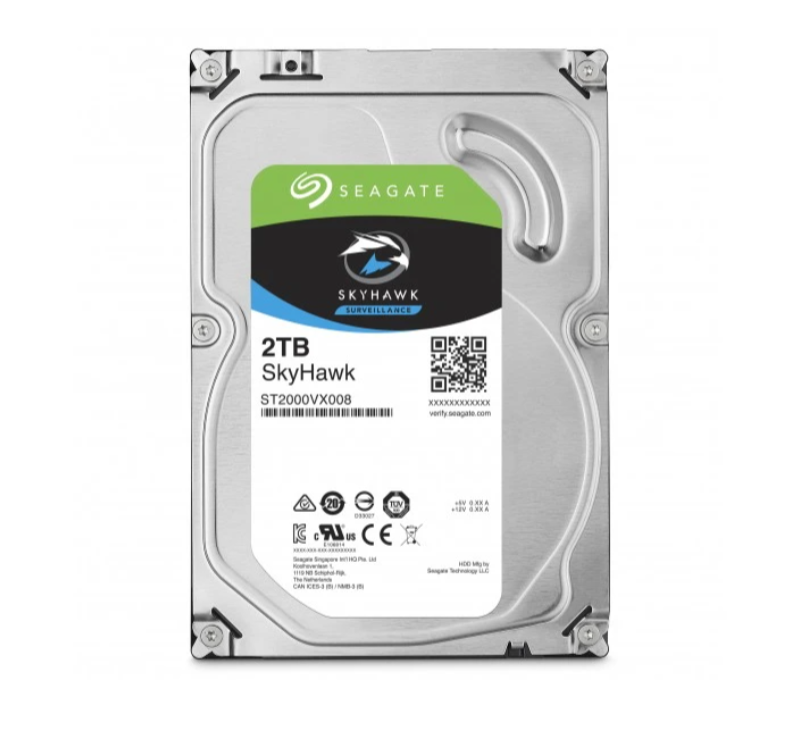

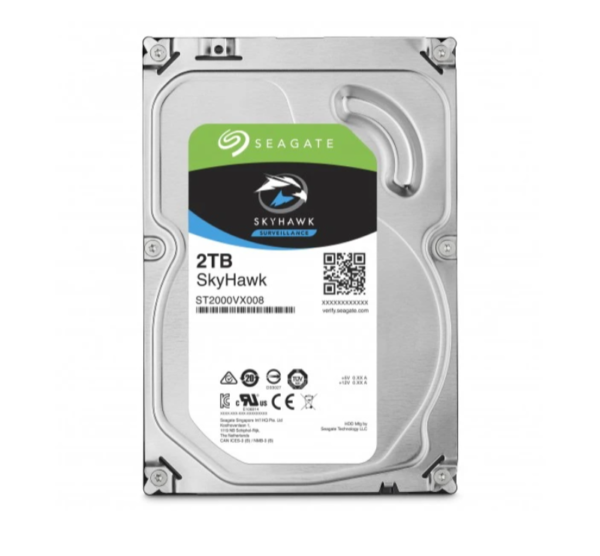

Hikvision Seagate ST2000VX016 (2TB) Hard Disk

​The Seagate SkyHawk ST2000VX016 is a 2TB hard drive specifically engineered for surveillance applications, offering reliable storage for continuous, high-definition video recording. Below are its key specifications

• Model Number: ST2000VX016​

• Capacity: 2TB​

• Interface: SATA 6 Gb/s​

• Form Factor: 3.5-inch

• Cache Memory: 256MB​

Performance:

• Spindle Speed: 5,400 RPM​

• Maximum Sustained Data Transfer Rate: Up to 180 MB/s​

• Average Latency: 5.1 ms​

Reliability and Data Integrity:

• Workload Rate Limit: 180 TB/year​

• Mean Time Between Failures (MTBF): 1 million hours​

• Load/Unload Cycles: 600,000

• Non-Recoverable Read Errors per Bits Read: 1 per 10^14​

Power Management:

• Startup Current (12V): 1.8A​

• Average Operating Power: 3.7W​

• Idle Average Power: 2.5W

• Standby/Sleep Mode Power: 0.25W​

• Operating Temperature: 0°C to 65°C​

• Non-Operating Temperature: -40°C to 70°C​

• Operating Vibration: 5–500 Hz at 0.25 Gs

• Non-Operating Vibration: 5–500 Hz at 3.0 Gs​

• Operating Shock: Up to 70 Gs​

• Non-Operating Shock: Up to 250 Gs

Physical Dimensions:

• Height: 20.2 mm (0.795 in)​

• Width: 101.6 mm (4.0 in)​

• Depth: 146.99 mm (5.787 in)​

• Weight: Approximately 415g (0.915 lb)​
