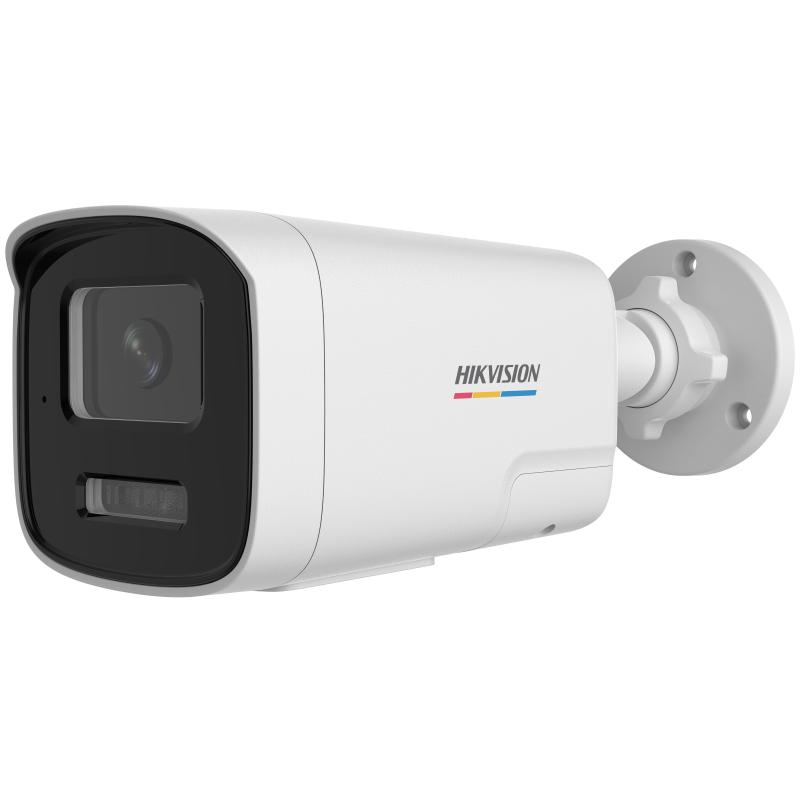

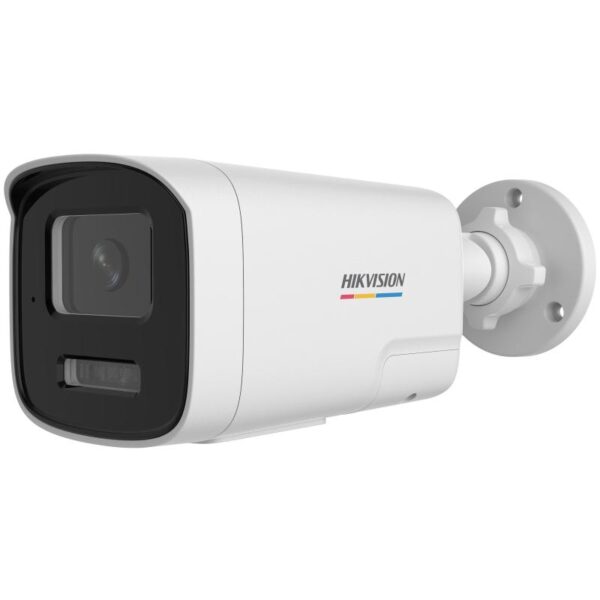

IP Camera ColorVu (DS-2CD1T27G2H-LIUF)

SKU: DS-2CD1T27G2H-LIUF (2.8 mm)

1 in stock

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 143°
4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110°
Lens MountM12
Iris TypeFixed
ApertureF1.0

DORI
DORI
2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio TypeMono sound
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsIPv4，IPv6，TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Image EnhancementBLC,HLC,3D DNR
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in MicrophoneYes,1 built-in microphone
Reset Key-F: Yes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to memory card (-F model supports), trigger recording (-F model supports), upload to FTP,notify surveillance center,send email,trigger capture

General
Power
12 VDC ± 25%, 0.52 A, max. 6.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
MaterialFront cover: metal, body: plastic, bracket: plastic
Dimension81 mm × 83.7 mm × 201.96 mm (3.17″ × 3.29″ × 7.95″)
Package Dimension150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
WeightApprox. 550 g (1.2 lb.)
With Package WeightApprox. 800 g (1.8 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013

Attributes	Value
Weight	2 kg
Dimensions	3 × 2 cm
