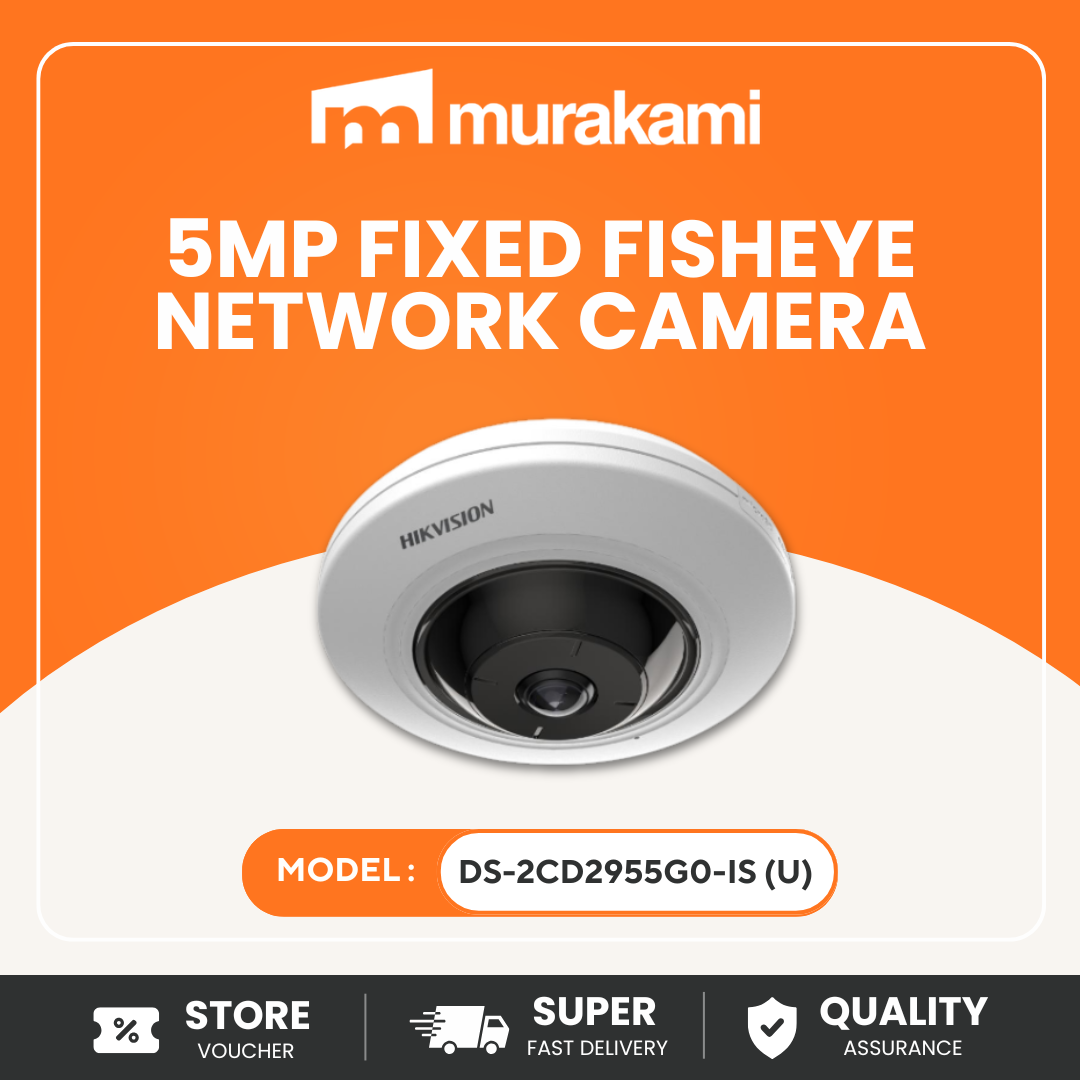

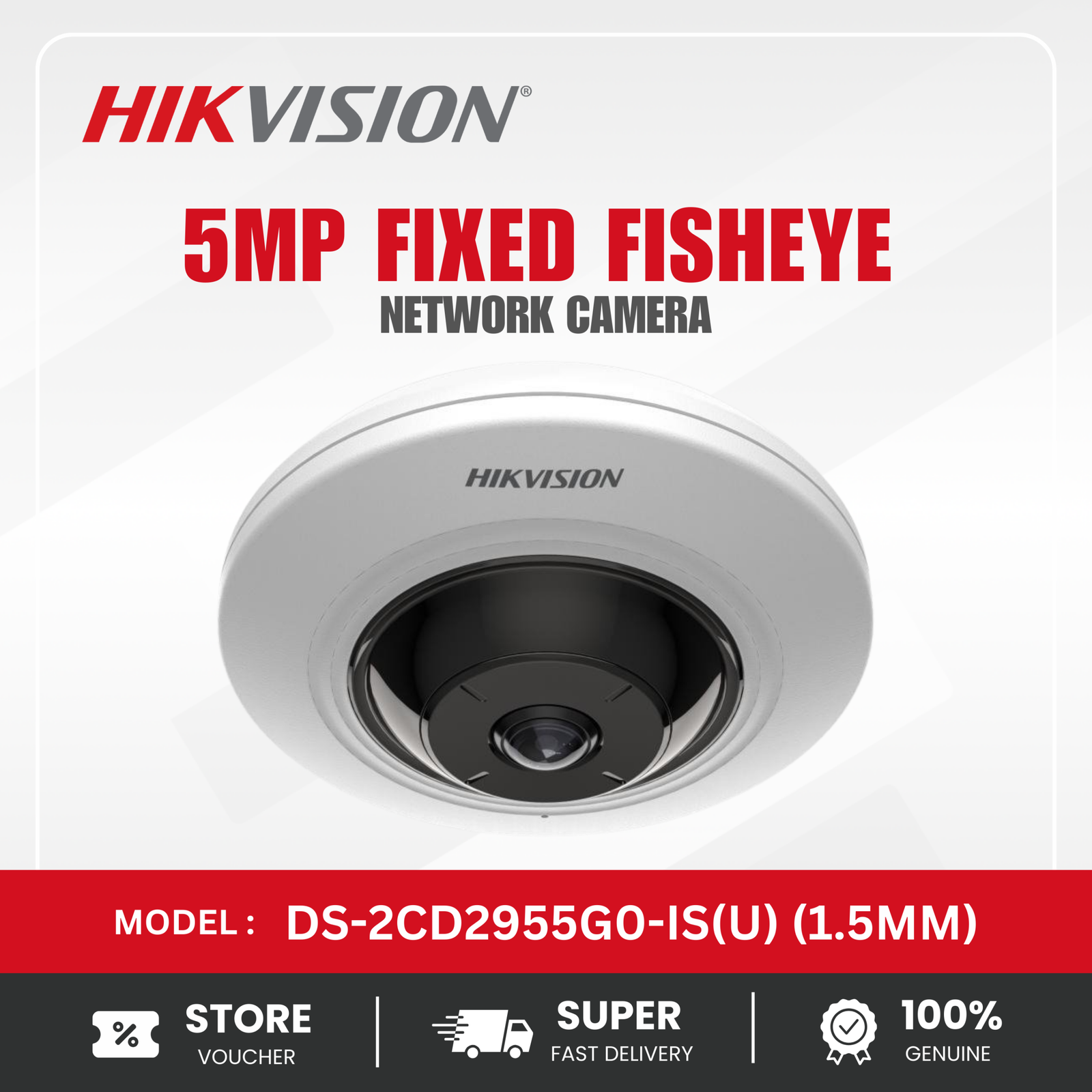

IP Camera 5MP (DS-2CD2955G0-IS) (U)

SKU: DS-2CD2955G0-IS(U) (1.5mm)

Out of stock

Lens
Lens TypeFixed focal lens, 1.05 mm
Focal Length & FOV1.05 mm, horizontal FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
FocusFixed
Lens MountM12
Iris TypeFixed
ApertureF2.25
Depth of Field0.1 m to ∞

Video
Main Stream
50 Hz: 25 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
60 Hz: 30 fps（2560 × 1920, 2048 × 1536, 1280 × 960）
Sub-Stream
50 Hz: 25 fps (640 × 480)
60 Hz: 30 fps (640 × 480)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream

Fisheye Display
Mount TypeSupport wall/table/ceiling mounting
Display Mode
Support 14 display modes in total(including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Audio
Audio TypeMono sound
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711 ulaw/G.711 alawm/16 Kbps (G.722.1)/16 Kbps (G.726)/32~160 Kbps (MP2L2)/16~64Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect,Hik-Central
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Web Browser
Plug-in required live view: IE 10+,
Local service: Chrome 57.0+, Firefox 52.0+
Network StorageNAS (NFS, SMB/CIFS)

Image SettingsRotate mode,saturation,brightness,contrast,sharpness,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,3D DNR
Wide Dynamic Range (WDR)120 dB

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone-U: Yes
Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm1 input, 1 output (max. 12 VDC, 30 A)
Reset KeyYes
Power Output12 VDC, max. 100 mA

Event
Basic EventMotion detection, video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
MaterialADC12
DimensionØ119.9 mm × 41.2 mm (Ø4.7″ × 1.6″)
Package Dimension150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″)
Approx. 320 g (0.7 lb.)
With Package WeightApprox. 500 g (1.1 lb.)
Language13 languages English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
Storage Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-10 °C to 50 °C (-14 °F to 122 °F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat,anti-banding,mirror,password protection

Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
EnvironmentCE-RoHS: 2011/65/EU
