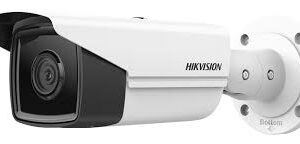

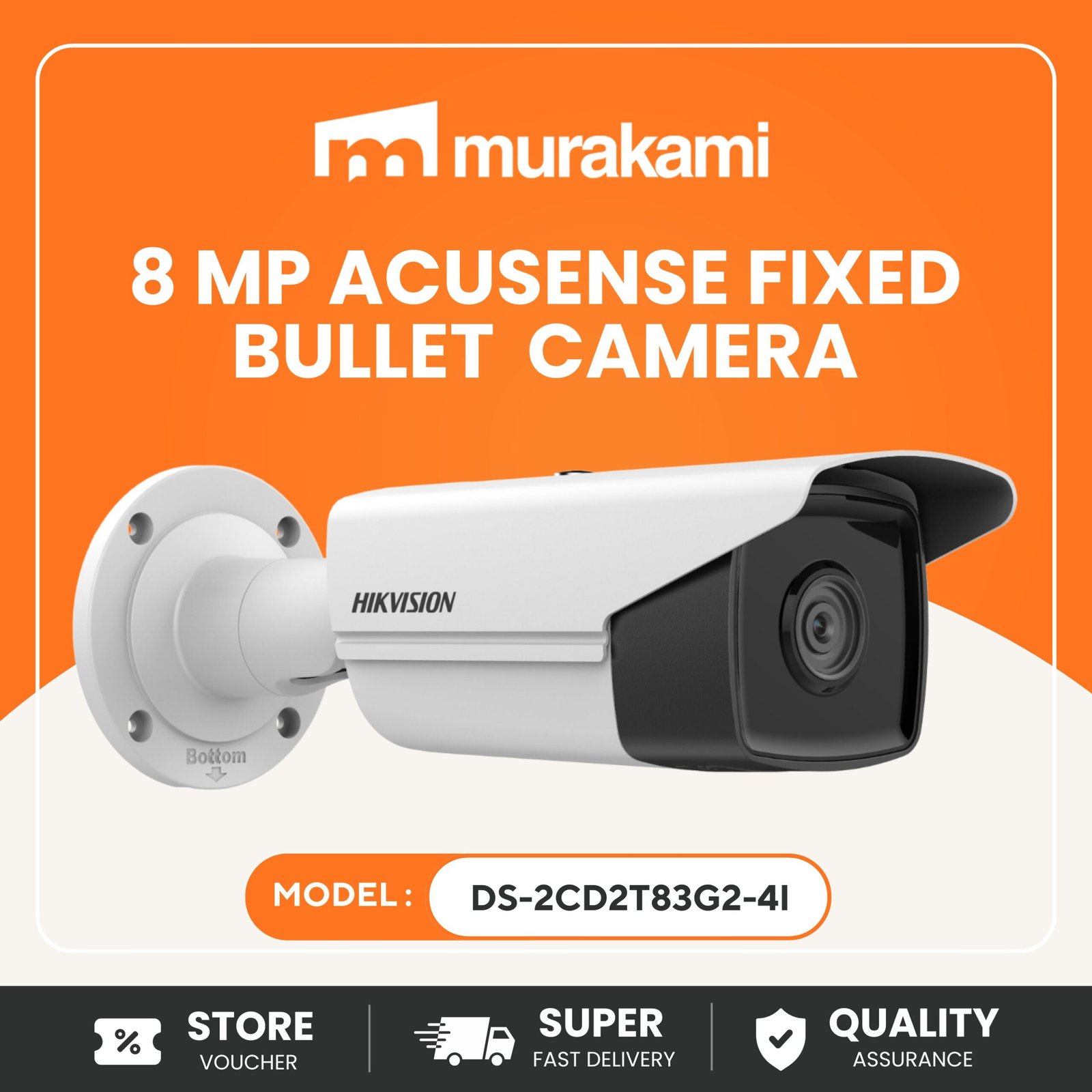

Key Features:

• Image Sensor: 1/2.8″ Progressive Scan CMOS for high image quality.

• Max Resolution: 3840 × 2160 (8 MP) for sharp, detailed footage.

• Low-Light Performance: Minimum illumination is 0.005 Lux (color) at F1.6 with AGC on, and 0 Lux in black & white mode with IR.

• Lens: Fixed 4 mm focal length; wide viewing angle (~87° horizontal, ~46° vertical, ~105° diagonal).

• Aperture: F1.6 for better light capture.

• WDR (Wide Dynamic Range): 120 dB — ensures clear imaging even with challenging lighting or strong backlight.

• Noise Reduction: 3D DNR for cleaner videos.

• IR Illuminator: Smart IR / EXIR light with up to 80 m range for night vision.

• Compression: Supports H.265+, H.265, H.264+, and H.264 — efficient storage and bandwidth usage.

• Streams: 3 video streams for flexibility in quality vs. bandwidth.

• Storage: Built-in microSD / microSDHC / microSDXC slot, up to 256 GB.

• Smart Features / Event Detection:

  • Motion detection (supports video tampering)

  • Smart human / vehicle classification.

  • Line crossing detection, Intrusion detection, Face detection

• Networking: Ethernet 10/100 Mbps, ONVIF support, Hik-Connect, iVMS-4200, etc.

• Protection: Rated IP67 — dust-tight and protected from water / outdoor elements.

• Power:

  • 12 V DC ± 25%

  • PoE (802.3af) support

• Operating Conditions: Works in a wide temperature range, from –30 °C to +60 °C.

• DORI Range (for 4 mm model):

  • Detection: up to 108 m

  • Observation: 43 m

  • Recognition: 22 m

  • Identification: 11 m
