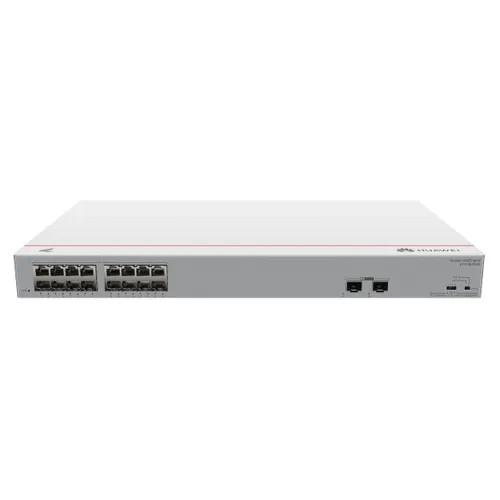

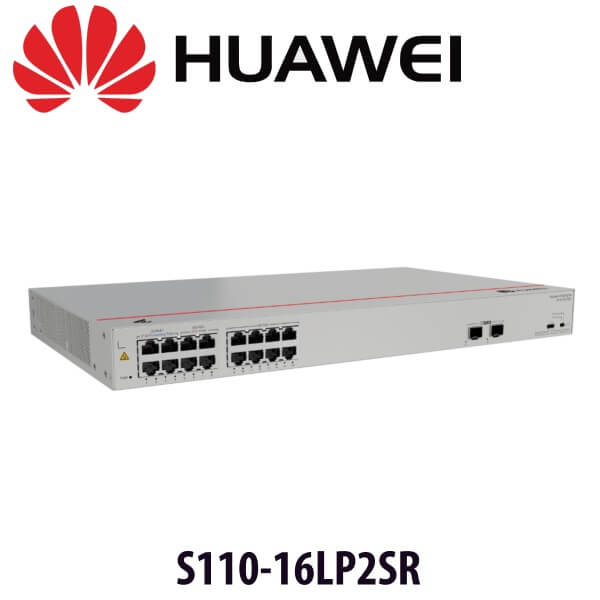

HUAWEI Switch S110-16LP2SR(124W)

The Huawei S110-16LP2SR is a 16-port Gigabit Ethernet (GE) unmanaged switch designed for small to medium-sized enterprises and commercial settings. It features 16 10/100/1000BASE-T ports with Power over Ethernet Plus (PoE+) support, providing a total PoE power budget of 124 W. Additionally, it includes 2 GE SFP uplink ports for flexible network expansion.

Key Specifications:

• Switching Capacity: 36 Gbps
• Packet Forwarding Rate: 26.78 Mpps
• MAC Address Table: 8K entries
• Dimensions (H x W x D): 43.6 mm x 442.0 mm x 260.0 mm
• Weight: Approximately 3.0 kg
• Power Consumption:
  • Without PoE: 22.0 W
  • Full PoE Load: 160.0 W (including 124 W for PoE)
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 5% to 95% (non-condensing)
• Heat Dissipation: Fanless, natural convection

The switch offers four operational modes:

1. Standard Mode: All ports are in the same VLAN with flow control enabled.
2. Port Isolation: Downlink ports are isolated from each other but can communicate with uplink ports.
3. Uplink Aggregation: Combines two uplink optical ports into a trunk interface for load balancing.
4. Flow Control Disabling: Disables flow control while keeping all ports in the same VLAN.

Designed with a fanless architecture, the S110-16LP2SR ensures silent operation and is suitable for noise-sensitive environments. Its PoE+ capability allows it to power devices such as IP cameras, wireless access points, and IP phones directly through Ethernet cables, simplifying network deployment.
