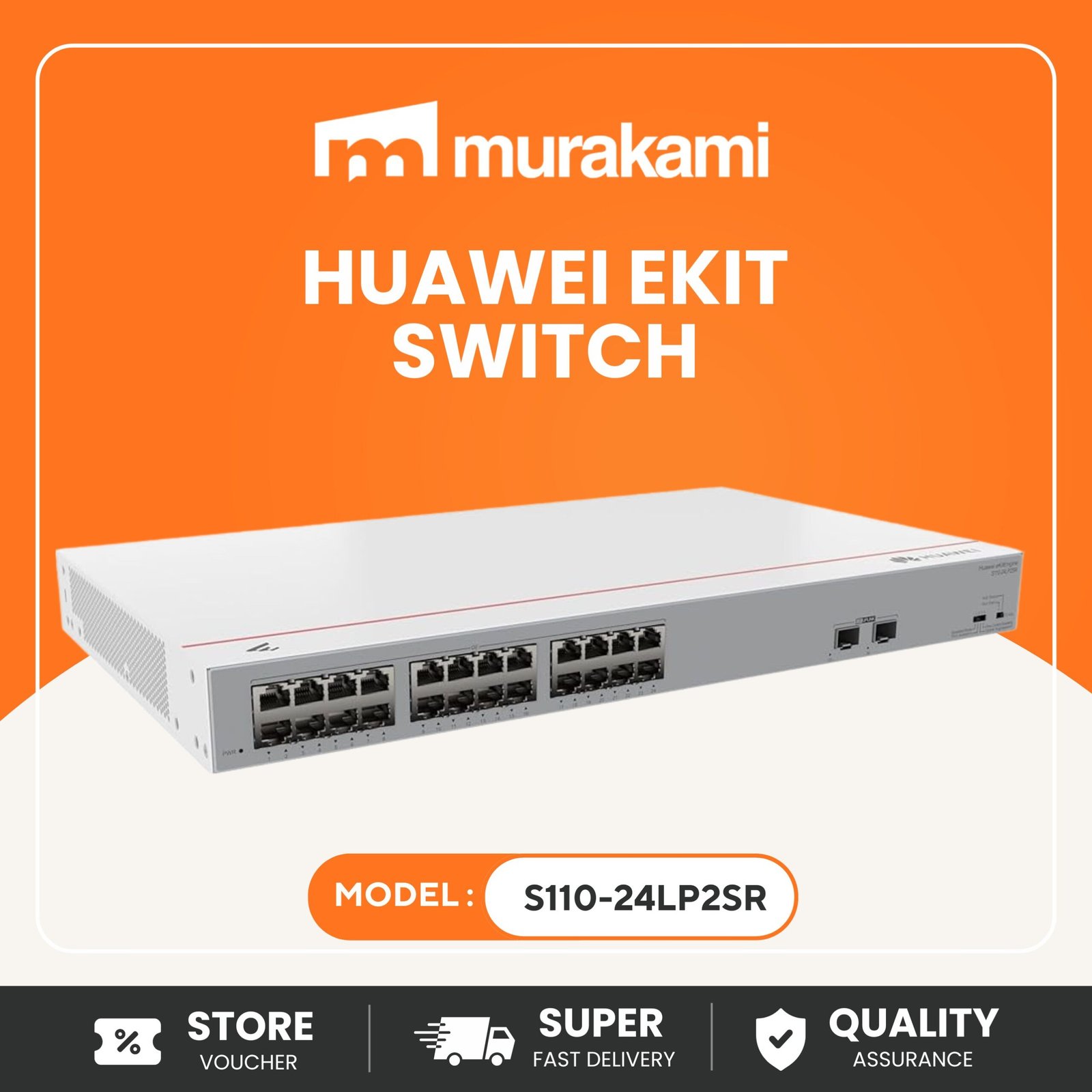

HUAWEI Switch S110-24LP2SR

The Huawei S110-24LP2SR is an unmanaged Gigabit Ethernet switch designed for small to medium-sized enterprises (SMEs) and commercial settings. It offers a blend of performance, flexibility, and ease of use, making it suitable for various networking applications.

Key Specifications:

• Port Configuration:

  • Downlink Ports: 24× 10/100/1000BASE-T Ethernet ports with PoE+ support
  • Uplink Ports: 2× Gigabit SFP optical ports

• Performance:

  • Switching Capacity: 52 Gbps
  • Packet Forwarding Rate: 38.69 Mpps

• Power over Ethernet (PoE+):

  • Total PoE Power Budget: 124 W
  • PoE Standards Supported: IEEE 802.3af/at
  • Full Load PoE Power Consumption: Supports up to 8 ports at 15.4 W (802.3af) or 4 ports at 30 W (802.3at)

• Physical and Environmental:

  • Dimensions (H × W × D): 43.6 mm × 442 mm × 260 mm
  • Weight: Approximately 3.2 kg
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: –40°C to +70°C
  • Operating Humidity: 5% to 95% (non-condensing)

• Power Supply:

  • Input Voltage: 100–240 V AC, 50/60 Hz
  • Maximum Power Consumption: 27 W (without PoE); up to 151 W (with PoE)

Notable Features:

• Multiple Operating Modes: Supports Standard Mode, Port Isolation, Uplink Aggregation, and Flow Control Disabling, selectable via a front-panel switch.
• Fanless Design: Ensures silent operation, ideal for noise-sensitive environments.
• Plug and Play: No configuration required, simplifying deployment.
