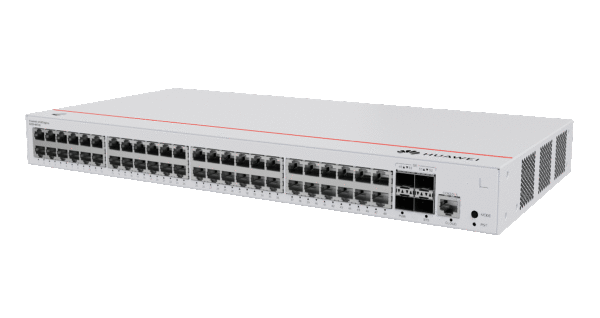

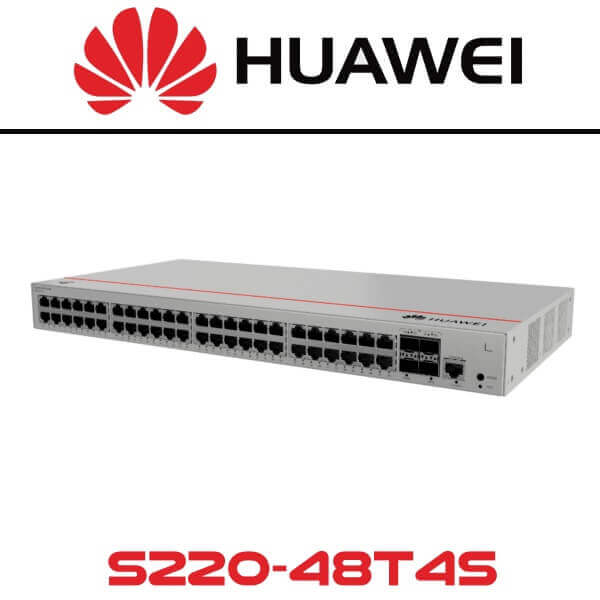

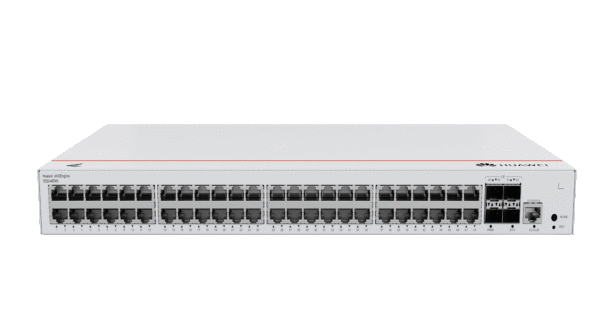

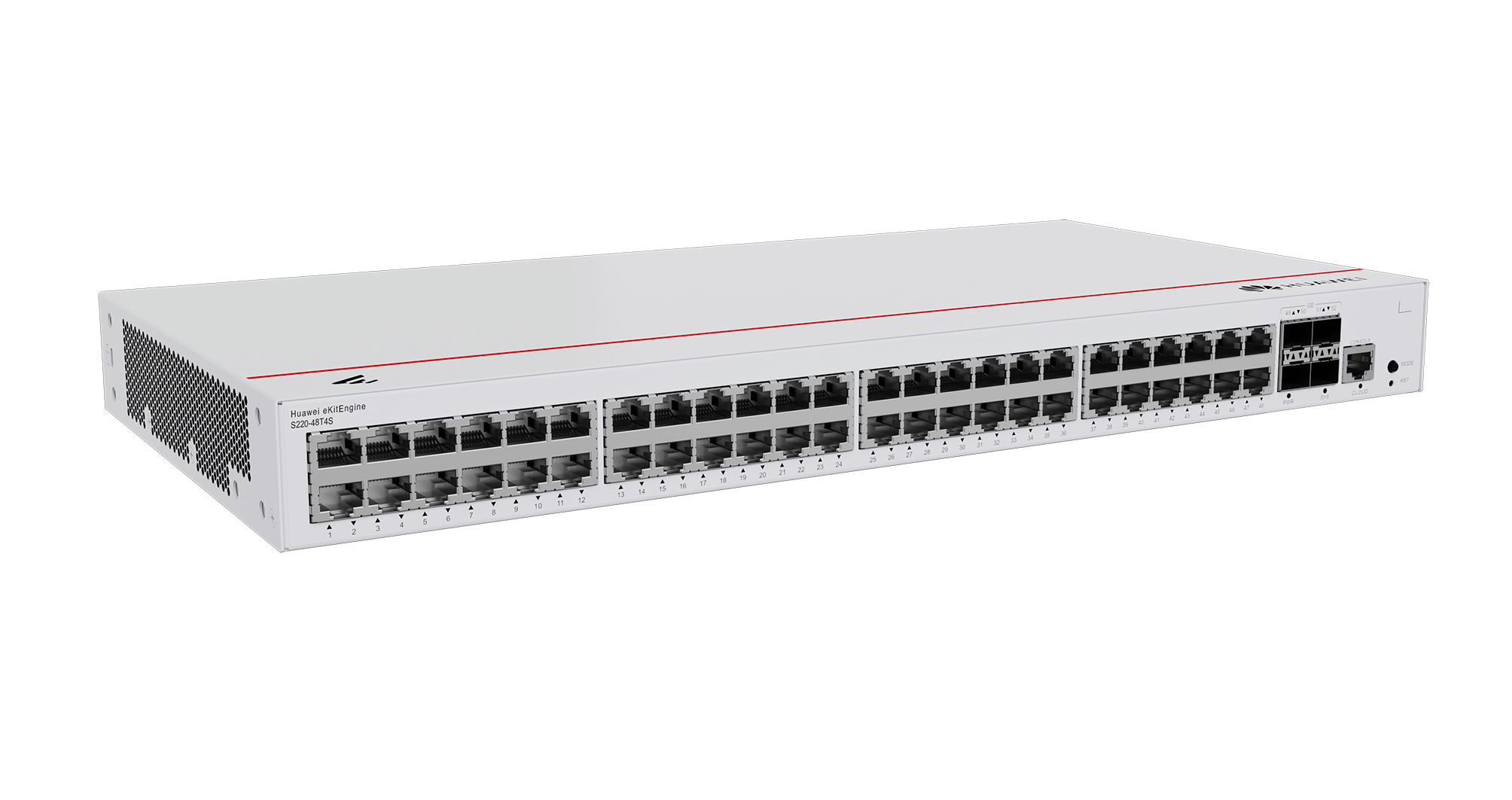

The Huawei S220-48T4S is a managed Gigabit Ethernet switch designed for small to medium-sized businesses, offering reliable and high-speed network connectivity.

Key Specifications:

• Port Configuration:

  • 48 × 10/100/1000BASE-T Ethernet ports
  • 4 × Gigabit SFP (Small Form-factor Pluggable) ports

• Physical Dimensions:

  • Width: 442.0 mm
  • Depth: 220.0 mm
  • Height: 43.6 mm
  • Weight: 2.71 kg

• Power Specifications:

  • AC Input Voltage: 100–240 V
  • AC Input Frequency: 50/60 Hz
  • Typical Power Consumption: 36.15 W
  • Maximum Power Consumption: 43.3 W

• Environmental Operating Ranges:

  • Operating Temperature: -5°C to 50°C
  • Storage Temperature: -40°C to 70°C
  • Operating Humidity: 5% to 95% (non-condensing)
  • Operating Altitude: 0 to 5000 meters

• Additional Features:

  • Console Port: RJ-45
  • Housing Material: Metal
  • Form Factor: 1U, suitable for rack mounting
  • LED Indicators for status monitoring
  • Built-in AC power supply
