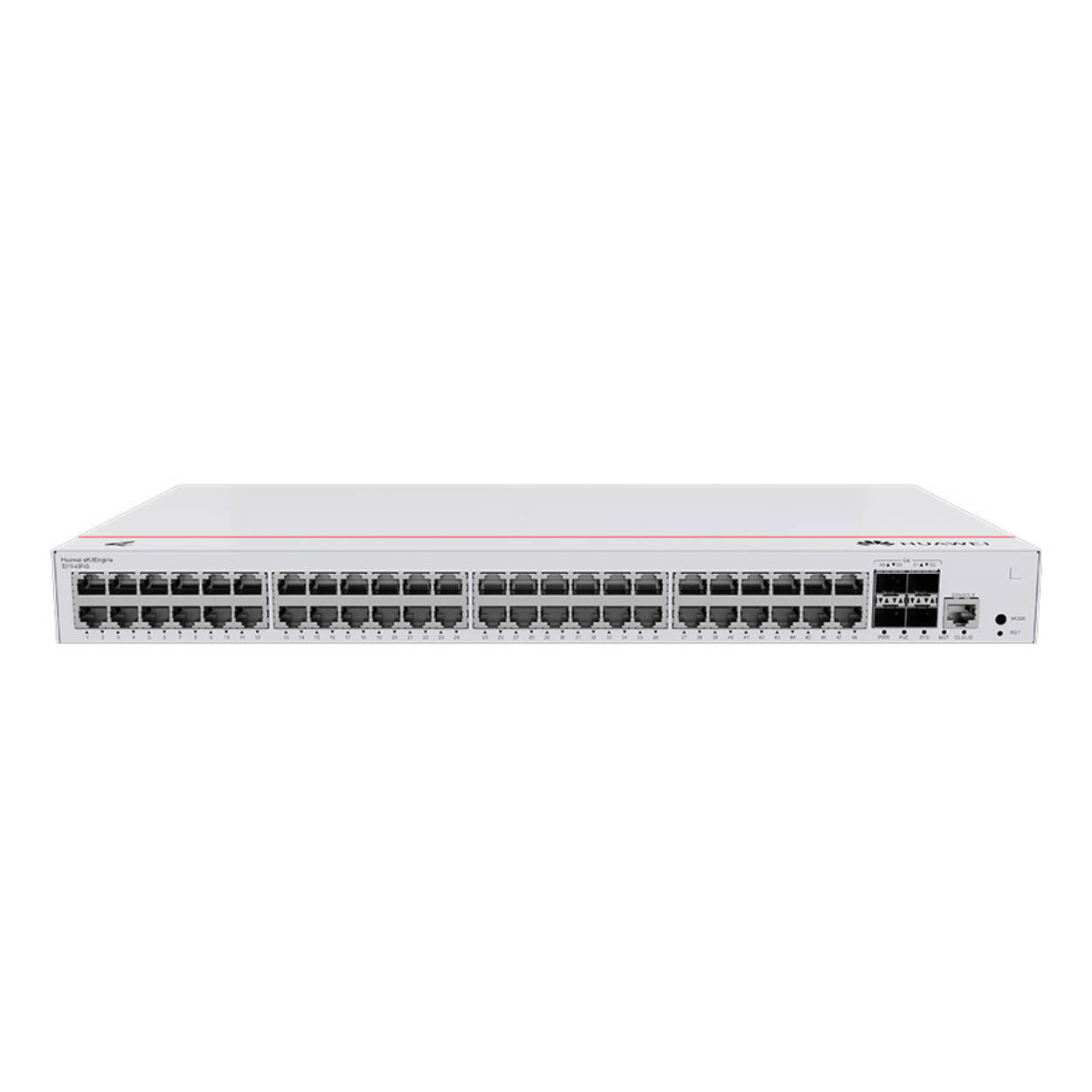

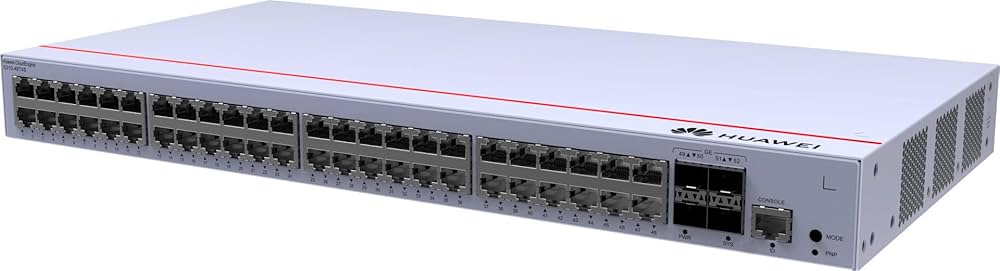

HUAWEI Switch S310-48P4S (380W)

The HUAWEI Switch S310-48P4S is a popular choice for enterprise networks, offering a good balance of features and performance. Here’s a summary of its key specifications:

Ports:

• 48 x 10/100/1000BASE-T ports (PoE+)
• 4 x GE SFP ports

Power over Ethernet (PoE):

• 380W PoE+ power budget, supporting 802.3af and 802.3at standards

Switching Capacity:

• 128 Gbps

Forwarding Rate:

• 96 Mpps

Other Features:

• Layer 2 and Layer 3 features
• VLAN support
• QoS (Quality of Service)
• Security features
• Energy-saving technologies

Power Consumption:

• Maximum power consumption: 462.80 W (with full PoE load)

Dimensions and Weight:

• Dimensions (H x W x D): 43.6 mm x 442.0 mm x 220.0 mm
• Weight: 3.24 kg (without packaging)

Additional Information:

• Built-in AC power supply
• Rack-mountable (1U)
• Operating temperature: -5°C to +50°C
• MTBF (Mean Time Between Failures): 48.14 years

Where to Find More Detailed Specs:

• Huawei’s Official Website: The best source for detailed and up-to-date specifications is Huawei’s official website. You can often find datasheets, hardware guides, and other technical documentation there.
• Online Retailers: Many online retailers that sell networking equipment will also list the specifications of the S310-48P4S. Check major electronics retailers or specialized networking equipment suppliers.
