Sale!

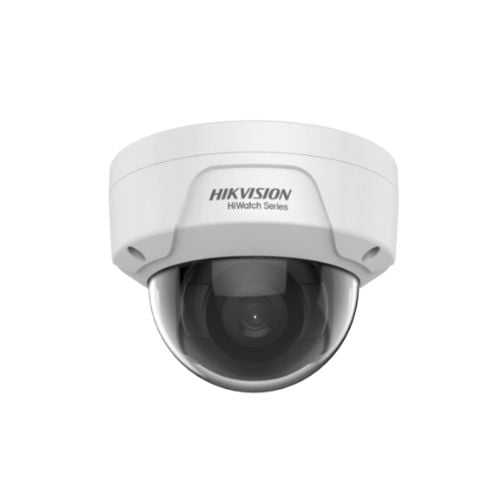

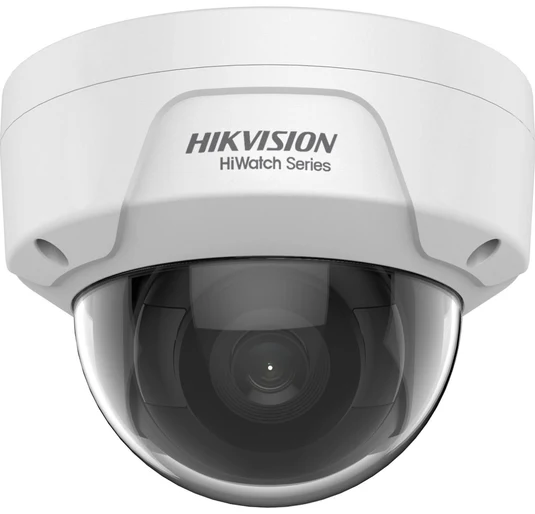

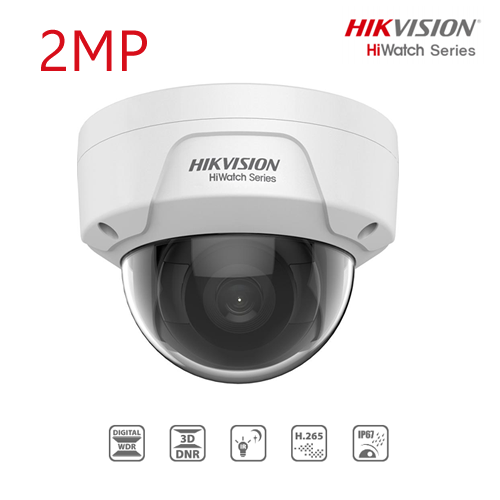

IPC and NVR (HWI-D121H (2.8mm) (C)
IPC and NVR (HWI-D121H (2.8mm) (C) - Image 2
IPC and NVR (HWI-D121H (2.8mm) (C) - Image 3
IPC and NVR (HWI-D121H (2.8mm) (C) - Image 4
2 in stock

IPC and NVR (HWI-D121H (2.8mm) (C)

SKU: HWI-D121H (2.8mm) (C)
Category: , , ,
Original price was: ₱3,508.80.Current price is: ₱1,977.92.

Model: HWI-D121H (2.8mm) (C)

Features

  • 1/2.8″ progressive scan CMOS
  • 1920 × 1080@30fps
  • 2.8 mm/4 mm fixed lens
  • H.265+/H.265/H.264+/H.264
  • Dual stream
  • Digtal WDR (Wide Dynamic Range)
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • PoE (Power over Ethernet)
  • IP67, IK10

2 in stock

  • Camera
  • Image Sensor1/2.9″ Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°
  • Lens
  • Lens TypeFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV

    2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°

    4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°

  • Lens MountM12
  • Iris TypeFixed
  • ApertureF2.2
  • Depth of Field

    2.8 mm: 0.8 m to ∞

    4 mm: 1 m to ∞

  • DORI
  • DORI

    2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

    4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Network
  • SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
  • Simultaneous Live ViewUp to 6 channels
  • APIISAPI,SDK
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • ClientiVMS-4200,Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10, IE 11,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Wide Dynamic Range (WDR)Digital WDR
  • SNR≥ 52 dB
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Image EnhancementBLC,HLC,3D DNR
  • Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection,exception
  • LinkageNotify surveillance center
  • General
  • Power

    12 VDC ± 25%, 0.4 A, max. 4.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

    PoE: IEEE 802.3af, Class 3, max. 6.5 W

  • MaterialPlastic
  • DimensionØ110.8 mm × 85.2 mm (Ø4.36″ × 3.35″)
  • Package Dimension163 mm × 75 mm × 75 mm (6.4″ × 3.0″ × 3.0″)
  • Approx. 240 g (0.5 lb.)
  • With Package WeightApprox. 380 g (0.8 lb.)
  • Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
  • LanguageEnglish, Ukrainian
  • General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
  • Approval
  • EMC

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

  • Safety

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017

  • Environment

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006
