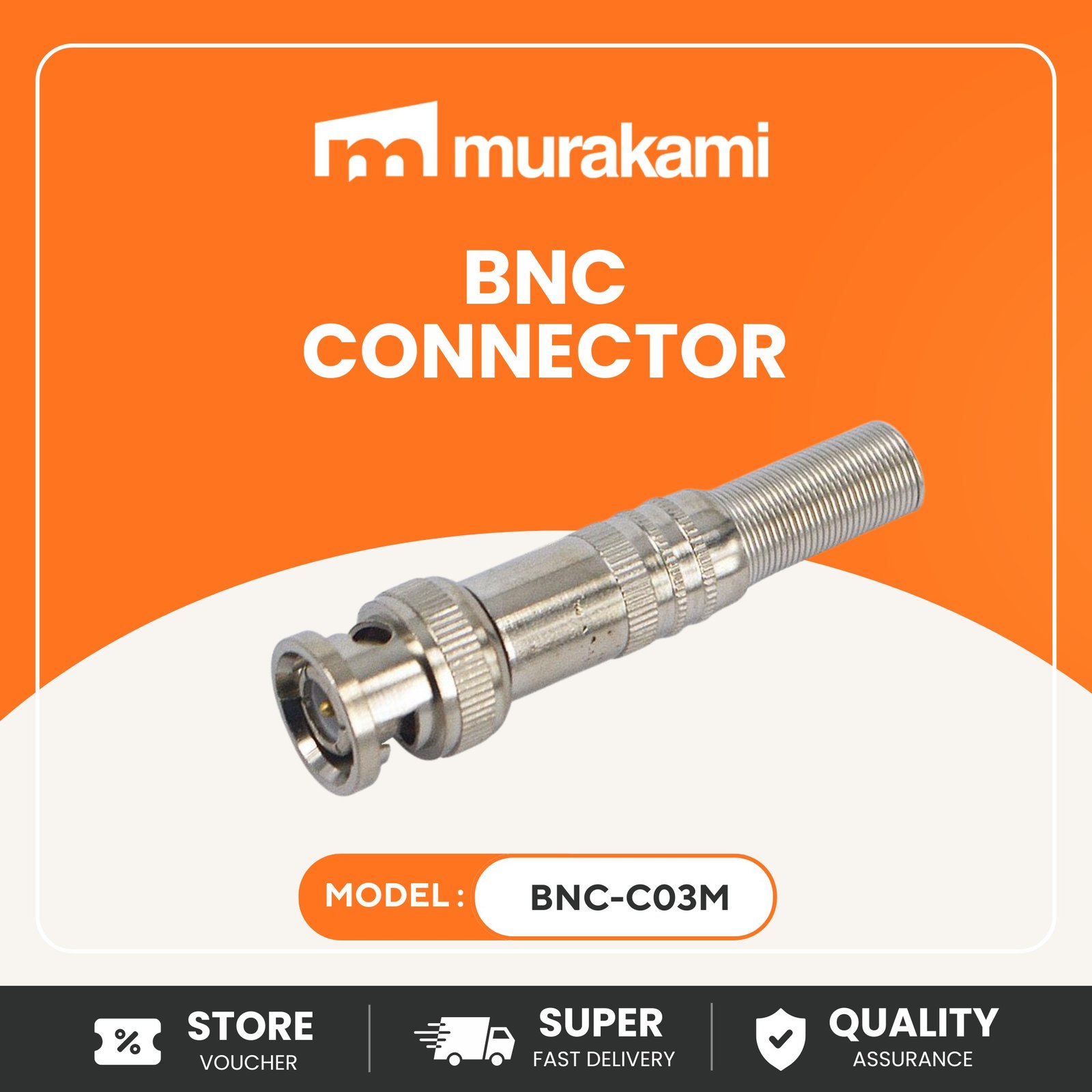

OCS (BNC-C03M)

The OCS (BNC-C03M) is a professional-grade installation essential designed for the seamless termination of coaxial cables in analog and high-definition surveillance systems. Engineered with a specialized “American Style” design, this connector features a spring-reinforced tail and a screw-down terminal, offering a robust and reliable connection without the need for specialized soldering tools or expensive crimping equipment. It is a critical component for security technicians and DIY enthusiasts who require a high-quality, field-terminable solution for connecting CCTV cameras to Digital Video Recorders (DVRs) or monitors.

The primary technical advantage of the OCS (BNC-C03M) is its solderless and crimpless architecture. Traditional BNC connectors often require heat-based soldering or heavy-duty crimping tools, which can be time-consuming and difficult to perform in tight spaces or atop ladders. The OCS Solderless type utilizes a high-precision internal screw terminal to secure the central copper core of the coaxial cable (such as RG59 or RG6). This mechanical connection ensures maximum electrical conductivity and signal integrity, providing a clear, interference-free video transmission that is vital for high-resolution 1080p, 5MP, or 8MP analog cameras.

Durability is a core feature of the “American Style” design, specifically highlighted by the integrated protective spring. This OCS (BNC-C03M) silver-colored spring tail serves as a strain relief mechanism, preventing the coaxial cable from bending at sharp angles or fraying at the connection point. In outdoor installations or environments where cameras may be moved or adjusted, this spring ensures that the cable maintains its structural integrity over time, significantly reducing the risk of signal loss or “ghosting” caused by loose internal connections. The silver-plated body provides excellent resistance to oxidation and corrosion, ensuring a long service life even in humid or damp conditions.

The installation process for the OCS (BNC-C03M) is designed for maximum speed and efficiency. After stripping the outer jacket and shielding of the coaxial cable, the installer simply inserts the center conductor into the terminal and tightens the small screw. The outer shielding is then secured by the connector’s metal clamp, completing the ground circuit. This simplicity makes it an ideal “on-site” solution for rapid repairs or large-scale deployments where time is a critical factor. The secure screw-down mechanism provides a high level of pull-out resistance, ensuring the cable remains firmly attached even under physical stress.

Aesthetic and professional finishing are also prioritized. The sleek silver color and high-quality machining of the OCS (BNC-C03M) provide a clean, professional look to the back of DVRs and camera junction boxes. This attention to detail reflects the quality of the overall security installation. Because it is a universal BNC male connector, it is fully compatible with all standard BNC female ports found on security cameras, baluns, and recording devices, making it a versatile tool for any analog or HD-TVI/CVI/AHD ecosystem.

By utilizing the OCS (BNC-C03M) Solderless Connector, installers can ensure a high-performance video link that combines the reliability of a permanent connection with the convenience of tool-less assembly. It is a cost-effective investment that eliminates the need for specialized termination kits while maintaining the signal quality required for modern, high-definition analog surveillance.

---

📌 KEY FEATURES
✔ Solderless & Crimpless Design: Easy termination using only a standard screwdriver.
✔ American Style Spring Tail: Provides superior strain relief to prevent cable damage.
✔ High-Conductivity Screw Terminal: Ensures a firm, low-resistance connection for the center core.
✔ Silver-Plated Housing: Offers excellent corrosion resistance and a professional aesthetic.
✔ Universal Compatibility: Fits all standard BNC female ports on cameras and DVRs.
✔ Durable Metal Construction: Built to withstand physical stress and environmental wear.
✔ Rapid Field Assembly: Significantly reduces installation time for security technicians.
✔ High Signal Integrity: Optimized for HD-TVI, AHD, CVI, and CVBS video signals.

---

📌 BENEFITS The OCS (BNC-C03M) provides a reliable and high-quality termination solution that removes the complexity of traditional cable assembly. The integrated spring prevents the most common cause of CCTV failure—cable fatigue at the connector base. Its solderless design means that repairs can be conducted instantly on-site without a power source for soldering irons, saving time and labor costs. The professional silver finish ensures the installation looks as good as it performs, providing a secure, long-term connection that maintains the clarity of your high-definition video feeds.

---

📌 APPLICATIONS

• Analog CCTV Installations: The standard connector for all traditional BNC-based systems.

• HD-TVI & AHD Upgrades: Supports high-bandwidth signals for 2MP to 8MP cameras.

• Field Repairs: Ideal for quickly replacing damaged connectors on existing lines.

• DIY Security Setups: Simplifies the wiring process for home and small business owners.

• Broadcast & Video Production: Used for connecting monitors and video switchers.

• Test Equipment Connectivity: Perfect for making temporary test cables for oscilloscopes.

• Junction Box Wiring: Compact design fits easily inside camera mounting bases.

---

📌 CONCLUSION The OCS (BNC-C03M) is a fundamental tool for anyone working with coaxial video systems. By combining the ease of a screw-terminal design with the protective benefits of a spring strain relief, it offers a level of reliability and convenience that is essential for professional security work. Its rugged silver construction and high-performance signal path ensure that your surveillance system remains connected and clear, regardless of the environment. For a fast, durable, and professional connection, the OCS (BNC-C03M) is the definitive choice for modern CCTV cabling.

---
