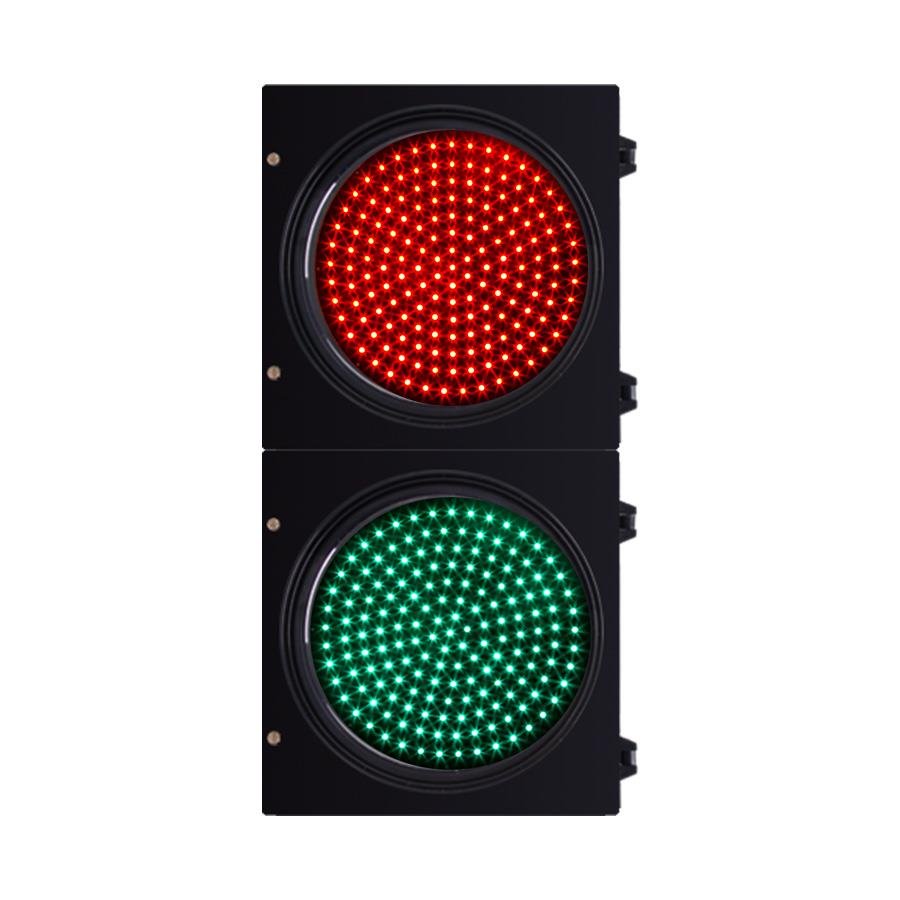

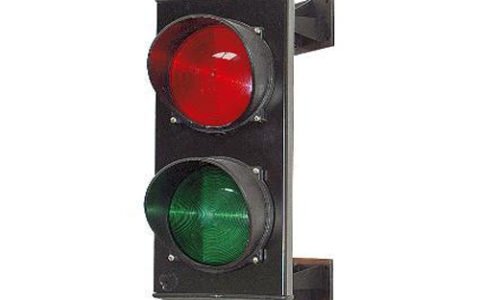

Sinowatcher (JD300-3-25-1B) for Better Outdoor LED Red Green Traffic Light System

The Sinowatcher JD300-3-25-1B is a high-performance 300mm LED traffic signal designed to provide efficient and dependable vehicle control in urban roads, industrial zones, parking facilities, and controlled access areas. Featuring a Red and Green full ball configuration, this model is ideal for applications where simplified traffic signaling is required, such as entry/exit control, one-way systems, and regulated traffic flow zones.

Engineered with advanced LED technology and a precision optical system, the JD300-3-25-1B ensures excellent visibility, energy efficiency, and long-term reliability in outdoor environments.

Clear Red–Green Signal Configuration

The Sinowatcher JD300-3-25-1B utilizes a Red and Green signal system that delivers clear and straightforward traffic instructions:

• Red Light: Stop
• Green Light: Proceed

Sinowatcher JD300-3-25-1B simplified configuration is highly effective in environments where full three-color signaling is not required. It is commonly used in parking entrances, toll systems, industrial facilities, and access-controlled zones.

The full ball design ensures that both signals are bright, uniform, and easily recognizable from a distance, improving traffic flow and safety.

High-Visibility 300mm Optical Design

The traffic light features a 300mm diameter display, providing a large and highly visible signal surface. This ensures that drivers can easily see and interpret the signal from long distances, even in high-speed or high-traffic environments.

The clear polycarbonate optical lens enhances brightness and improves light transmission, ensuring visibility in:

• Bright daylight conditions
• Rain and fog
• Low-light environments

The precision lens system also ensures uniform light distribution, eliminating dark spots and maintaining consistent signal clarity across the entire display.

High-Intensity LED Technology

The Sinowatcher JD300-3-25-1B is equipped with high-intensity 5mm DIP LEDs by EPISTAR, known for their durability and strong luminous output. These LEDs provide excellent brightness while maintaining low power consumption, making the system highly energy efficient.

Key advantages of the LED system include:

• High brightness for long-distance visibility
• Low energy consumption
• Fast signal response time
• Reliable continuous operation

The LED modules are designed for a long service life exceeding 80,000 hours, reducing maintenance needs and ensuring consistent performance over time.

Advanced Optical Performance

The internal optical system is engineered to enhance signal clarity and reduce visual distortion. It incorporates features such as:

• Anti-phantom effect technology to prevent false signal appearance caused by external light reflection
• Wide viewing angles to ensure visibility from multiple directions
• Uniform light distribution for consistent brightness

These features allow drivers to accurately interpret signals without confusion, improving overall traffic safety and efficiency.

Durable and Weather-Resistant Construction

The Sinowatcher JD300-3-25-1B is built with UV-stabilized polycarbonate housing, offering excellent resistance to environmental factors such as:

• Sunlight and UV exposure
• Dust and pollution
• Rain and moisture
• Physical impact

The durable construction ensures long-term outdoor performance without degradation. The housing is designed to maintain its strength and appearance even after prolonged exposure to harsh environmental conditions.

Wide Voltage Compatibility

The traffic signal operates within a wide voltage range of 85–265VAC, making it compatible with standard electrical systems across various regions. This flexibility allows easy integration into existing infrastructure without requiring additional voltage regulation equipment.

The stable electrical performance ensures uninterrupted operation even in areas with fluctuating power supply conditions.

Modular Design for Easy Installation

The JSinowatcher JD300-3-25-1B features a modular structure that simplifies installation, maintenance, and system upgrades. It can be easily mounted on poles, gantries, or traffic control structures.

Benefits of the modular design include:

• Quick and simple installation
• Easy integration with existing systems
• Convenient maintenance and servicing
• Reduced downtime during repairs

This makes it an efficient solution for both new installations and upgrades to existing traffic systems.

Long Service Life and Low Maintenance

With a lifespan exceeding 80,000 working hours, the Sinowatcher JD300-3-25-1B offers exceptional durability and reliability. The high-quality LED components and robust housing reduce the need for frequent maintenance.

This results in:

• Lower operational costs
• Reduced maintenance frequency
• Long-term system reliability
• Minimal downtime

Sinowatcher JD300-3-25-1B is a cost-effective solution for infrastructure projects requiring long-lasting performance.

Ideal for Urban and Industrial Applications

The Sinowatcher JD300-3-25-1B is designed for a wide range of traffic control applications, including:

• Urban road signaling systems
• Parking entry and exit control
• Industrial facility traffic management
• Toll booths and checkpoints
• Warehouse vehicle control zones
• Access-controlled roadways
• Commercial property traffic systems

Its versatility makes it suitable for both public and private traffic management systems.

Key Features

• Model: Sinowatcher JD300-3-25-1B
• Type: 300mm LED Red–Green Traffic Signal Light
• Signal Colors: Red and Green
• LED Type: 5mm DIP LEDs by EPISTAR
• Input Voltage: 85–265VAC
• Lens Type: Transparent Polycarbonate Optical Lens
• Housing: UV-Stabilized Polycarbonate
• Lifespan: 80,000+ hours
• Optical Features: Anti-phantom effect, wide viewing angle
• Power Consumption: Low energy LED system
• Installation: Modular and easy to mount

Conclusion

The Sinowatcher JD300-3-25-1B 300mm LED Red–Green Traffic Light System is a reliable and efficient solution for simplified traffic control applications. With its high-brightness LED output, durable construction, advanced optical design, and wide voltage compatibility, it delivers consistent and effective performance in various environments.

Its long service life, low maintenance requirements, and easy installation make it an excellent choice for municipalities, industrial facilities, and infrastructure developers looking for a dependable and cost-effective traffic signaling solution.
