⚫ Model: SPT-P851G-S5(D)

⚫ Data-rate of 1.25Gbps operation

⚫ 850nm VCSEL laser and PIN photo detector

⚫ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

⚫ Digital Diagnostic Monitoring: Internal Calibration or External Calibration

⚫ 550m transmission with 50/125µm MMF

⚫ 300m transmission with 62.5/125µm MMF

⚫ Compatible with ROHS

⚫ +3.3V single power supply

⚫ Operating case temperature:

Standard: 0 to +70°C

Extended: -20 to +85°C

Industrial: -40 to +85°C

⚫ Gigabit Ethernet

⚫ Fiber Channel

⚫ Switch to Switch interface

⚫ Switched backplane applications

⚫ Router/Server interface

⚫ Other optical transmission systems

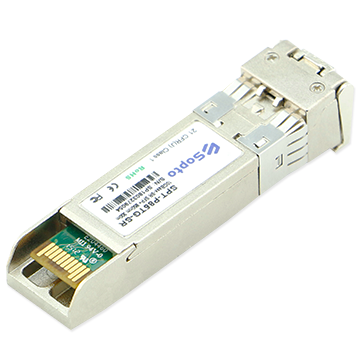

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps

and 550m transmission distance with MMF.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated

with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser

safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
