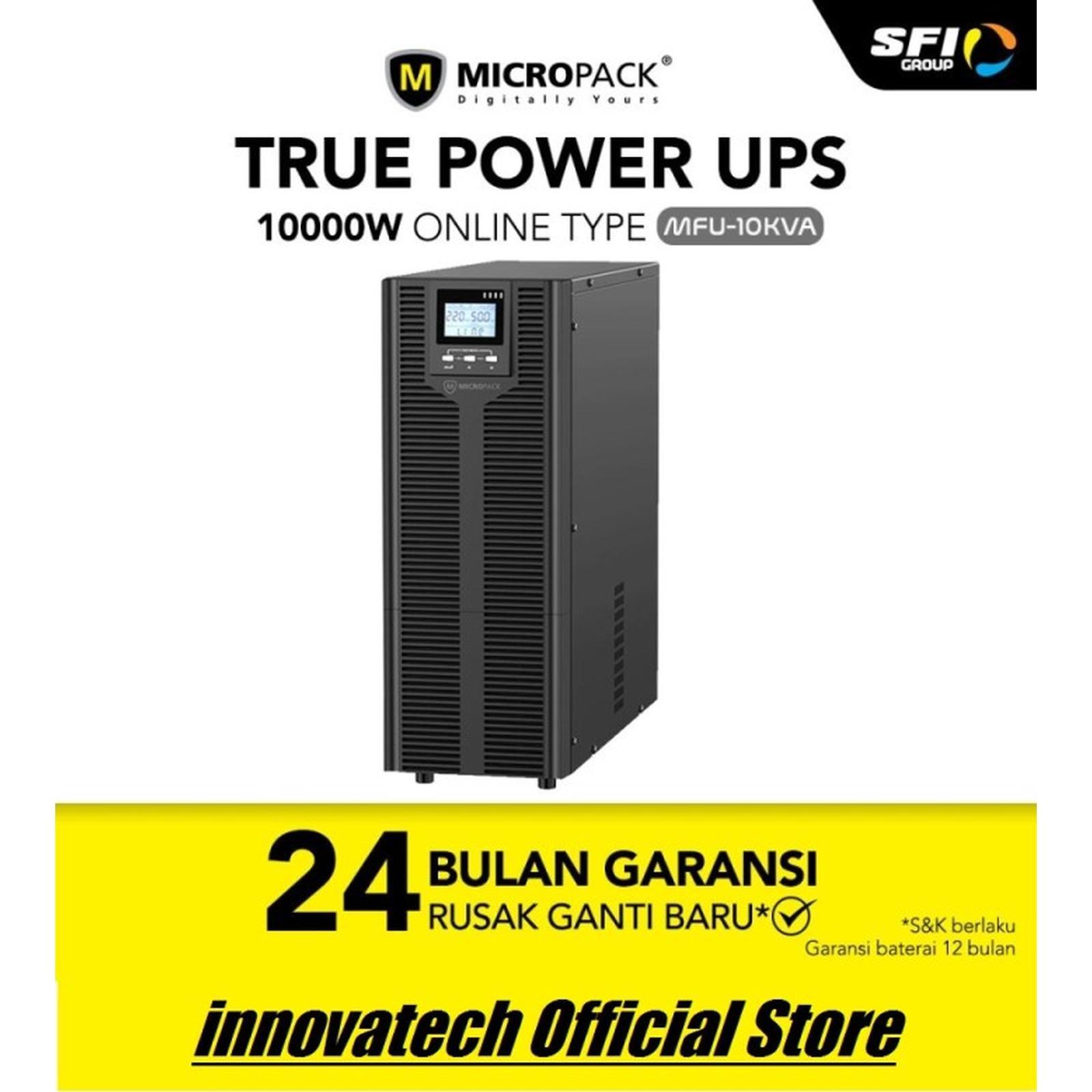

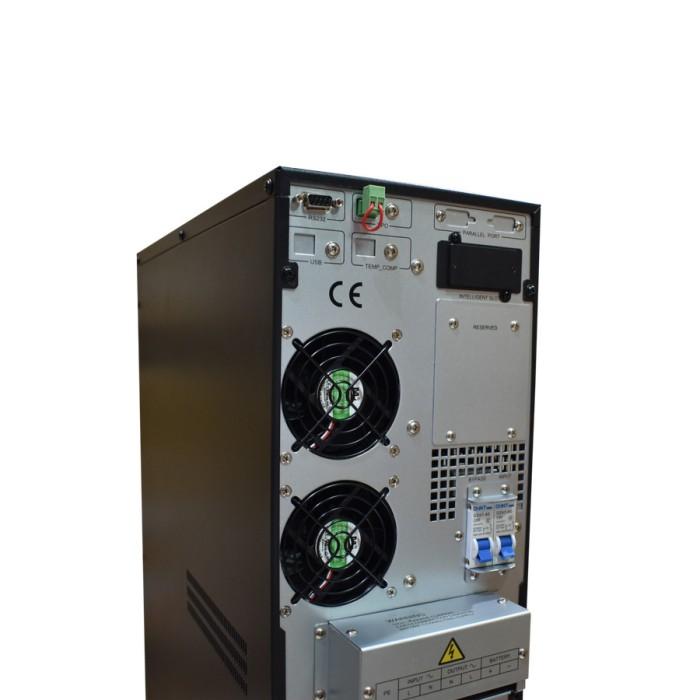

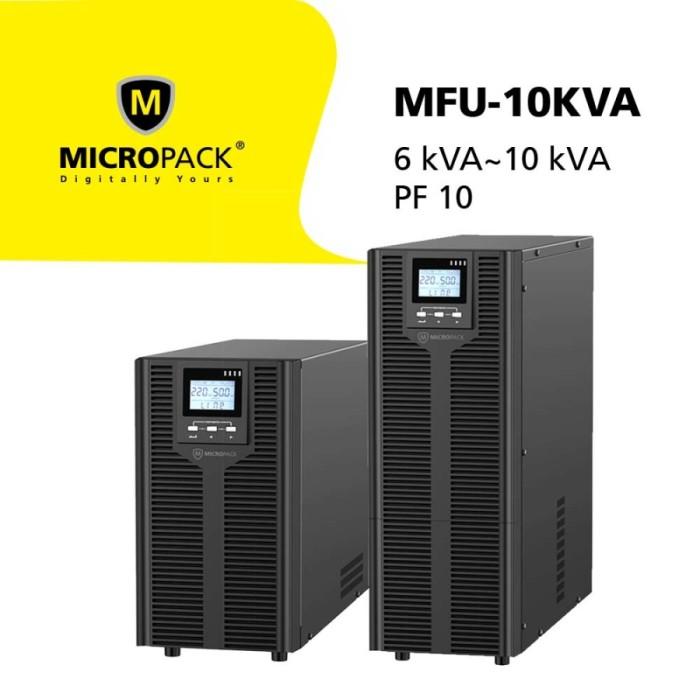

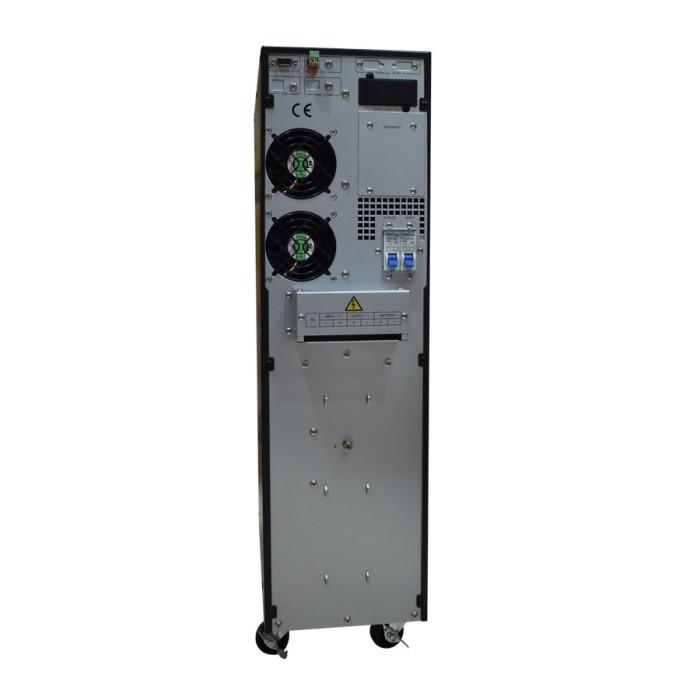

TRUE POWER UPS 10KVA (MFU-10KVA)
TRUE POWER UPS 10KVA (MFU-10KVA) - Image 2
TRUE POWER UPS 10KVA (MFU-10KVA) - Image 3
TRUE POWER UPS 10KVA (MFU-10KVA) - Image 4
Out of stock

TRUE POWER UPS 10KVA (MFU-10KVA)

SKU: MFU-10KVA-BK
Category: ,
Original price was: ₱122,000.00.Current price is: ₱117,805.11.

TRUE POWER / Micropack UPS 10 KVA (MFU‑10KVA) — A high-capacity 10,000 VA / 10,000 W online double-conversion UPS with pure sine-wave output and 0 ms transfer time, featuring advanced DSP control, a wide input voltage range (176–288 V), and communications via RS‑232, USB, or SNMP.

1. CD
2. User manual
3. Warranty card

Out of stock

Power capacity(VA/W):10KVA/10000W
With batteries
INPUT
Input wiring：Single-phase three-wire (1Φ + N + PE)
Rated voltage ：208 / 220 / 230 / 240 Vac
Voltage range  ：110 ~ 176 Vac (linear derating between 50% and 100% load);176 ~ 288 Vac (no derating)
Rated frequency：50 / 60 Hz (auto-sensing)
Frequency range：40 ~ 70 Hz
Power factor：≥ 0.99
Bypass voltage range ：- 40% ~ +15% (settable)
Total harmonic distortion (THDi)：≤ 5%
OUTPUT
Output wiring ：Single-phase three-wire (1Φ + N + PE)
Rated voltage ：208 (PF=0.9) / 220 / 230 / 240 Vac
Voltage regulation：± 1%
Frequency：Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode
Waveform：Sinusoidal
Power factor：1
Total harmonic distortion (THDv)：≤ 1% (linear load); ≤ 4% (non-linear load)
Crest factor：3:1
Overload：105% ~ 110% for 10 min, 110% ~ 125% for 1 min,126% ~ 150% for 30 s
BATTERIES
DC voltage：192 Vdc (192 ~ 240 Vdc settable)
Number of battery：16 pcs (16 ~ 20 settable)
Inbuilt battery (standard model)：12 V / 9 Ah × 16
Charging current：Standard model: 1 A;Long time model: 5 A (default),1 ~ 5 A settable; 12 A (optional)
Recharge time：Standard model: 90% capacity restored in 8 hours;
Long time model: depend on the capacity of battery
SYSTEM
Efficiency：≥ 94% at 100% load, max. 95% at 60% load, ≥ 98% in ECO mode
Transfer time：0 ms
Protections：Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
Max. number of parallel connections：4
Communications：RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional)
Display：LCD + LED
OTHERS
Operating temperature：0℃ ~ 40℃
Storage temperature：-25℃ ~ 55℃ (without battery)
Relative humidity：0 ~ 95% (non-condensing)
Altitude：≤ 1000 m, derating 1% for each additional 100 m
IP rating：IP 20

Attributes Value
Dimensions 310 × 685 × 941 cm
