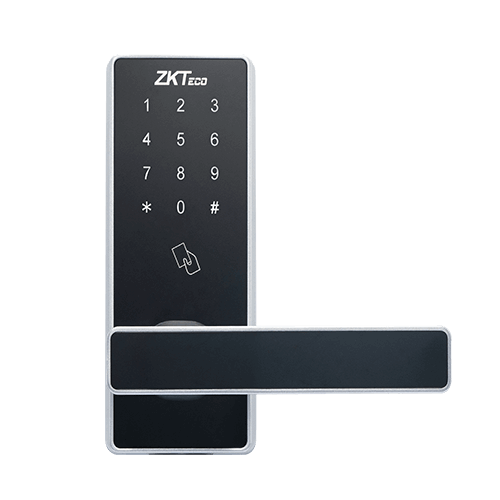

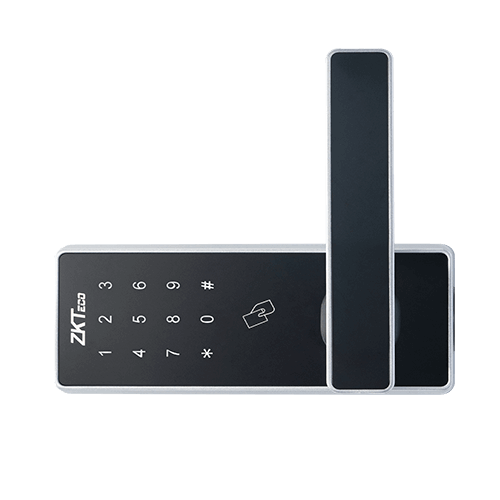

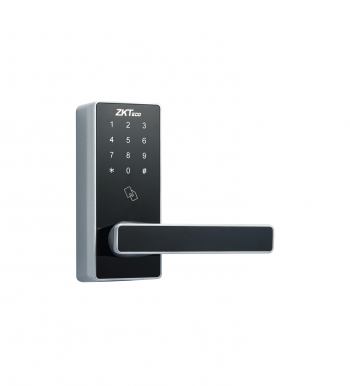

The ZKTeco DL30Z is a Zigbee-enabled digital smart door lock designed to provide secure and convenient keyless access for homes, apartments, offices, and short-term rental properties. Supporting PIN code, MIFARE card, and smartphone unlocking through the ZSmart App, the DL30Z enables remote access and management when paired with a Zigbee Gateway (SLG410). Its durable zinc alloy front panel, reversible design, random passcode protection, and real-time smart alerts ensure enhanced security and everyday convenience.

Key Features

• Zigbee-enabled digital keypad smart lock
• Multiple authentication methods:
  • Smartphone (via ZSmart App)
  • PIN code
  • MIFARE card (NFC supported)
• Remote unlocking and management with Zigbee Gateway
• Supports up to 100 users
• 100 PIN code capacity
• 100 card capacity
• Random Passcode function to prevent password observation
• Temporary and dynamic passcode sharing
• Real-time notifications for:
  • Low battery
  • Illegal access attempts
  • Hijack alarm
  • Offline status
• Reversible design for left- and right-hand door installation
• Durable zinc alloy front panel with ABS rear housing
• Audio prompts in English, Spanish, and Portuguese
• Power supply: 4 × AA alkaline batteries (not included)
• Emergency 9V battery backup interface
• Battery life: Up to 1.5 years (approximately 10,000 unlocks)
• Suitable for 30–54 mm door thickness
• Adjustable 60 mm / 70 mm backset
• Compatible with American Standard Single Latch and optional German Standard Mortise
• Operating temperature: -20°C to +55°C
• Operating humidity: 10%–90% RH (non-condensing)
• Dimensions:
  • Front: 69 × 155 × 35 mm
  • Back: 69 × 155 × 26 mm
• Certifications: CE-RED, FCC ID.
