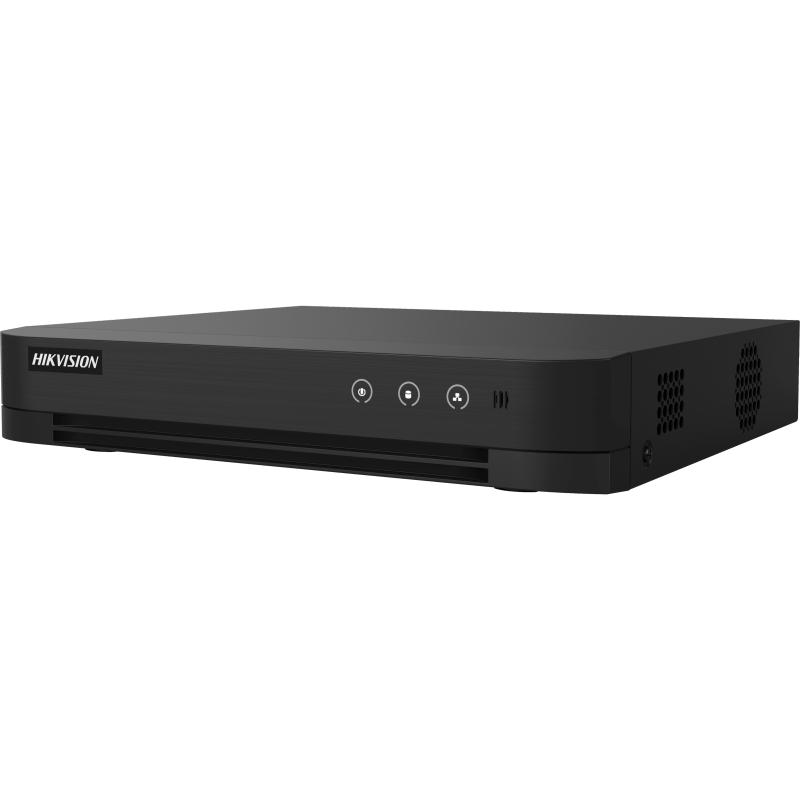

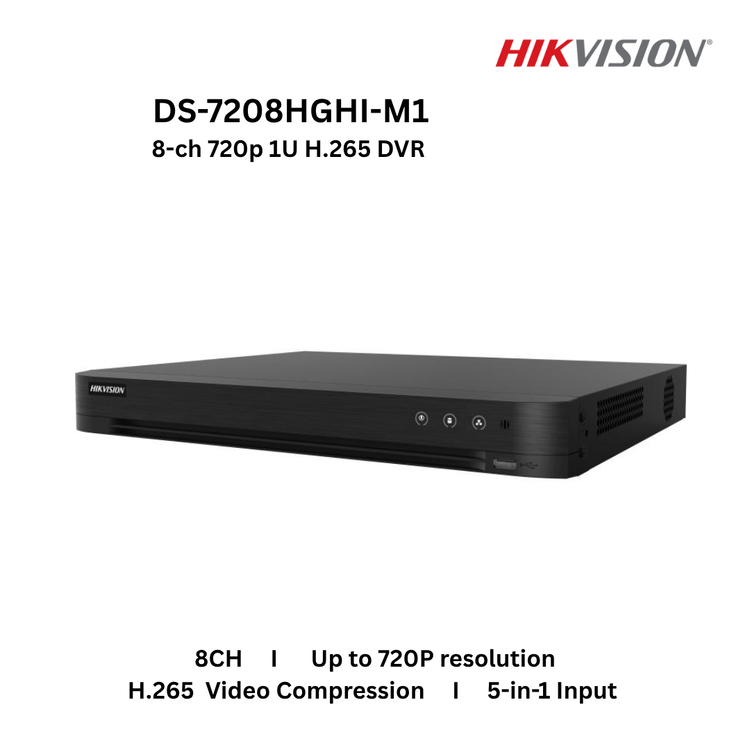

The Hikvision DS-7208HGHI-M1 DVR is a powerful and intelligent 8-channel Turbo HD digital video recorder designed to deliver reliable surveillance performance with advanced analytics and efficient video compression. Ideal for residential, commercial, and small-to-medium business security systems, this DVR combines traditional analog support with modern IP camera compatibility, offering flexibility and scalability.
With Motion Detection 2.0 powered by deep learning, the Hikvision DS-7208HGHI-M1 significantly enhances security by accurately distinguishing between humans and vehicles, reducing false alarms caused by irrelevant movements such as leaves, shadows, or lighting changes.
Intelligent Motion Detection 2.0 with AI Classification
One of the standout features of the Hikvision DS-7208HGHI-M1 is its advanced Motion Detection 2.0, which uses deep learning technology for smarter surveillance.
AI Detection Benefits:
- Accurately classifies human and vehicle targets
- Reduces false alarms from environmental factors
- Enables faster and more precise event detection
- Supports quick search by event or object type
This intelligent system improves monitoring efficiency and ensures users only receive relevant alerts.
Hybrid Video Input for Flexible System Integration
The Hikvision DS-7208HGHI-M1 DVR supports both analog and IP cameras, allowing users to upgrade or expand their surveillance system easily.
Video Input Capabilities:
- 8-channel analog video input (BNC interface)
- Supports HDTVI, AHD, HDCVI, and CVBS formats
- Up to 2 IP camera inputs (expandable to 10 channels)
- Supports IP cameras up to 5MP resolution
This hybrid capability makes it ideal for both new installations and upgrading existing analog systems.
High-Efficiency Video Compression (H.265+)
The Hikvision DS-7208HGHI-M1 supports advanced video compression technologies to optimize storage and bandwidth usage.
Compression Formats:
- H.265 Pro+ / H.265 Pro / H.265
- H.264+ / H.264
Benefits:
- Reduces storage requirements significantly
- Saves bandwidth for remote viewing
- Maintains high-quality video output
This ensures efficient recording without compromising video clarity.
Full HD Video Output via HDMI and VGA
The Hikvision DS-7208HGHI-M1 DVR provides high-definition video output for clear live viewing and playback.
Output Features:
- HDMI output: up to 1920 × 1080 @ 60Hz
- VGA output: up to 1920 × 1080 @ 60Hz
- Simultaneous HDMI and VGA output
This allows users to connect monitors for real-time monitoring with clear and detailed visuals.
Smooth Playback and Recording Performance
The Hikvision DS-7208HGHI-M1 ensures stable and smooth recording across all channels.
Recording Capabilities:
- Encoding up to 1080p Lite @ 15 fps
- Supports multiple resolutions: 1080p Lite, 720p Lite, WD1, CIF
- Synchronous playback of up to 8 channels
This allows users to review recorded footage efficiently across multiple cameras.
Audio Support via Coaxial Cable
The Hikvision DS-7208HGHI-M1 DVR supports audio transmission through coaxial cables, simplifying installation and reducing wiring complexity.
Audio Features:
- 1-channel RCA audio input/output
- Audio over coaxial cable (up to 8 channels)
- Two-way audio capability
This enables real-time audio monitoring alongside video surveillance.
Remote Access and Network Connectivity
The Hikvision DS-7208HGHI-M1 supports remote monitoring, allowing users to access their surveillance system from anywhere.
Network Features:
- Remote connection support up to 64 users
- Network protocols: TCP/IP, DHCP, DNS, NTP, HTTPS, and more
- Compatible with Hik-Connect for mobile access
- RJ45 Ethernet port (10/100 Mbps)
This ensures convenient remote viewing and system management via smartphones or computers.
Storage Capacity and Data Management
The Hikvision DS-7208HGHI-M1 DVR supports internal storage for continuous video recording.
Storage Features:
- 1 SATA interface
- Supports up to 4TB HDD capacity
- Efficient storage with H.265+ compression
This provides ample storage space for long-term recording.
Long-Distance Signal Transmission
The Hikvision DS-7208HGHI-M1 supports long-distance signal transmission, making it suitable for large installations.
Transmission Capability:
- Up to 1200 meters for 720p HDTVI signal
This ensures stable video transmission over long cable distances without signal degradation.
Compact and Energy-Efficient Design
The Hikvision DS-7208HGHI-M1 DVR is designed with a compact form factor and low power consumption for efficient operation.
Physical Specifications:
- Dimensions: 260 × 222 × 45 mm
- Weight: ≤ 1 kg (without HDD)
- Power consumption: ≤ 17W
Its compact design makes it easy to install in control rooms or small spaces.
Stable Operation in Various Environments
The Hikvision DS-7208HGHI-M1 is built for reliable performance in different environmental conditions.
Operating Conditions:
- Temperature: -10°C to 55°C
- Humidity: 10% to 90% (non-condensing)
This ensures consistent operation in both residential and commercial environments.
Ideal Applications
The Hikvision DS-7208HGHI-M1 is suitable for a wide range of surveillance applications.
Common Uses:
- Residential security systems
- Retail shops and small businesses
- Offices and commercial buildings
- Warehouses and storage facilities
- Schools and institutions
Its flexibility and intelligent features make it a reliable choice for various security needs.
Key Features Summary
- 8-channel analog DVR with hybrid IP support (up to 10 channels)
- Motion Detection 2.0 with human and vehicle classification
- H.265+ video compression for efficient storage
- Full HD HDMI and VGA output
- Audio over coaxial cable support
- Remote access via network and mobile apps
- Supports up to 4TB HDD storage
- Long-distance transmission up to 1200m
- Compact, energy-efficient design
Conclusion
The Hikvision DS-7208HGHI-M1 DVR is a smart and efficient surveillance recording solution that combines advanced AI-based motion detection, flexible video input compatibility, and high-efficiency compression. Its ability to accurately detect human and vehicle movement, along with its hybrid system support, makes it ideal for modern security applications.
With reliable performance, easy integration, and remote monitoring capabilities, this DVR is an excellent choice for users seeking a cost-effective yet powerful security recording system.
