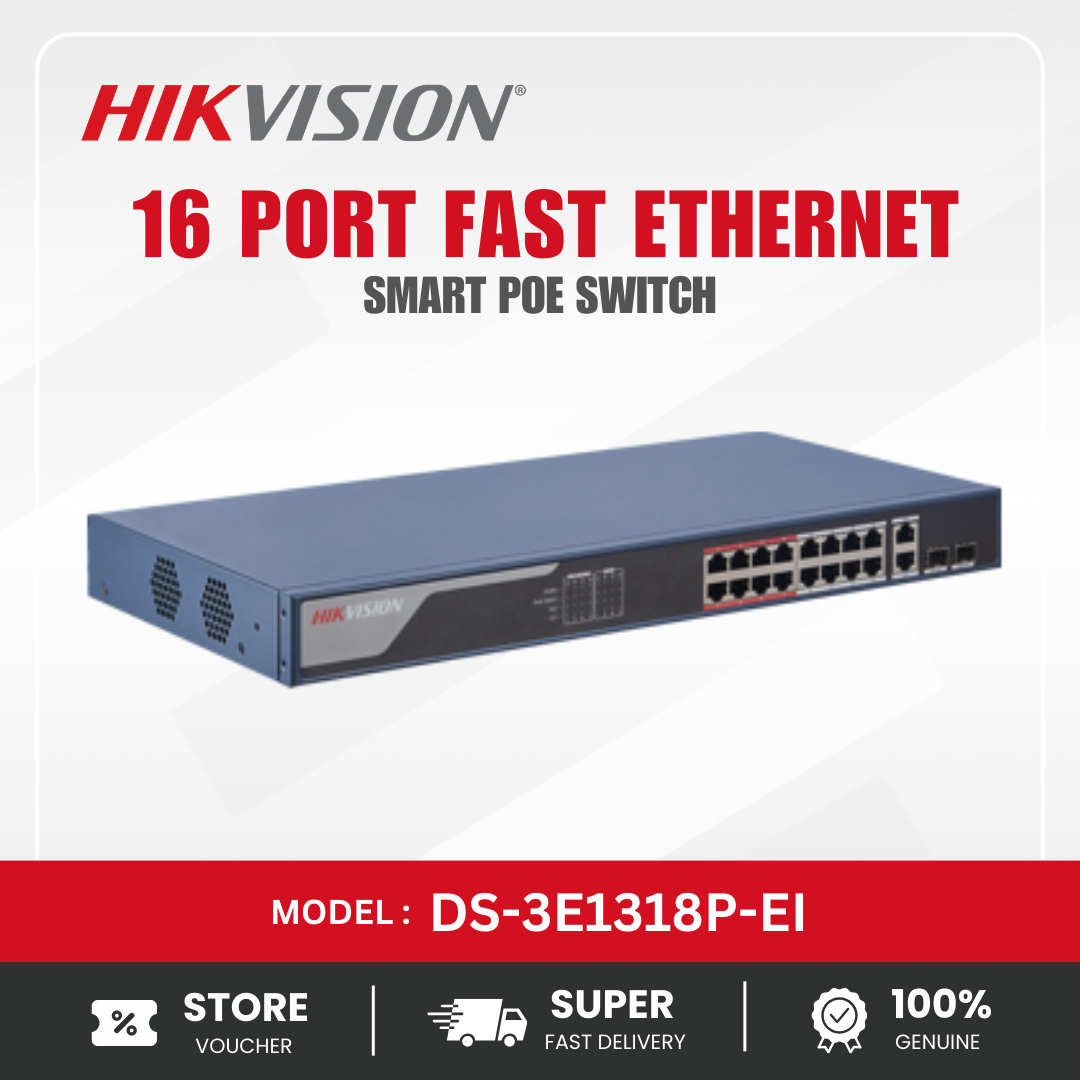

Hikvision (DS-3E1318P-EI)

The Hikvision (DS-3E1318P-EI) is a professional-grade 16-Port Fast Ethernet Smart Managed PoE Switch designed to be the backbone of small-to-medium IP surveillance networks. Unlike basic unmanaged switches, this “Smart Managed” model offers a software-driven layer of intelligence, allowing installers to monitor network health, manage bandwidth, and troubleshoot remotely through platforms like Hik-Partner Pro. It combines high-density power delivery with specialized surveillance features like ultra-long-range transmission and intelligent port management.

The Hikvision (DS-3E1318P-EI) hardware layout features 16 × 10/100 Mbps PoE ports and 2 × Gigabit Combo ports (which can function as either RJ45 or SFP fiber ports). This Gigabit uplink capability is essential for ensuring that the combined high-definition data from all 16 cameras is transmitted to the NVR or core network without latency. With a substantial total power budget of 230W, the switch can comfortably power a full array of standard IP cameras, supporting up to 30W per individual port.

 Smart Management & Visualization

The Hikvision (DS-3E1318P-EI) “Smart” designation refers to the switch’s integration into the Hikvision ecosystem. When used with Hikvision NVRs or software, it provides a Visualized Topology Management system. This allows technicians to see a graphical map of the network, showing exactly which camera is connected to which port. It also supports Real-Time Alarm Pushing, notifying the administrator immediately if a camera goes offline or if there is a power anomaly.

Specialized Surveillance Modes

Technically, the Hikvision (DS-3E1318P-EI) is optimized for the physical challenges of a job site:

• Ultra-Long Range Mode: By enabling “Extend Mode,” the switch can push power and data to cameras up to 300 meters away—triple the standard Ethernet limit.

• PoE Watchdog: This is a self-healing feature where the switch constantly “pings” the connected cameras. If a camera stops responding (hangs), the switch automatically power-cycles that specific port to reboot the camera.

• VIP Priority Ports: Ports 1 through 8 are designated as high-priority. In the event of network congestion, the switch ensures that video data from these ports is forwarded first to prevent frame loss in critical areas.

---

📌 KEY FEATURES

• 16 × Fast Ethernet PoE Ports: Dedicated 10/100 Mbps ports for IP camera connectivity.

• 2 × Gigabit Combo Uplinks: Flexible RJ45/SFP ports for high-speed network backhaul.

• 230W PoE Budget: High capacity to power up to 16 cameras simultaneously.

• 300m Extend Mode: Industry-leading transmission distance for large-scale sites.

• PoE Watchdog: Automatic detection and restarting of non-responsive cameras.

• Smart Managed Features: Support for VLAN, link aggregation, and loop prevention (STP/RSTP).

• 6kV Surge Protection: Industrial-grade protection against lightning and electrical spikes.

• Remote Management: Configure and monitor via Hik-Partner Pro or web interface.

---

📌 BENEFITS

The Hikvision (DS-3E1318P-EI) provides the “best of both worlds”—the simplicity of an unmanaged switch with the diagnostic power of a managed one. It significantly reduces maintenance costs by allowing for remote reboots and cable fault detection, meaning fewer on-site service calls. The 300-meter range and high power budget make it a versatile solution for large warehouses or outdoor perimeters where traditional 100-meter limits are a hindrance.

---

📌 APPLICATIONS

• Medium-Sized Businesses: Provides a centralized power and data hub for up to 16 cameras.

• Large Warehouses: Utilizes the 300m range to reach cameras in distant storage aisles.

• Retail Complexes: Manages a mix of indoor domes and high-priority outdoor bullets.

• Educational Institutions: Secures multiple hallways and entry points with remote monitoring.

• Apartment Buildings: Centralized management of common area and perimeter cameras.

• Critical Infrastructure: Uses PoE Watchdog to ensure maximum uptime for vital feeds.

---

📌 CONCLUSION

The Hikvision (DS-3E1318P-EI) is more than just a power source; it is a management tool that ensures your surveillance network stays online and optimized. By combining 16 high-power ports with intelligent self-healing features and remote management capabilities, it provides a robust and scalable solution for professional security systems. For any 16-camera installation where reliability and ease of maintenance are priorities, this smart managed switch is the definitive choice.

---
