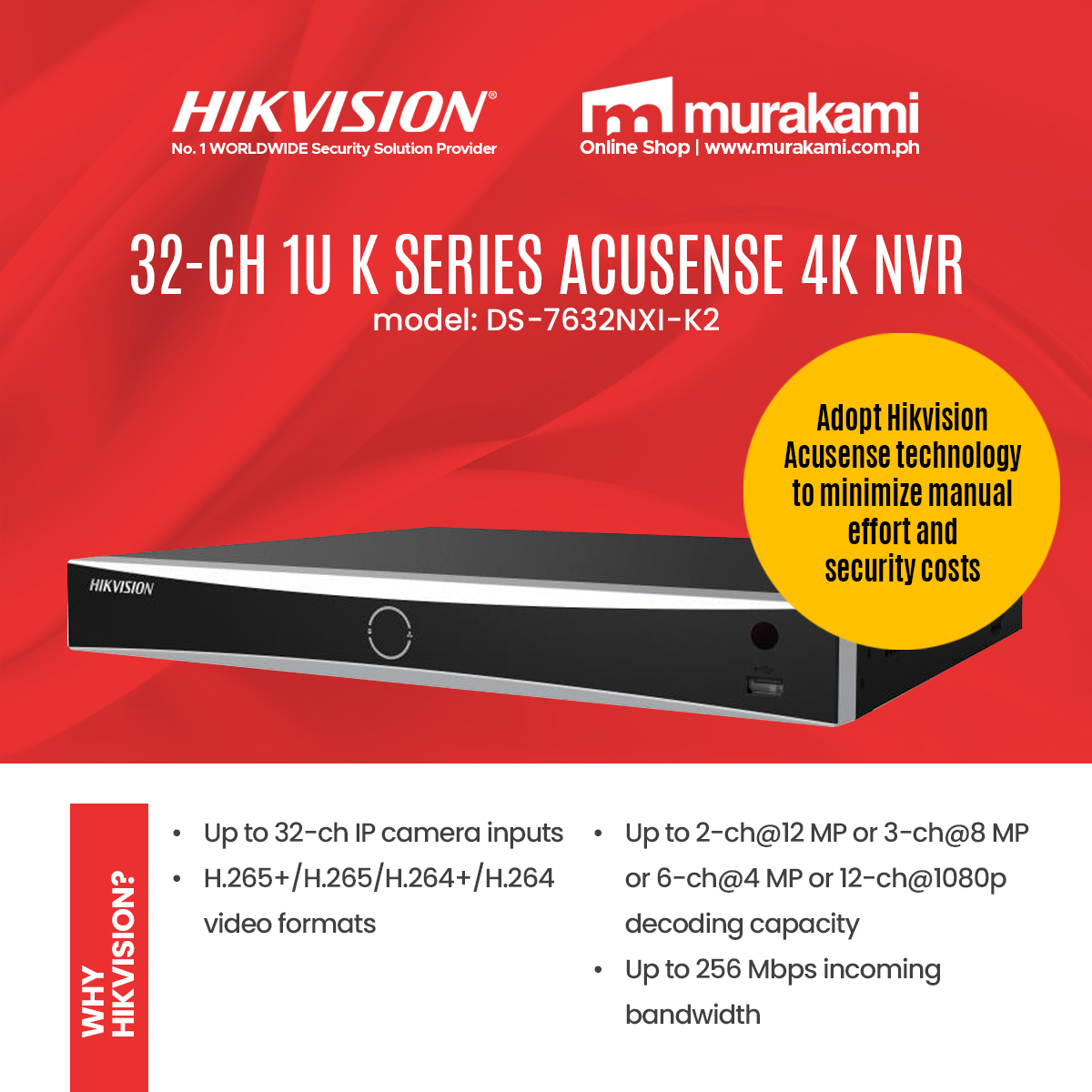

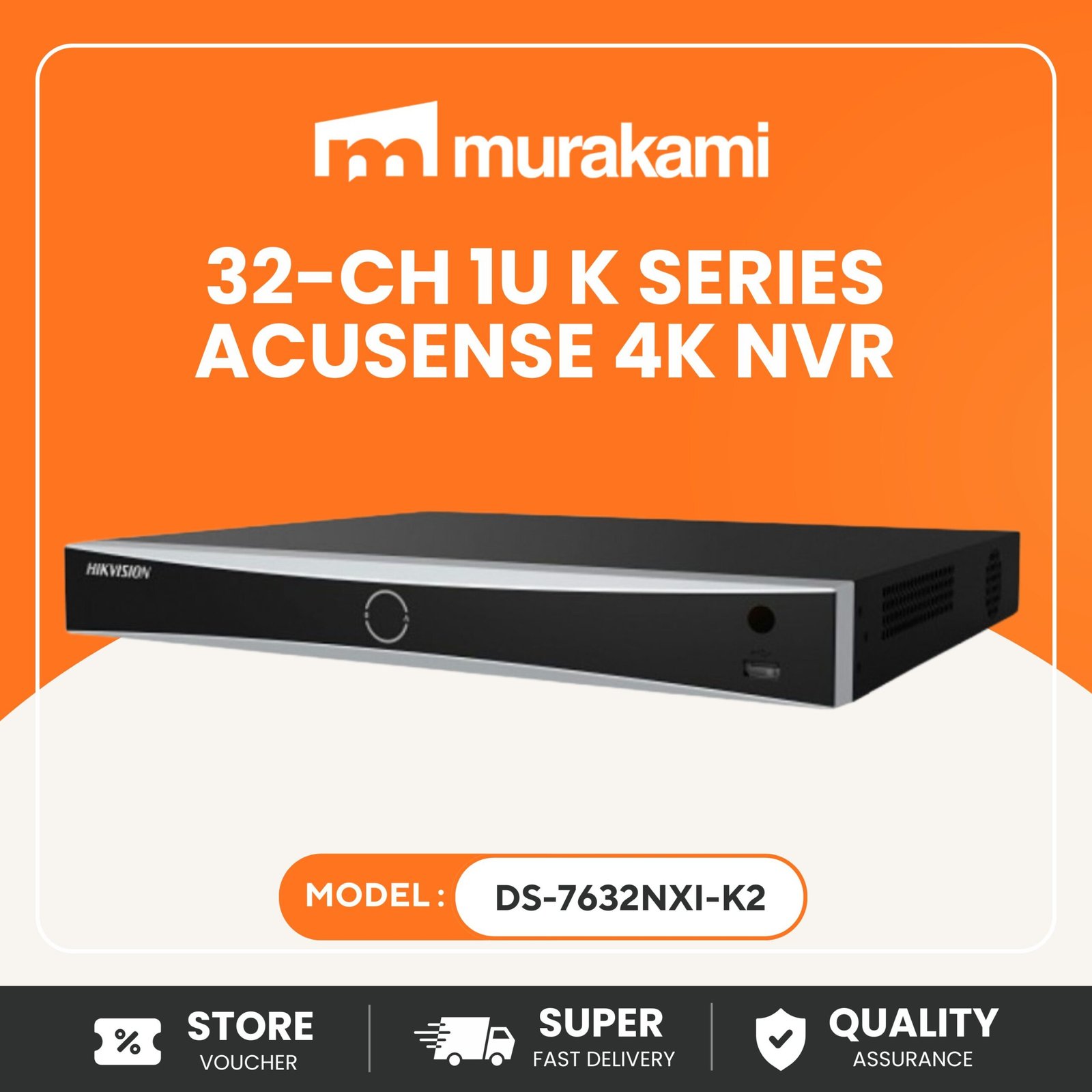

Hikvision (DS-7632NXI-K2)

The Hikvision (DS-7632NXI-K2) is a professional-grade, high-capacity Network Video Recorder (NVR) designed to serve as the sophisticated brain of an expansive IP surveillance system. As a cornerstone of the K Series, this NVR combines massive 32-channel throughput with Hikvision’s cutting-edge AcuSense technology. It is specifically engineered for environments that require high-density camera management—such as large warehouses, multi-story office complexes, educational campuses, and industrial sites—where speed, storage reliability, and intelligent filtering are non-negotiable.

Intelligence at Scale: AcuSense and Facial Recognition

The  Hikvision (DS-7632NXI-K2) “NXI” designation signifies that this NVR is part of the Pro Series with AcuSense, moving beyond simple recording to provide proactive security. The Hikvision (DS-7632NXI-K2) excels in two primary intelligent areas:

1. Motion Detection 2.0: On all 32 channels, the NVR can support Motion Detection 2.0, which uses deep-learning algorithms to categorize movement. By distinguishing between humans, vehicles, and irrelevant objects (like shadows or animals), it ensures that security teams are only alerted to genuine threats.

2. Facial Recognition and Analytics: This NVR is capable of performing high-level facial analysis. It can compare captured faces against a local database to trigger “Authorized” or “Stranger” alerts. It supports up to 16 libraries with a total capacity of 20,000 face pictures, making it an invaluable tool for VIP identification or blacklisting in commercial environments.

3. Perimeter Protection: Users can set virtual tripwires and intrusion zones. The NVR intelligently filters out false triggers, focusing exclusively on human or vehicle breaches.

Ultra-High Definition: 4K Resolution and 32-Channel Throughput

To handle the demands of modern high-resolution IP cameras, the Hikvision (DS-7632NXI-K2) is built with a powerful processing engine. It supports 4K (8MP) video input and output, ensuring that the clarity captured by high-end cameras is preserved during recording and playback.

• Incoming Bandwidth: With a massive 256 Mbps incoming bandwidth, the NVR can comfortably handle thirty-two 4MP or 5MP cameras streaming simultaneously without lag or dropped frames.

• Decoding Capability: It features robust decoding power, capable of playing back up to 2-ch at 12MP resolution or 16-ch at 1080p resolution simultaneously.

• Dual Display Support: The NVR provides independent HDMI and VGA outputs. The HDMI port supports up to 4K (3840 × 2160) resolution, providing crystal-clear imagery for a central monitoring station.

Storage Reliability and H.265+ Efficiency

Managing 32 channels of high-definition video requires a significant amount of storage space. The Hikvision (DS-7632NXI-K2) is designed with expansion and efficiency in mind:

• Dual SATA Interfaces: The unit supports two internal SATA hard drives, each with a capacity of up to 10 TB, for a total of 20 TB of on-board storage. This allows for extensive recording retention even with high-bitrate cameras.

• H.265+ Video Compression: To maximize that 20 TB, Hikvision uses H.265+ compression. This technology analyzes the video scene and compresses the background while keeping the moving targets in high quality. This results in a drastic reduction in storage costs and bandwidth usage—up to 80% more efficient than H.264.

• ANR (Automatic Network Replenishment): In the event of a temporary network failure between the camera and NVR, the NVR can automatically retrieve missing video segments stored on the camera’s SD card once the connection is restored, ensuring no gaps in the timeline.

📌 TECHNICAL SPECIFICATIONS TABLE

📌 STRATEGIC APPLICATIONS

• Commercial Warehousing: Monitor multiple loading docks and aisles. Use AcuSense to alert staff only when vehicles or people enter restricted zones after hours.

• Corporate Campuses: Manage a fleet of 32 cameras across multiple floors. Utilize facial recognition at main entrances to streamline security protocols for employees and visitors.

• Retail Hubs and Malls: High-resolution 4K recording ensures that small details in large open spaces are captured for liability and loss prevention.

• Residential Estates: A single NVR can manage perimeter cameras, gate entrances, and community centers, providing a centralized security hub for property managers.

📌 CONCLUSION

The Hikvision (DS-7632NXI-K2) is a formidable solution for any organization scaling its security infrastructure. It bridges the gap between massive data handling and intelligent automation. By integrating 4K clarity, AcuSense filtering, and expansive storage capabilities, it transforms a standard CCTV system into a proactive security asset. For those requiring a 32-channel solution that is both reliable and smart, the K Series AcuSense NVR stands as a top-tier industry choice.
