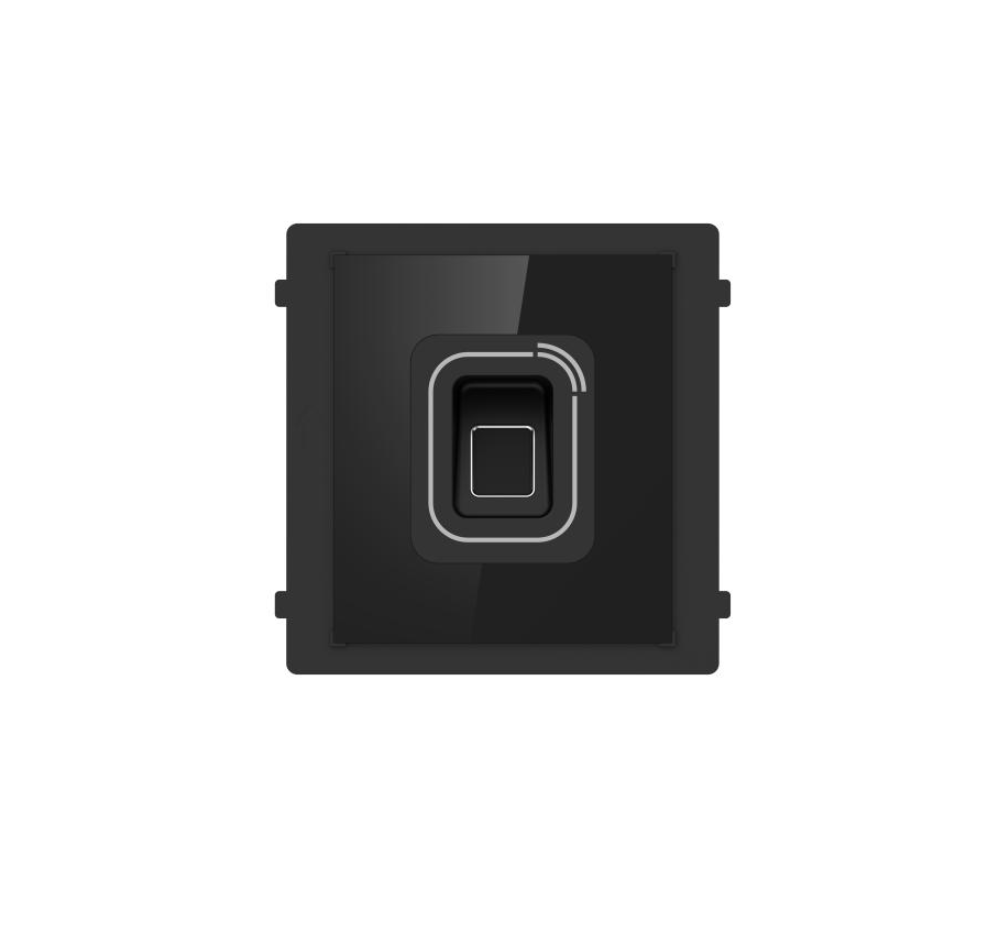

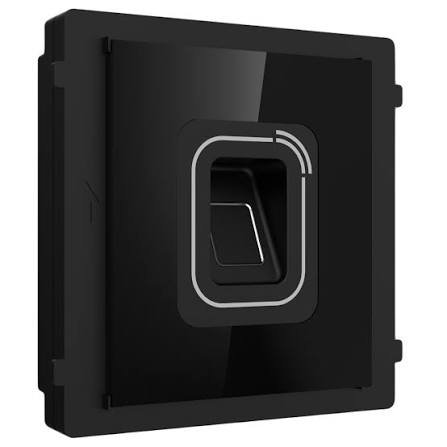

The Hikvision DS-KD-MFB(O-STD) is a Fingerprint & Card Reader Module designed for Hikvision modular video intercom and access control systems. It combines fingerprint authentication with M1/DesFire card reading, providing secure and convenient access control for residential buildings, apartments, offices, commercial facilities, and industrial sites. Designed as an expansion module, it seamlessly integrates with compatible Hikvision modular door stations for enhanced security and flexible system configuration.

The module supports up to 1,000 fingerprints and 6,000 cards, enabling fast and reliable user authentication. It communicates via RS-485, features IP65 weatherproof protection for outdoor installations, and supports both flush and surface mounting. Powered directly by the main door station module, the DS-KD-MFB(O-STD) is easy to install and ideal for expanding Hikvision IP, 2-wire IP, and 2-wire HD modular intercom systems.

Key Features

• Fingerprint and card reader module for Hikvision modular door stations
• Supports fingerprint and M1/DesFire card authentication
• Stores up to 1,000 fingerprints
• Supports up to 6,000 cards
• 13.56 MHz card reading frequency
• RS-485 communication interface
• IP65 weatherproof protection
• Flush and surface mounting supported
• Powered by the main door station module (12 VDC)
• Easy integration with Hikvision modular intercom systems
• Compatible with IP, 2-wire IP, and 2-wire HD modular door stations (except selected non-Y models)
