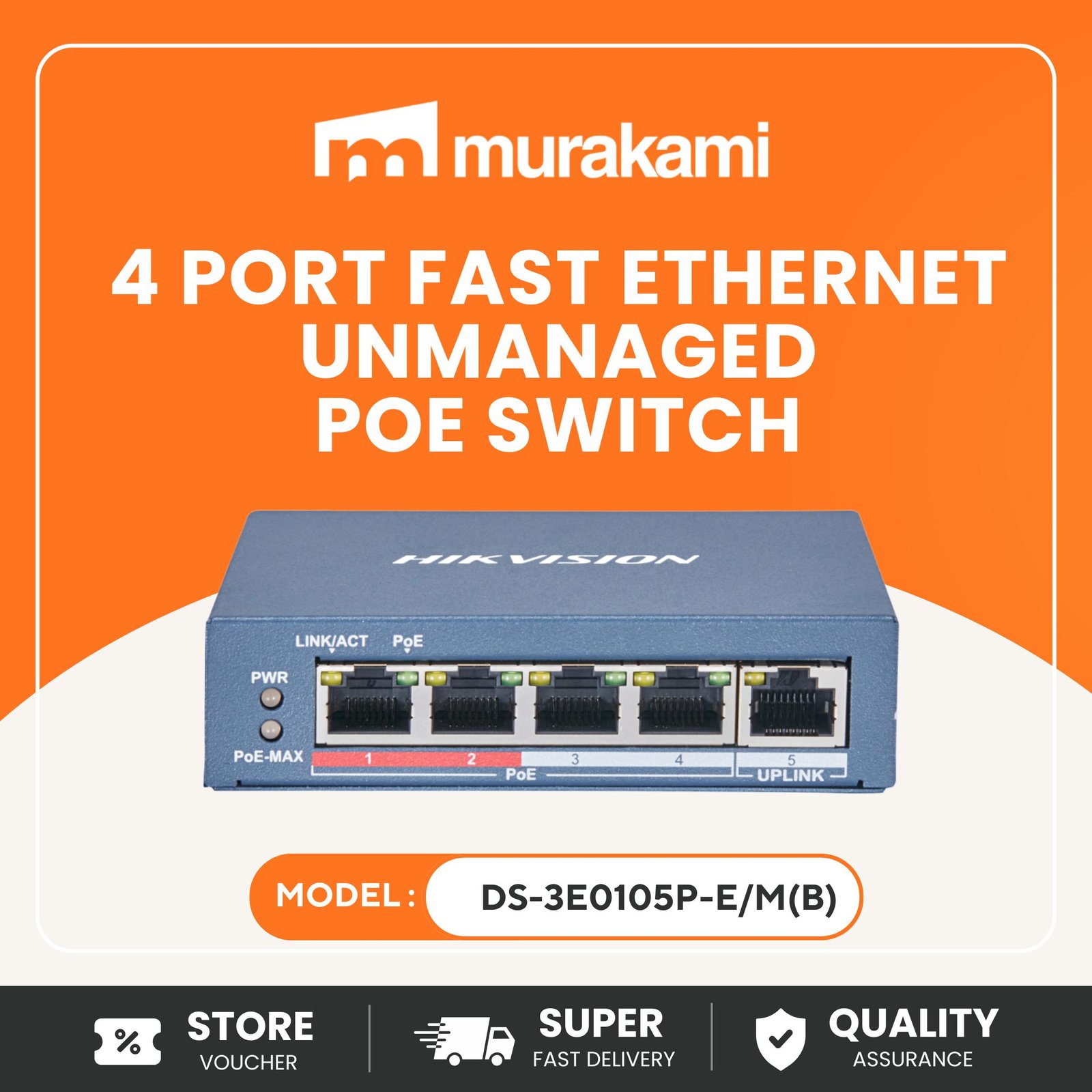

Hikvision Switch 4 Port (DS-3E0105P-E/M)(B)

The Hikvision Switch 4 Port (DS-3E0105P-E/M)(B) is a professional-grade 4-Port Fast Ethernet Unmanaged PoE (Power over Ethernet) Switch designed to simplify the installation and management of IP-based security systems. This switch acts as a central hub for small-scale surveillance setups, providing both high-speed data transmission and electrical power to connected devices through a single network cable. It is widely recognized for its reliability, plug-and-play simplicity, and specialized features that cater specifically to the needs of CCTV environments, making it a staple for residential, small business, and retail security configurations.

The core functionality of the Hikvision Switch 4 Port (DS-3E0105P-E/M)(B) revolves around its 4 PoE ports, which support the IEEE 802.11af/at standards. Each of these ports can deliver up to 30W of power, with a total system power budget of 35W. This allows the switch to power a variety of devices, including IP cameras, access control terminals, and VoIP phones, without the need for separate power adapters or electrical outlets at each device location. By combining power and data into one Ethernet cable, the switch significantly reduces installation costs, minimizes cable clutter, and simplifies the overall architecture of the security network.

One of the standout features of this model is its “Long Range” transmission mode. While standard Ethernet connections are typically limited to 100 meters, the Hikvision Switch 4 Port (DS-3E0105P-E/M)(B) can extend this distance up to 250 meters when the specialized “Extend Mode” is toggled. This is achieved by optimizing the signal and reducing the port speed to 10 Mbps, which is still more than sufficient for high-definition video streams from most IP cameras. This capability is particularly beneficial for large properties, warehouses, or outdoor perimeters where cameras must be mounted far from the central recording station, eliminating the need for expensive signal repeaters or additional mid-span switches.

Efficiency and stability are further enhanced by the switch’s support for “VLAN Isolation” (Virtual Local Area Network). In this mode, the four PoE ports are isolated from each other while still being able to communicate with the uplink port. This is a critical security and performance feature; it prevents “broadcast storms” where network traffic from one camera overwhelms the others and protects the system from unauthorized access between connected devices. This ensures that the video data remains fluid and uninterrupted, providing a more stable environment for high-stakes security monitoring.

The Hikvision Switch 4 Port (DS-3E0105P-E/M)(B) is built with a rugged metal housing, designed for durability and efficient heat dissipation. Unlike plastic-cased consumer switches, this metal construction ensures the device can operate reliably in various environments, from climate-controlled offices to more demanding equipment closets. It also features 6kV surge protection for its PoE ports, protecting the switch and the connected expensive cameras from electrical spikes caused by lightning strikes or power fluctuations. This industrial-level protection is essential for ensuring the longevity of a 24/7 security investment.

As an “unmanaged” switch, the Hikvision Switch 4 Port (DS-3E0105P-E/M)(B) offers true plug-and-play convenience. There is no complex software to install and no IP addresses to configure for the switch itself. Users simply connect their cameras and the uplink to an NVR or router, and the switch automatically detects the power requirements and data speeds of the connected devices. This makes it an ideal choice for both professional installers looking for a quick setup and beginners who want a reliable, high-performance network foundation without the steep learning curve of managed networking equipment.

📌 KEY FEATURE

 ✔ 4 High-Priority PoE Ports: Supports IEEE 802.3af/at standards for simultaneous power and data.
✔ 250m Long Range Mode: Extends transmission distance far beyond the standard 100m limit.
✔ 6kV Surge Protection: Built-in safeguarding against electrical spikes and lightning.
✔ VLAN Isolation Support: Enhances network security and prevents traffic congestion.
✔ 35W Total Power Budget: Provides ample power for multiple high-performance IP cameras.
✔ Durable Metal Casing: Industrial-grade housing for superior heat dissipation and longevity.
✔ Fast Ethernet Uplink: Dedicated port for connecting to NVRs or internet routers.
✔ Plug-and-Play Setup: No configuration required for immediate deployment.

📌 BENEFITS The Hikvision Switch 4 Port (DS-3E0105P-E/M)(B) simplifies the complexity of network cabling by providing a reliable, all-in-one power and data solution. Its long-range capability saves significantly on hardware costs by removing the need for extra extenders in large-scale installations. The robust surge protection and metal housing ensure that the system remains operational even in harsh conditions, reducing maintenance downtime. By isolating ports through VLAN, it ensures that your security network is both faster and more secure, providing peace of mind for property owners.

📌 APPLICATIONS

• Small Home CCTV: Powers up to 4 indoor or outdoor IP cameras for total home coverage.

• Retail Store Security: Connects cameras at entrances, aisles, and cash registers to a central NVR.

• Office Networking: Provides power to VoIP phones and access control panels in small offices.

• Large Property Perimeters: Uses the 250m extend mode to reach distant gate or fence cameras.

• Apartment Intercom Systems: Powers and connects building entry points to the main network.

• Warehouse Monitoring: Ideal for mounting cameras in high ceilings or remote corners of a storage facility.

• Temporary Job Sites: A quick and easy way to set up mobile surveillance for construction or events.

📌 CONCLUSION The Hikvision Switch 4 Port (DS-3E0105P-E/M)(B) 4-Port PoE Switch is an essential building block for any modern, IP-based security system. It combines the power of advanced networking features—like long-range transmission and surge protection—with the simplicity of a plug-and-play device. Its rugged design and specialized CCTV modes make it far superior to standard consumer-grade switches for surveillance tasks. For anyone looking to build a stable, efficient, and cost-effective security network, this switch provides the professional performance and durability required to keep a property safe 24/7.
