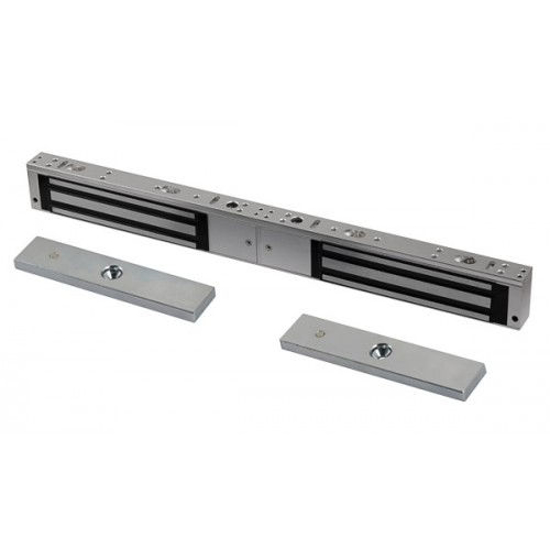

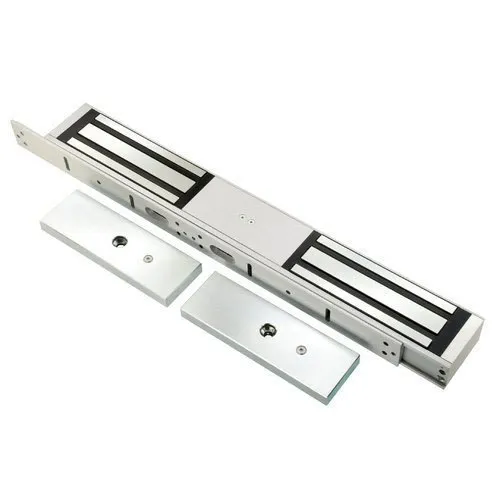

Type: Two‑door magnetic lock (for controlling both leaves of a double‑leaf door)

Holding (thrust) force: 280 kg (617 lbs) × 2 (i.e., 280kg per door leaf)

Power supply: 12 V DC (default) or 24 V DC supported.

Current draw: 340 mA × 2 (at 12 V)

Suitable door types: Wooden door, glass door, metal door, fireproof door (single‑leaf or double‑leaf)

Dimensions (Lock Body): 500 mm × 45 mm × 25 mm (≈19.7″ × 1.8″ × 1.0″)

Dimensions (Armature Plate): 182 mm × 38 mm × 12.5 mm (≈7.2″ × 1.5″ × 0.5″)

Weight: 4.2 kg (≈9.3 lbs)

Unlock method: Current interruption (i.e., lock releases when power is cut)

Surface temperature: Maximum temperature rise is ambient +20 °C (≤ ambient +20 °C)

Working temperature: −10 °C to +55 °C (14 °F to 131 °F)

Working humidity: 0 % to 95 % RH (relative humidity)

Materials/finishes:

• Shell: hard anodizing electroplated

• Lock body: eco‑friendly nickel electroplated

• Armature plate: eco‑friendly zinc electroplated

Indicator: Green LED indicating “working status”

Certification / series: Part of Hikvision “Value Series” (access‑control category)
