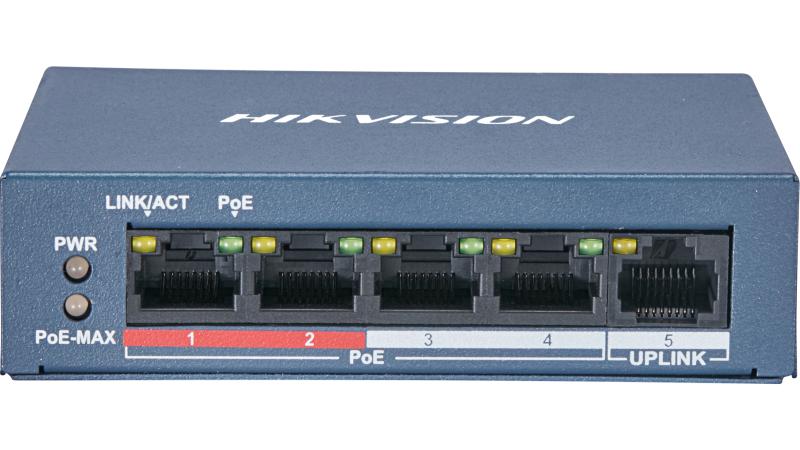

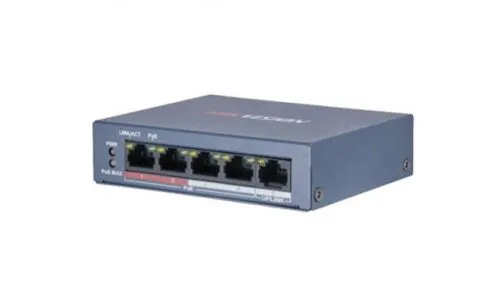

Switch 4 Port (DS-3E0105P-E/M(B)
Switch 4 Port (DS-3E0105P-E/M(B) - Image 2
Switch 4 Port (DS-3E0105P-E/M(B) - Image 3
2 in stock

Switch 4 Port (DS-3E0105P-E/M(B)

SKU: DS-3E0105P-E/M(B)
Category: ,
Original price was: ₱3,348.00.Current price is: ₱1,336.72.

Model:DS-3E0105P-E/M(B)

Features

  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
  • 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  • Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

2 in stock

  • General
  • ShellMetal material
  • Net Weight0.2 kg (0.4 lb)
  • Gross Weight0.48 kg (1.06 lb)
  • Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
  • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 0.8 A
  • Max. Power Consumption38 W
  • Power Consumption in Idle3 W
  • Installation ModeDesk-Mounted,Wall-Mounted
  • Surge Protection6 KV
  • Network Parameters
  • Ports4 x 10/100 Mbps PoE port,1× 10/100 Mbps RJ45 port
  • MAC Address Table2 K
  • Switching Capacity1 Gbps
  • Packet Forwarding Rate0.74 Mpps
  • Internal Cache768 Kbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af;IEEE 802.3at
  • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE PortPoE: Ports 1 to 4
  • Max. Port Power30 W
  • PoE Power Budget35 W
  • Dialing Function
  • Long Range

    Ports 1 to 4 : up to 300 m.

    Long range performance may vary depend on camera model or cable condition.

  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Chemistry

    CE-RoHS (201165EU);

    WEEE (201219EU);

    Reach (Regulation (EC) No.19072006)
