The Hikvision DS-3E0106P-E/M is a compact and durable 4-port PoE network switch designed to deliver stable power and data transmission for IP surveillance systems and small network installations. Built with a strong metal housing, it ensures long-term reliability, heat resistance, and stable performance in various environments.
With support for IEEE 802.3af/at PoE standards, up to 35W PoE budget, and 300-meter long-range transmission, this switch is ideal for powering IP cameras in residential, commercial, and small industrial CCTV setups.
Durable Metal Housing with Fanless Design

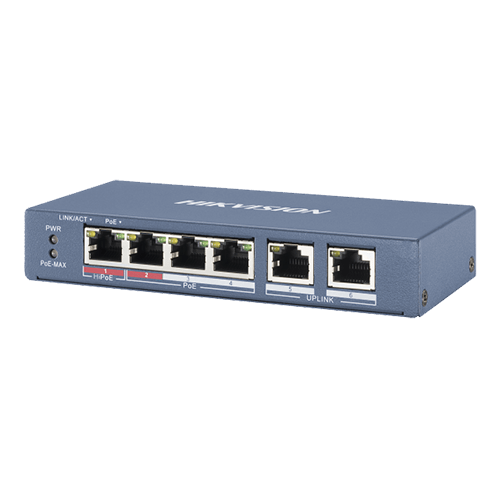

The Hikvision DS-3E0106P-E/M is built with a solid metal shell, providing excellent durability and protection for internal components.
Build Advantages:
- Strong metal casing for long-term stability
- Fanless design for silent operation
- Improved heat dissipation performance
- Compact and lightweight structure
This ensures reliable operation even in continuous 24/7 surveillance environments.
4-Port PoE for IP Camera Connectivity

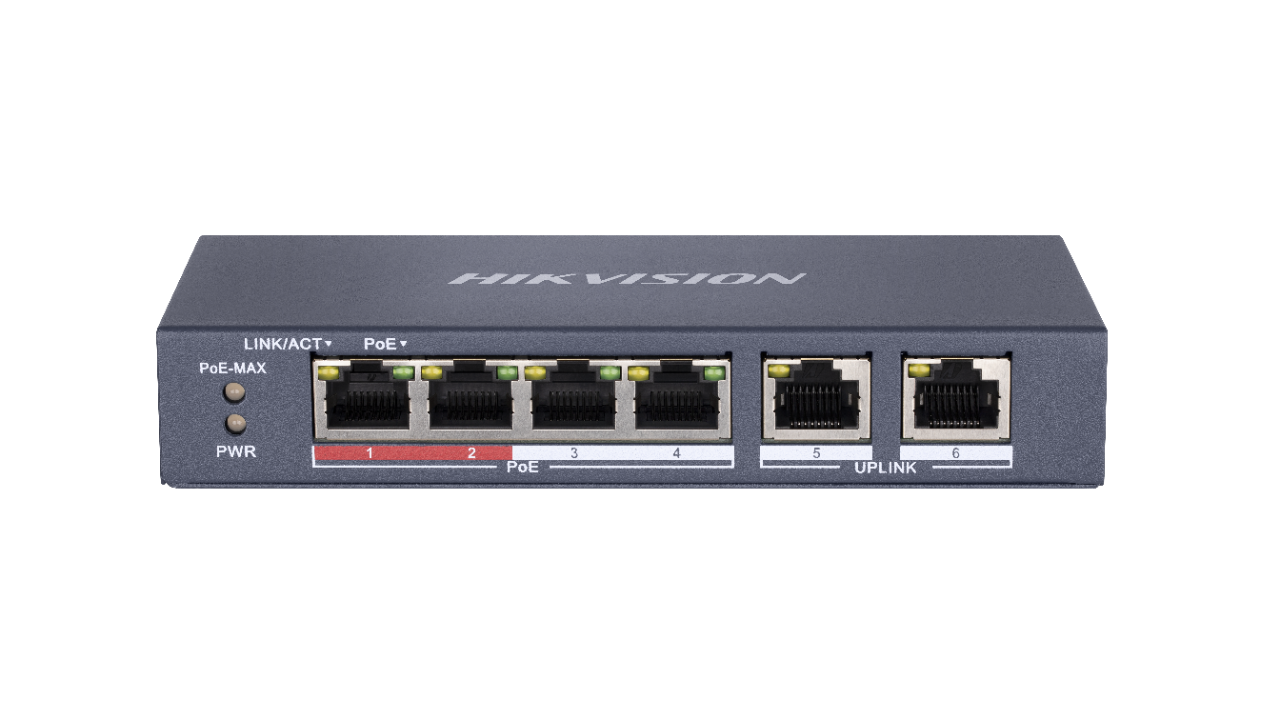

Hikvision DS-3E0106P-E/M switch is designed with 4 PoE-enabled Fast Ethernet ports and 2 additional uplink RJ45 ports, making it suitable for small to medium CCTV systems.
Port Configuration:
- 4 × 10/100 Mbps PoE ports
- 2 × 10/100 Mbps RJ45 uplink ports
- Supports IP cameras, NVRs, and network devices
It allows users to power multiple cameras using a single network switch, reducing installation complexity.
Efficient Power Delivery with 35W PoE Budget
The Hikvision DS-3E0106P-E/M supports a total PoE power budget of 35 watts, providing sufficient power for multiple IP cameras.
Power Features:
- IEEE 802.3af/at compliant
- Maximum 30W per PoE port
- Total PoE budget: 35W
- Stable power delivery for surveillance devices
This ensures reliable operation of standard IP cameras in small-scale installations.
Long-Range Transmission up to 300 Meters
One of the key highlights of this switch is its extended transmission mode, supporting distances up to 300 meters.
Long-Range Benefits:
- Up to 300m transmission on PoE ports (1–4)
- Ideal for large properties and outdoor installations
- Reduces need for additional extenders or repeaters
- Maintains stable data and power delivery over distance
This feature is especially useful in CCTV systems covering wide areas.
Advanced Surge Protection for Device Safety
The Hikvision DS-3E0106P-E/M switch is equipped with 6KV surge protection, helping safeguard connected devices from electrical damage.
Protection Benefits:
- Protects IP cameras from voltage spikes
- Enhances system reliability in unstable power environments
- Reduces risk of hardware failure
- Ideal for outdoor or industrial installations
This ensures long-term system stability and safety.
Smart VIP Port Function for Priority Traffic
The Hikvision DS-3E0106P-E/M includes VIP port functionality, which prioritizes data transmission for selected ports.
VIP Features:
- Ports 1–2 support priority data forwarding
- Ensures smooth video transmission for key cameras
- Reduces lag during network congestion
- Improves performance for critical surveillance feeds
This is useful for ensuring important cameras always receive stable bandwidth.
High Network Performance and Stability
The Hikvision DS-3E0106P-E/M switch is designed to deliver efficient and stable network performance for surveillance systems.
Technical Performance:
- Switching capacity: 1.2 Gbps
- Packet forwarding rate: 0.89 Mpps
- MAC address table: 2K entries
- Store-and-forward switching method
This ensures smooth and uninterrupted video transmission.
Easy Installation and Flexible Deployment
The Hikvision DS-3E0106P-E/M is designed for quick and simple installation in various environments.
Installation Options:
- Desktop placement
- Wall-mounted installation
- Plug-and-play setup (no configuration required)
Its compact size allows easy integration into small network setups.
Reliable Long-Term Operation
The Hikvision DS-3E0106P-E/M switch is built for continuous operation with minimal maintenance requirements.
Reliability Features:
- Fanless cooling system for silent operation
- Low power consumption design
- Stable metal body construction
- Designed for 24/7 surveillance systems
This ensures consistent performance over long periods.
Environmental Durability
The Hikvision DS-3E0106P-E/M is engineered to operate in a wide range of environmental conditions.
Operating Conditions:
- Temperature: 0°C to 40°C
- Humidity: 5% to 95% (non-condensing)
- Storage temperature: -40°C to 85°C
This makes it suitable for indoor and semi-protected installations.
Ideal Applications
The Hikvision DS-3E0106P-E/M is suitable for various networking and surveillance scenarios.
Common Uses:
- Home CCTV security systems
- Small business surveillance networks
- Retail shops and offices
- Warehouses and storage facilities
- IP camera installations
Its simplicity and reliability make it a practical networking solution.
Key Features Summary
- 4 × 10/100 Mbps PoE ports + 2 uplink ports
- 35W total PoE power budget
- IEEE 802.3af/at support
- Up to 300m long-range transmission
- 6KV surge protection
- Metal housing with fanless design
- VIP port priority function
- Plug-and-play installation
- Ideal for IP camera systems
Conclusion
The Hikvision DS-3E0106P-E/M PoE Switch is a compact, durable, and efficient networking solution designed for small to medium surveillance systems. With its metal body construction, long-range 300m PoE capability, and stable 35W power budget, it ensures reliable operation for IP cameras and network devices.
Its easy installation, surge protection, and intelligent traffic prioritization make it an excellent choice for building dependable and cost-effective CCTV networks in residential and commercial environments.
