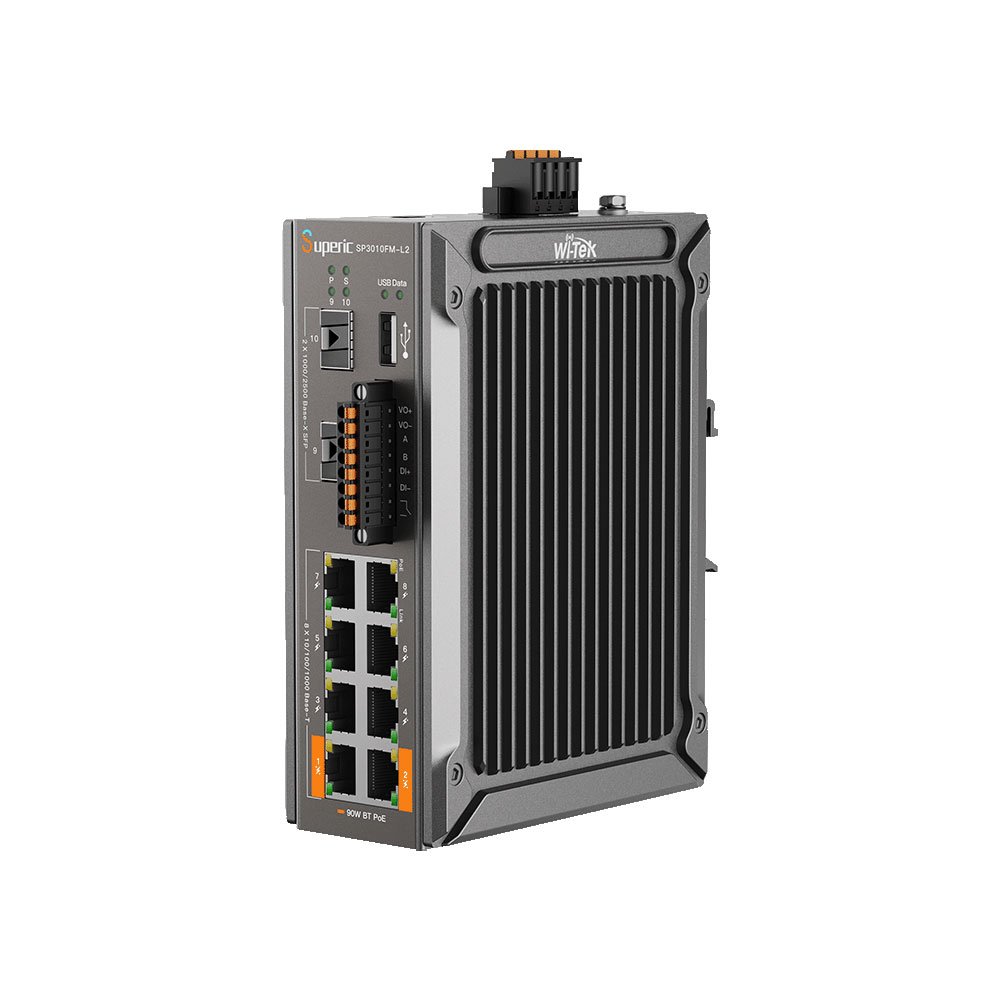

The Wi-Tek SP3012FM-L2 V3 is an industrial L2+ managed PoE++ switch designed for CCTV, surveillance, industrial networking, and other demanding network applications. It provides 8 × 10/100/1000Mbps PoE RJ45 ports. Ports 1–2 support IEEE 802.3af/at/bt with up to 90W per port, while ports 3–8 support IEEE 802.3af/at with up to 30W per port. The switch has a 240W total PoE budget. For high-speed uplinks, it includes 4 × 1000M/2.5G SFP slots. It offers 36Gbps switching capacity and 26.8Mpps forwarding performance. Advanced management features include VLAN, QinQ, port mirroring, STP/RSTP/MSTP, IGMP, QoS, DHCP, multicast, ACL, LLDP, 802.1X, DDM, PoE management, IPv6 management, and G.8032 ERPS for network redundancy. Built for harsh environments, the SP3012FM-L2 V3 supports -40°C to 75°C operation, 6kV surge protection, 15kV ESD protection, redundant 44–57V DC power input, and fanless operation. It also supports RS485, DI, relay, and temperature/humidity detection.

Key Features

• Industrial L2+ Managed PoE++ Switch
• 8× Gigabit PoE RJ45 Ports
• 2× PoE++ Ports – Up to 90W Each
• 6× PoE+ Ports – Up to 30W Each
• 240W Total PoE Budget
• 4× 1G/2.5G SFP Uplink Slots
• 36Gbps Switching Capacity
• 26.8Mpps Forwarding Rate
• 16K MAC Address Table
• VLAN, QinQ & Port Mirroring
• STP/RSTP/MSTP
• G.8032 ERPS Network Redundancy
• IGMP & QoS
• ACL & 802.1X Security
• PoE Management
• RS485, DI & Relay Interfaces
