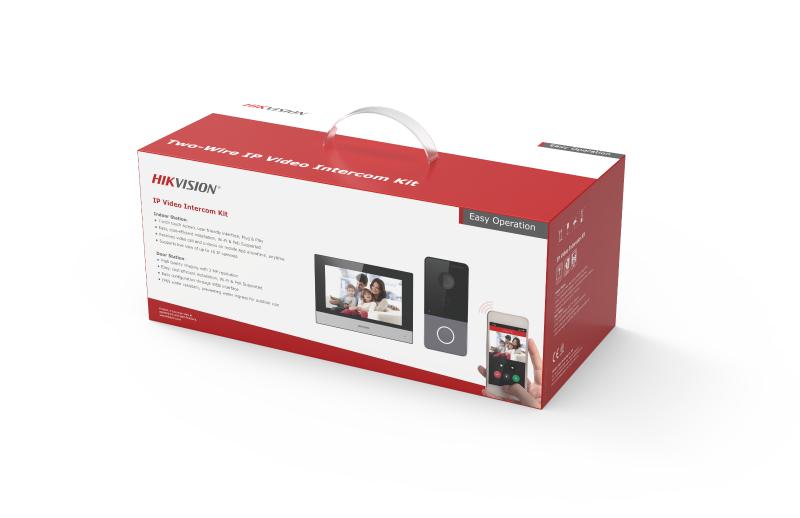

The Hikvision DS-KIS603-P (C) IP Video Intercom Kit is a complete and advanced security communication solution designed for villas, residential homes, and small commercial properties. Developed by Hikvision, this system combines high-definition video monitoring, clear two-way audio communication, and network-based access control into a single integrated package. It enhances property security by allowing users to visually verify and communicate with visitors before granting access, improving both convenience and safety.

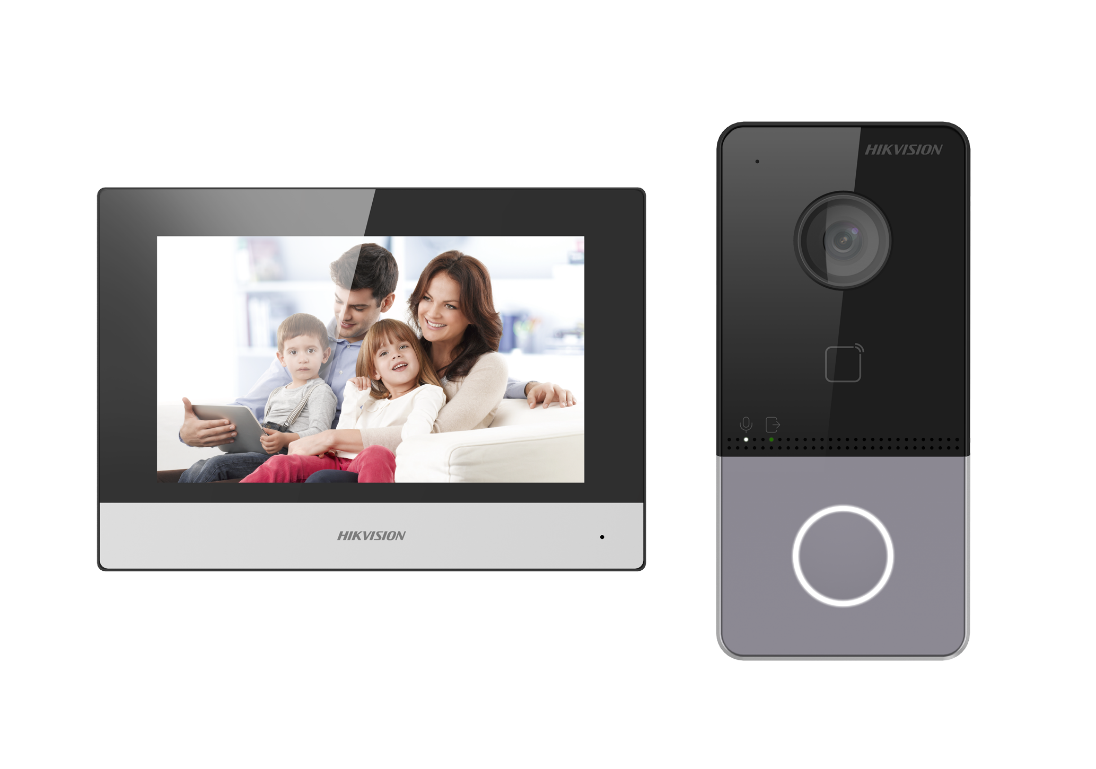

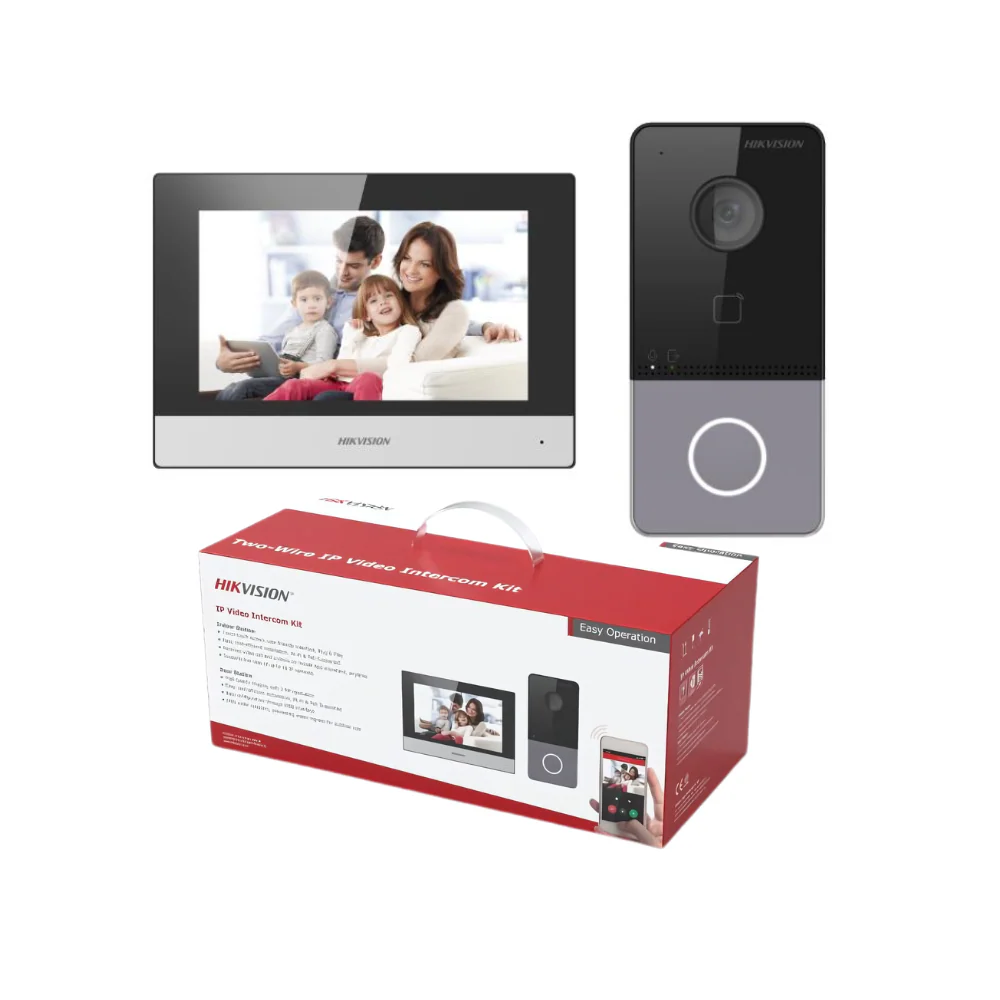

The Hikvision DS-KIS603-P includes a 2MP HD door station, a 7-inch indoor touch monitor, and supporting power components, all working together to create a reliable IP-based intercom network. With its single-button calling design, the system is simple to operate while still delivering professional-grade surveillance and communication features.

Door Station – High-Definition Video and Security Monitoring

The Hikvision DS-KIS603-P is equipped with a 2MP HD camera that delivers clear and detailed video for visitor identification. It supports multiple advanced imaging technologies that ensure stable performance in different lighting conditions.

Key video features include:

• 1920 × 1080 Full HD resolution
• True WDR for balanced lighting in high-contrast scenes
• Digital noise reduction for clear imaging
• Backlight compensation for bright background environments
• IR night vision up to 3 meters for low-light conditions

The wide field of view enhances visibility:

• Horizontal: 131°
• Vertical: 78°

This wide-angle coverage ensures that visitors are clearly visible even if they stand at the edge of the camera range.

Video Compression and Streaming Performance

The Hikvision DS-KIS603-P supports efficient video processing for smooth transmission and recording.

Supported formats include:

• H.264
• H.265
• MJPEG

Streaming performance:

• Main stream: 1080p @ 25fps / 720p @ 25fps
• Sub stream: 720p @ 25fps / 480p @ 25fps

This ensures stable remote viewing with optimized bandwidth usage.

Audio Communication System

The Hikvision DS-KIS603-P system includes high-quality audio components for clear communication between visitors and occupants.

Audio features include:

• Built-in omnidirectional microphone
• Built-in loudspeaker
• Noise suppression and echo cancellation
• Multiple audio codec support (G.711, G.726, AAC, OPUS, G.722.1)
• Audio compression rate: 64 Kbps

This ensures clear voice transmission even in noisy environments.

Network and Connectivity Features

The Hikvision DS-KIS603-P supports modern IP networking standards for flexible integration and remote access.

Network capabilities include:

• TCP/IP, RTSP, IPv6, ONVIF support
• 10/100 Mbps Ethernet connection
• PoE (IEEE 802.3af) support
• Remote monitoring and system integration

These features allow easy connection to existing security infrastructure.

Door Station Interfaces and Durability

The Hikvision DS-KIS603-P door station is designed for outdoor reliability with multiple interfaces and strong protection.

Interfaces include:

• RS-485 communication port
• 4 alarm inputs
• Debugging port
• Tamper switch

Durability features:

• IP65 weather-resistant protection
• Operating temperature: -40°C to 53°C
• Surface mounting installation
• Power consumption: < 10W

This ensures stable operation in harsh outdoor environments.

Indoor Station – Smart Control and Display

The Hikvision DS-KIS603-P indoor monitor provides an intuitive interface for managing visitors and system functions.

Display features include:

• 7-inch color TFT touchscreen
• Resolution: 1024 × 600
• Capacitive touch control

Audio features:

• Built-in microphone and speaker
• Noise suppression and echo cancellation
• G.711 audio compression

Connectivity:

• Wi-Fi (802.11 b/g/n)
• Ethernet (10/100 Mbps)
• SIP and RTSP protocol support

Additional interfaces:

• 8-channel alarm inputs
• 2 relay outputs
• TF card support up to 32GB

System Performance and Operation

The Hikvision DS-KIS603-P runs on an embedded Linux operating system, ensuring stable and secure performance for both indoor and outdoor stations. It supports multiple communication protocols including SIP, TCP/IP, and RTSP, making it suitable for integration with modern smart security systems.

Power consumption is highly efficient:

• Door station: ≤ 10W
• Indoor station: ≤ 6W

Applications

The DS-KIS603-P system is widely used in:

• Villas and private residences
• Apartments and gated communities
• Small office buildings
• Security entry points
• Residential access control systems

It is ideal for environments where secure visitor verification and controlled access are required.

Key Features

• 2MP HD video door station
• 7-inch touchscreen indoor monitor
• PoE and 12V DC power support
• Wide-angle camera (131° horizontal view)
• IR night vision up to 3 meters
• Two-way audio communication
• IP65 weather protection
• Wi-Fi and Ethernet connectivity
• Multi-protocol network support
• Easy surface-mounted installation

Conclusion

The Hikvision DS-KIS603-P (C) IP Video Intercom Kit is a powerful and user-friendly security communication system that combines HD video, clear audio, and smart network connectivity. With its durable design, advanced imaging capabilities, and seamless indoor-outdoor communication, it provides a reliable solution for modern residential and small commercial security needs, ensuring safety, convenience, and efficient access control at all times.
