Hikvision (TVI-8CH4D4B-2MP-ColorVu)

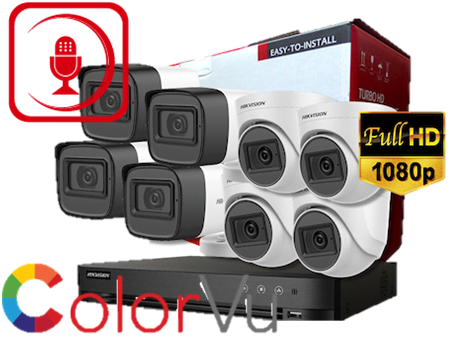

The Hikvision (TVI-8CH4D4B-2MP-ColorVu) kit is a high-performance, professional surveillance package designed for comprehensive 24/7 color monitoring. By combining the intelligent AcuSense DVR with ColorVu Two-Way Audio cameras, this kit provides not only high-definition recording but also audible evidence and deep-learning analytics to minimize false alarms. The kit is balanced with four bullet cameras for outdoor perimeters and four turret cameras for indoor or sheltered areas, all featuring a 3.6mm lens for a perfect balance between wide-angle coverage and detail at a distance.

## 1. The Core: iDS-7208HQHI-M1/E (AcuSense DVR)

Hikvision (TVI-8CH4D4B-2MP-ColorVu) the iDS-7208HQHI-M1/E is an 8-channel “Smart” DVR that serves as the brain of the system. Its primary advantage is AcuSense technology, which uses deep-learning algorithms to distinguish between human/vehicle targets and “noise” like rain, leaves, or animals.

• Intelligent Analytics: Supports human and vehicle detection across all channels to drastically reduce false motion alerts.

• High-Efficiency Compression: Uses H.265 Pro+, which saves up to 75% on storage space and bandwidth compared to standard H.264, allowing for much longer recording histories on a single hard drive.

• Hybrid Versatility: Supports 5 signals adaptively (TVI/AHD/CVI/CVBS/IP) and can accept up to 12 IP cameras if needed.

• Audio over Coax (AoC): Supports synchronized audio and video recording from all eight cameras through the same BNC cables.

## 2. Outdoor Surveillance: DS-2CE10DF3T-PFS (3.6mm) × 4

Hikvision (TVI-8CH4D4B-2MP-ColorVu) These are 2 MP ColorVu Fixed Mini Bullet Cameras designed for the exterior. Unlike standard cameras that switch to black-and-white at night, these maintain a full-color image 24/7.

• F1.0 Super Aperture: Collects 4x the light of standard cameras, enabling color imaging in near-total darkness.

• 3.6mm Lens: Provides a horizontal field of view of 77°. This is tighter than a 2.8mm lens, offering better “reach” and detail for identifying faces or license plates in driveways.

• Built-in Microphone: Captures high-quality audio that is transmitted via the coaxial cable to the DVR.

• 130 dB True WDR: Ensures clear images in high-contrast lighting, such as a shaded porch against a bright sunlit street.

• IP67 Weatherproof: Fully protected against heavy rain, dust, and extreme temperatures.

## 3. Indoor Surveillance: DS-2CE70DF3T-PFS (3.6mm) × 4

Hikvision (TVI-8CH4D4B-2MP-ColorVu) These 2 MP ColorVu Fixed Turret Cameras are optimized for indoor environments like lobbies, retail floors, or hallways.

• Vivid Color 24/7: Ensures that clothing colors and facial features are accurately recorded even in low-light indoor settings.

• Dual-Light Support: Features a warm white light supplement (up to 20m) that can be set to provide light only when needed.

• Integrated Audio: The built-in mic ensures that transaction areas or entryways are monitored for both sound and video.

• Wide-Angle Detail: The 3.6mm lens provides an 83° field of view in the turret housing, perfect for covering large rooms or long corridors with high clarity.

## Kit Summary Table

## Conclusion

This Hikvision (TVI-8CH4D4B-2MP-ColorVu) kit is a premier “Audio-Visual” security solution. It moves beyond simple video by adding high-fidelity audio and 24/7 color, ensuring that whether it is noon or midnight, your evidence is clear and actionable. The inclusion of the AcuSense DVR makes this a proactive system, allowing you to focus on real security threats while ignoring environmental false alarms.
